TRACTOR--MODELNUMBER 917.272420

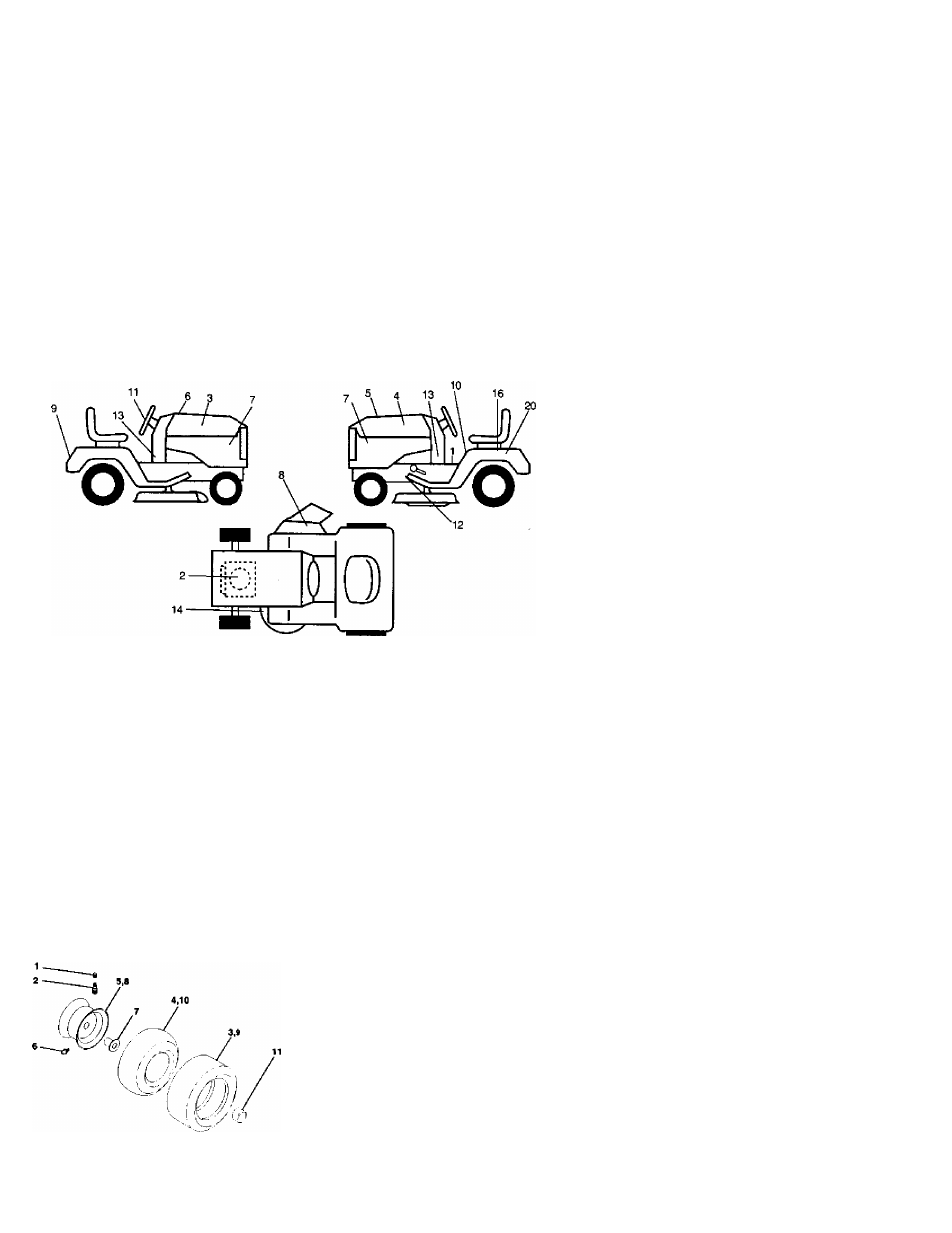

DEÇALS
KEY PART
KEY PART
NO. NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156811
Decal, Open Instr.
11
164065
Decal, Stmg. WhI. Domed Prem, Srs
2
177374
Decal, HP Engine
12
146046
Decal, V-Belt Drive Schematic
3
177356
Decal, Hood, R.H,
13
177350
Decal, Lower Dash
4
177357
Decal, Hood, L.H.
14
160396
Decal, V-Belt Schematic
5
177805
Decal Hood Replacement
16
138047
Decal, Battery Diehard
6
133644
Decal, Customer Maintenance
20
149516
Decal, Battery Dngr/Psn Eng
7
177355
Decal, Hood Side
- -
138311
Decal, Lift Handle
8
172331
Decsrt, Deck
- -
165800X428
Pad Footrest LH STLT
9
163204
Decal, Fender, Craftsman
- -
165799X428
Pad Footrest RHSTLT
10
156439
Decal, Fender Danger
- -
169210
Decal By Pass LT Hydro
- -
177411
Owner's Manual, English
■ -
177412
Owner's Manual, Spanish
WHEELS & TIRES
KEY PART
NO. NO.
DESCRIPTION
1
59192
Valve Cap, Tire
2
65139
Stem, Valve
3
106222X
Tire, Front
4
59904
Ttibe, Front Tire
{Not Provided, Service Item Only)
5
106732X427 Rim, Front
6
278H
Fitting, Grease (Front Wheel Only)
7
9040H
Bearing, Flange (FrontWheel
Only)
8
106108X427 Rim, Rear
9
122082X
Tire, Rear
10
7152J
Tube, Rear Tire
(Not Provided, Service Item Only)
11
104767X428 Cap, Axle
--
144334
Sealant, Tire 10 oz.
NOTE: All component dimensions given In U.S.
inches 1 inch = 25.4 mm
