ASSEMBLY
Read these instructions and this manual in its
entirety before you attempt to assemble or
operate your new trimmer.
IMPOFITANT: This trimmer is shipped
WITHOUT OIL OR GASOLINE in the engine.
Your new trimmer has been assembled at the
factory with the exception of those parts left
unassembled for shipping purposes. All parts
such as nuts, washers, bolts, etc., necessary
to complete the assembly have been placed
in the parts bag. To ensure safe and proper
operation of your trimmer, all parts and
hardware you assemble must be tightened
securely. Use the correct tools as necessary
to ensure proper tightness.

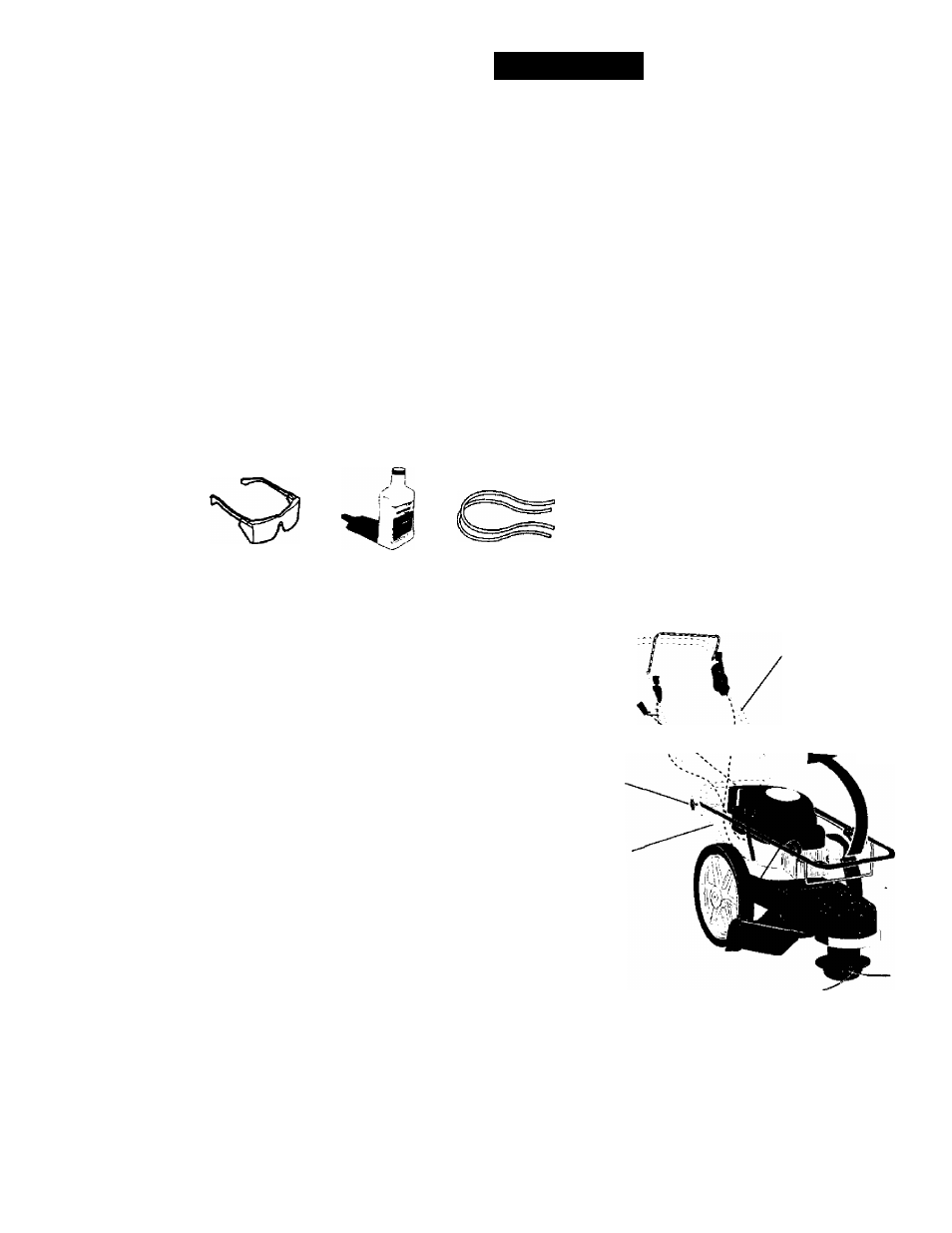

Loose Parts Packed Separately
Safety
Goggles
20 02 .
Bottle of oil
Trimmer Lines
(2) Sets
(0.155 diameter
X 18.75 inches long)
TO REMOVETRIMMER FROM CARTON
• Remove loose parts included with trimmer.
• Cut down two end corners of carton and
lay end panel down flat.
• Remove all packing materials.
• Roll trimmer out of carton and check carton
thoroughly for additional loose parts.
HOWTO SET UPYOURTRIMMER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so as
not to pinch or damage control cables.
1. Loosen handle knob enough to allow
upper handle to be unfolded from the
shipping position.
2. Raise upper handle section into place
on lower handle and tighten handle
knob.
3. Remove handle padding holding
trimmer head control bar to upper
handle.
Your trimmer handle can be adjusted for
your trimming comfort. Refer to "Adjust
Handle" in the Service and Adjustment
section of this manual.
Upper handle
Lift up
Handle knob
Lower handle
