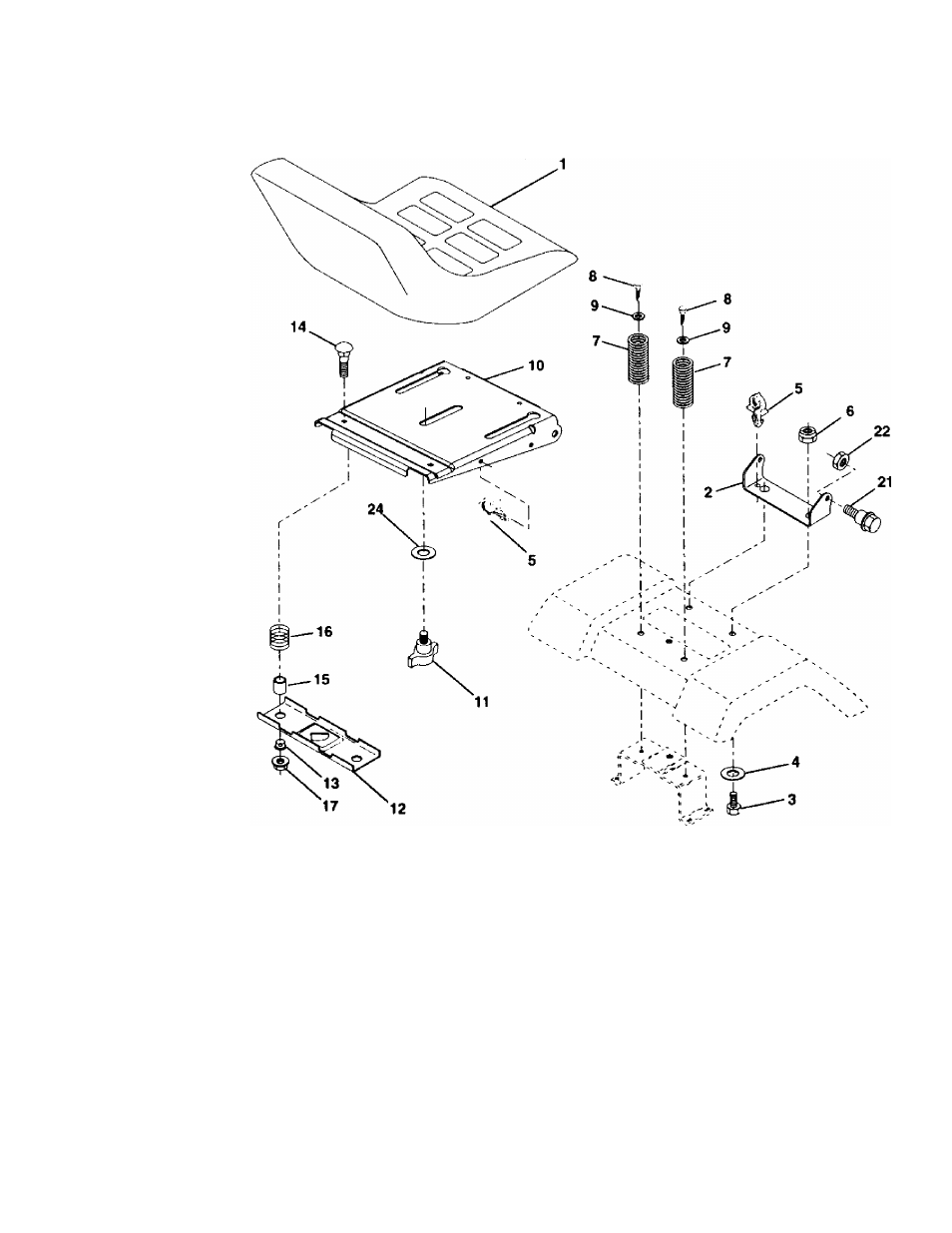

SEAT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 180597 Seal 13 121248X Bushing. Snap
2 180166 Bracket. Pivot, Seat 14 72050412 Bolt, Carriage 1/4-20x1-1/2
3 71110616 Bolt 15 134300 Spacer. Spiit .28 x .88
4 19131610 Washer 13/32 x 1 x 10 Gauge 16 121250X Spring
5 145006 Clip, Push-In Hinged 17 123Э76Х Locknut, Flange 1/4 Grade 5
6 STD541437 Nut 21 171852 Bolt, Shoulder 5/16-18 UNC
7 124181X Spring, Seat 22 STD541431 Nut
8 17000616 Screw 3/8-16 X 1-1/2 24 19171912 Washer 17/32x1-3/16x12'
9
10
11
19131614
180186
166369 Washer 13/32 x 1 x 14 Gauge
Pan, Seat
Knob Seat
NOTE: Ail component dimensions given in U S.
12 121246X Bracket, Switch Mounting inches 1 inch = 25.4 mm
