Assemble Tractor Lift

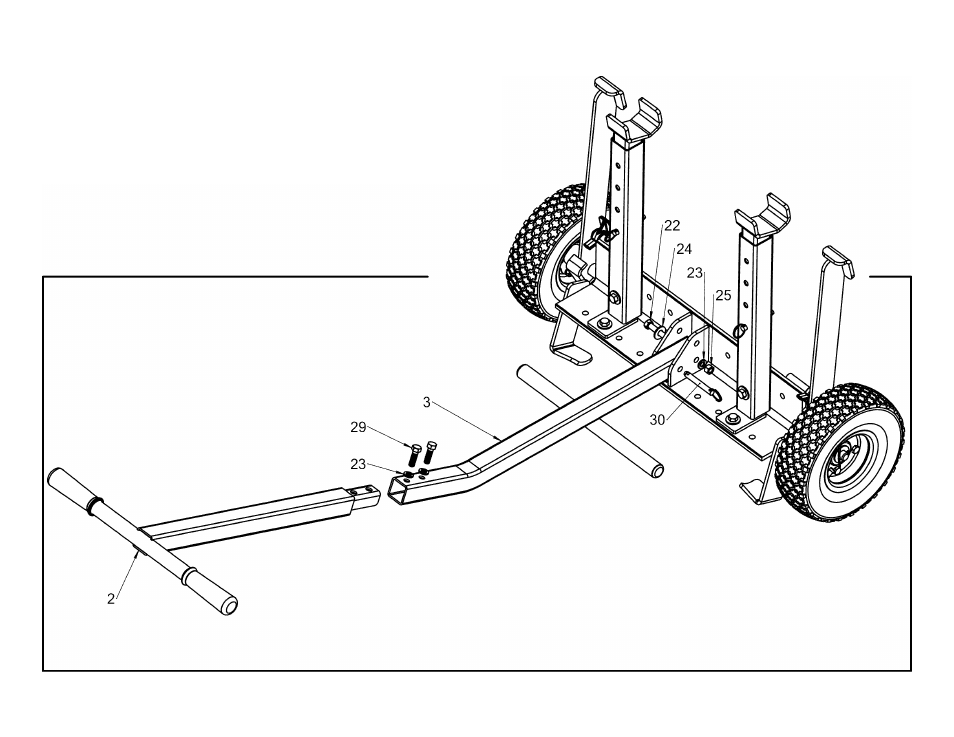

Attach Handle to Angle Frame

Step 1.

Step 2.

Step 3.

Attach handle bottom ( 3 ) to angle frame (1 ) using hex bolt ( 22 ),

flat washer ( 24 ), split lock washer ( 23 ) and hex nut (25 ).

Insert ring grip pin ( 30 ), as shown.

Insert handle top ( 2 ) into handle bottom ( 3 ). Secure with hex
bolts ( 29 ) and split lock washer ( 23 ).

FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T.
