TRACTOR - MODEL NUMBER 917.271653

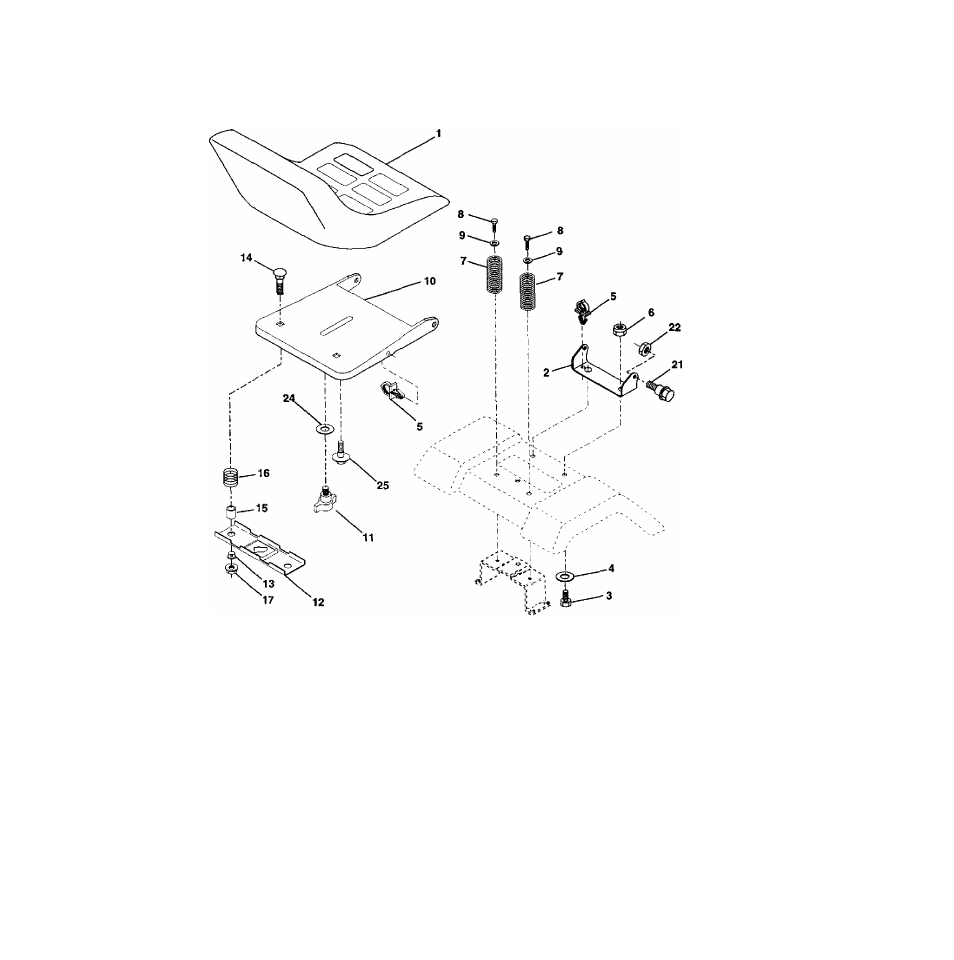

SEAT ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
140122
Seat
13
121248X
Bushing Snap Btk Nyl 50 Id
2
140551
Bracket Pnt Pivot Seal (bik)
14
72050412
Bolt Rdhd Sht Nk 1/4-20x1-1/2
3
71110616
Bolt Fin Hex 3/8-16unc X 1
15
134300
Spacer Split 28 X 96 Zinc
4
19131610
Washer 13/32 X 3/4 X 10 Ga
16
121250X
Spring Cprsn 1 27 Bik Pnt
5
145006
Clip Push In Hinged
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
6
STD541437 Nut Hex Lock w/ins 3/8-16 Unc
21
171852
Bolt Shoulder 5/16-18 Unc-2A
7
1241 SIX
Spring Seal Cprsn 2 250 BIk Zi
22
STD541431 Nut Hex Lock w/lns 5/16-18
8
17000616
Screw 3/8-16 X 1 -1/2
24
19171912
Washer 17/32 X 1 -3/16 X 12 Ga
9
19131614
Washer 13/32 X 1 X 14Ga
25
127018X
Bolt Shoulder 5/16-18 X 62
10
11
1B2493
166369
Pan Pnt Seat (bik )
Knob Seat
NOTE: All component dimensions given in U.S. inches
12
121246X
Bracket Pnt Mounting Switch
1 inch = 25.4 mm
