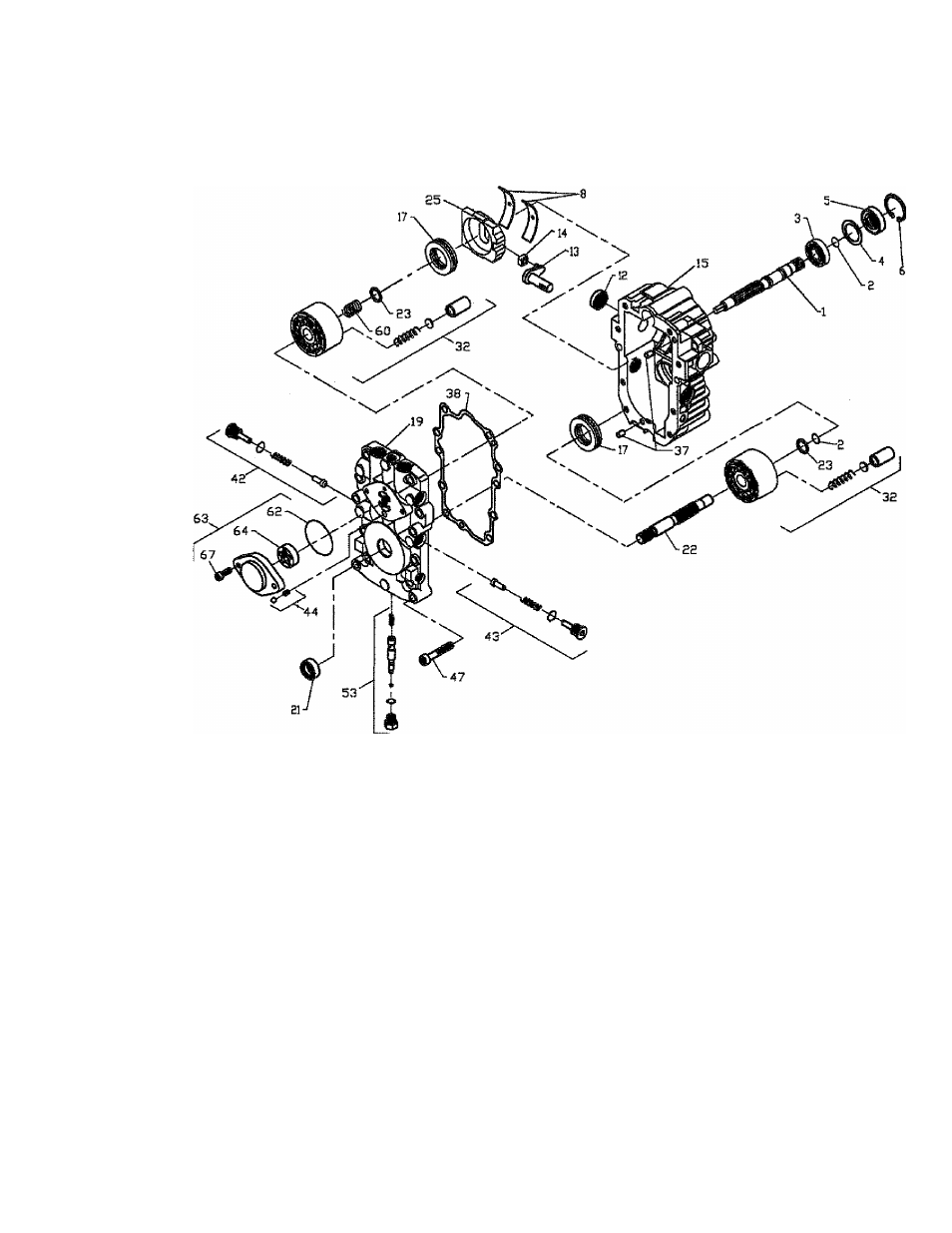

TRACTOR - MODEL NUMBER 917.273062
TRANSAXLE-MODEL NUMBER 222-301OL
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 144569 Shaft, Pump 25 127148X Swashplate, Variable
2 122716X Ring, Retaining 32 142938 Block Assembly
3 122745X Bearing, Ball 37 122786X Pin, Stainless, Headless
4 122715X Spacer 38 122718X Gasket, Center Section
5 122700X Seal, Lip 42 144578 Check Vaive Kit
6 122699X Ring, Retaining 43 144578 Check Valve Kit
8 122767X Bearing, Cradle 44 144579 Charge Relief Kit
12 122717X Seal, Lip 47 122752X Screw, Socket Head, Cap
13 122748X Arm, Trunnion 53 127153X Bypass Vaive Kit
14 122749X Guide, Slot 60 142977 Block Spring
15 144571 Housing Kit, Transmission 62 144581 O-Ring
17 122770X Bearing, Thrust, Ball 63 144582 Charge Pump Kit
19 153801 Center Section Kit 64 144583 Gerotor Assembly
21 122722X Seal, Lip 67 144584 Screw, Socket Head, Cap
22 144573 Shaft, Motor
. . 153769 Pump Assembly, Complete
23 142978 Washer, Block Thrust
56
