Craftsman 917.274750 - Manual (Page 45)

TRACTOR - - MODEL NUMBER 917.274750

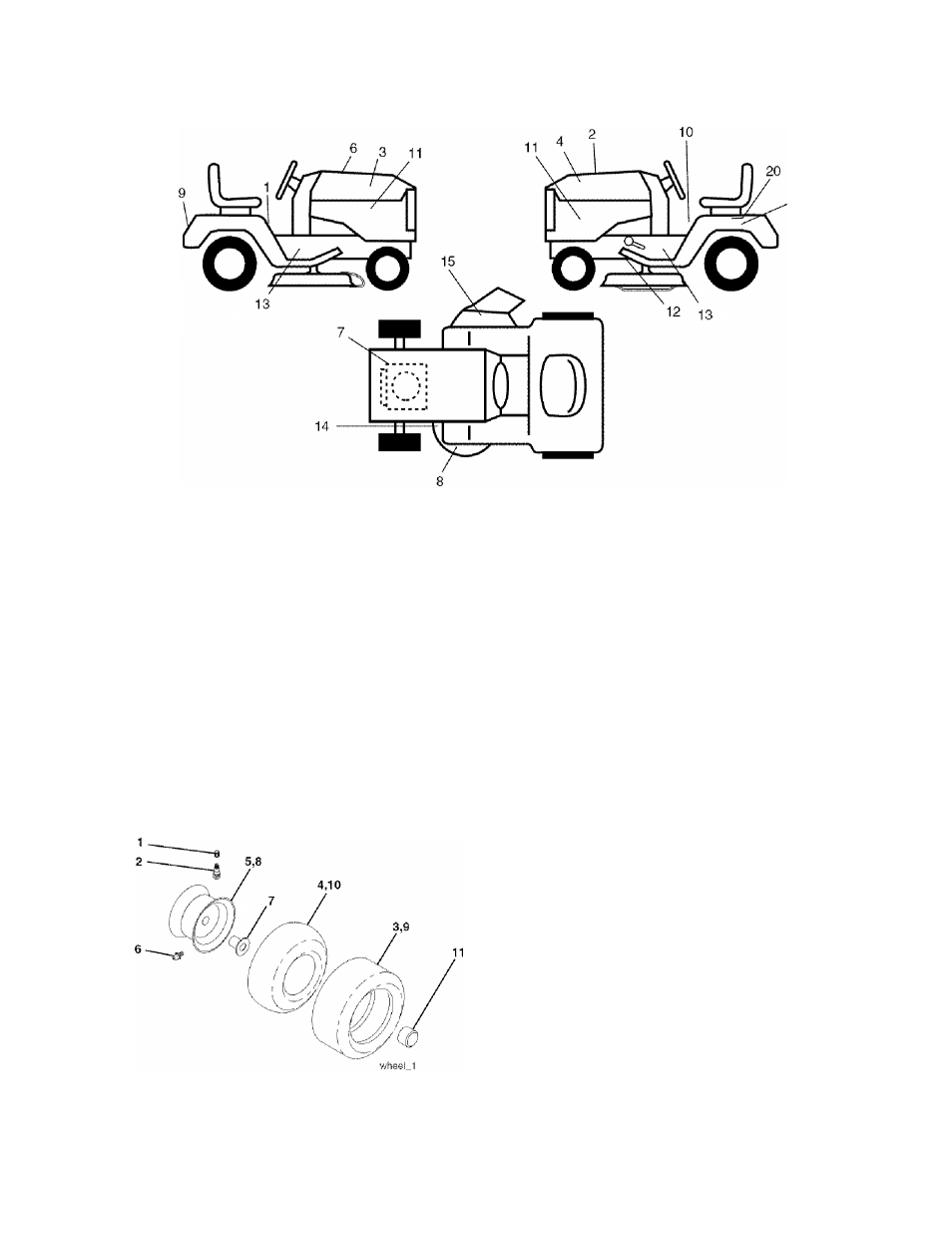

DECALS
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 193308 Decal, Oper. Instr. 13 191551 Decal, Chassis
2 193595 Decal, Replacement 14 160396 Decal, V-Belt Schematic
3 186280 Decal, Hood, R.H. 15 179128 Decal, Deck B 42”
4 186281 Decal, Hood, L.H. 20 149516 Decal, Battery Dngr/Psn Eng
5 138047 Decal, Battery - - 138311 Decal, Lift Handle
6 133644 Decal, Customer Maintenance - - 184310X428 Pad, Footrest LH STLT
7 191777 Decal, HP Engine - - 184311X428 Pad, Footrest RH STLT
8 172331 Decal, Mower Srs . . 193286 Manual, Owner's, English
9 186282 Decal, Fender - - 193287 Manual, Owner's, Spanish
10 156439 Decal, Fender Danger
11 186283 Decal, Hood Side
12 146046 Decal, V-Belt Drive Schematic
WHEELS & TIRES KEY PART
NO. NO.
1
2
3
4
5
6
8
9
10
11
59192
65139
106222X
59904
106732X624
278H
9040H
106108X624
122082X
7152J
104757X428
144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire F Ts 15
X 6.0 - 6 Service
Tube Inner Front #35060
Rim Asm 6" front Service
Fitting Grease
Bearing Flange
Rim Asm 8" rear Service
Tire R Ts 20 X 8-8 Service
Tube Rear 9.5 x 8 Service
Cap Axle BIk 1 50 x 1 00
Sealant, Tire {10 oz. tube)
NOTE: All component dimensions given in U.S. inches
1 inch =25.4 mm
