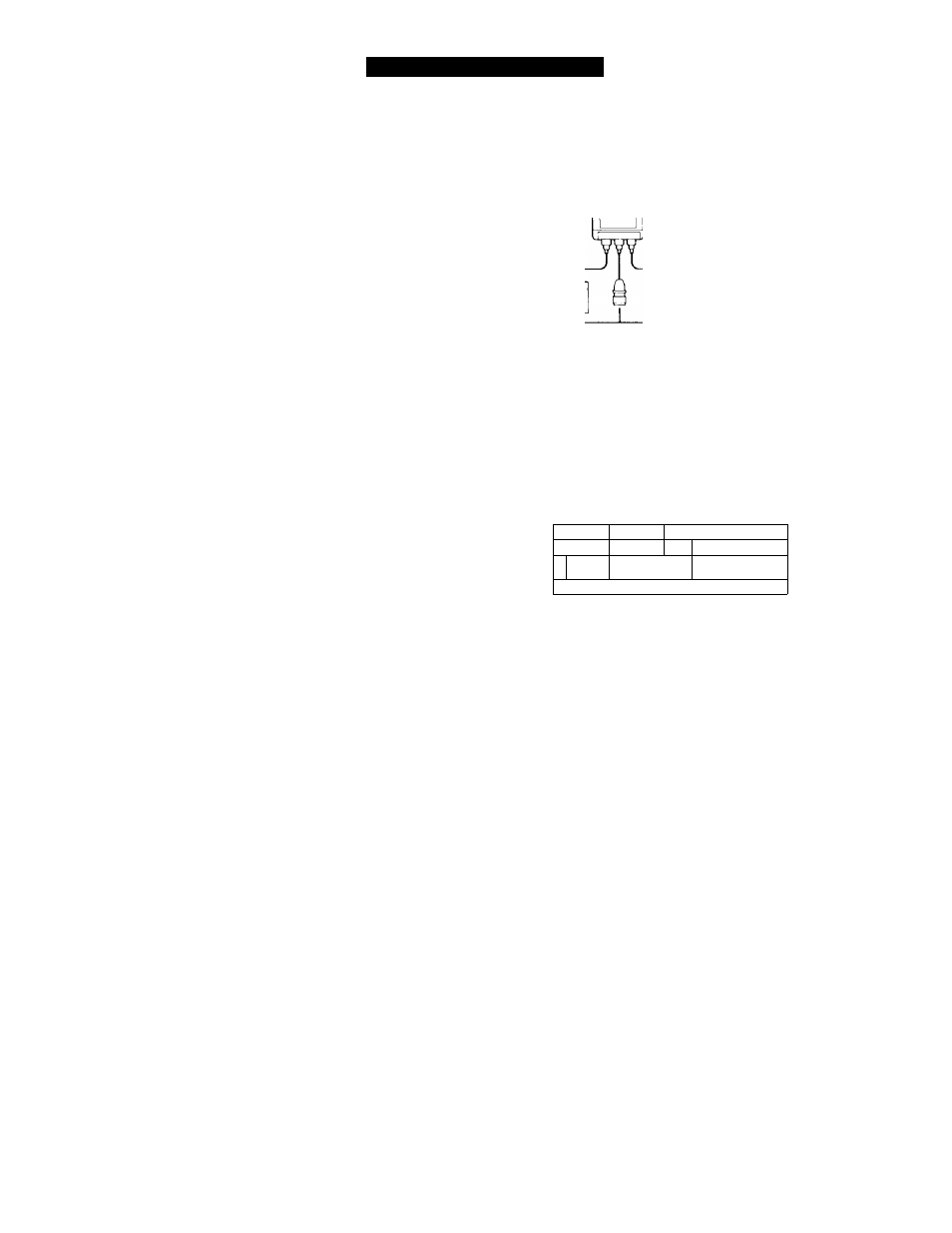

Connecting an Outdoor Antenna
Other Connections
UHF antenna
(Channel 14-69)
To connect only to
the GV-9
EAC-40
(optional)
CCD-6M
(optional)
Miniiplug ^
Mixer
VHF antenna
(Channel 2-13)
To connect to the GV-9 and |
another TV
I
EAC-45
(optional)
CCD-6M
(optional)
Miniplug y
/ To antenna
CCD-2 terminal
(optional) ^ “
O O 0 o o o CSD
1i
°
-------- ------------------1 III li II 111
f
Notes
• Before connecting the antennas, turn off the unit.
• Make connections firmly. A loose connecfion may cause a distorted picture.
• When using the unit in a car, use the optional VCA-3W or VCA-4E car antenna,
etc. For details, refer to the instruction manual of the car antenna.
