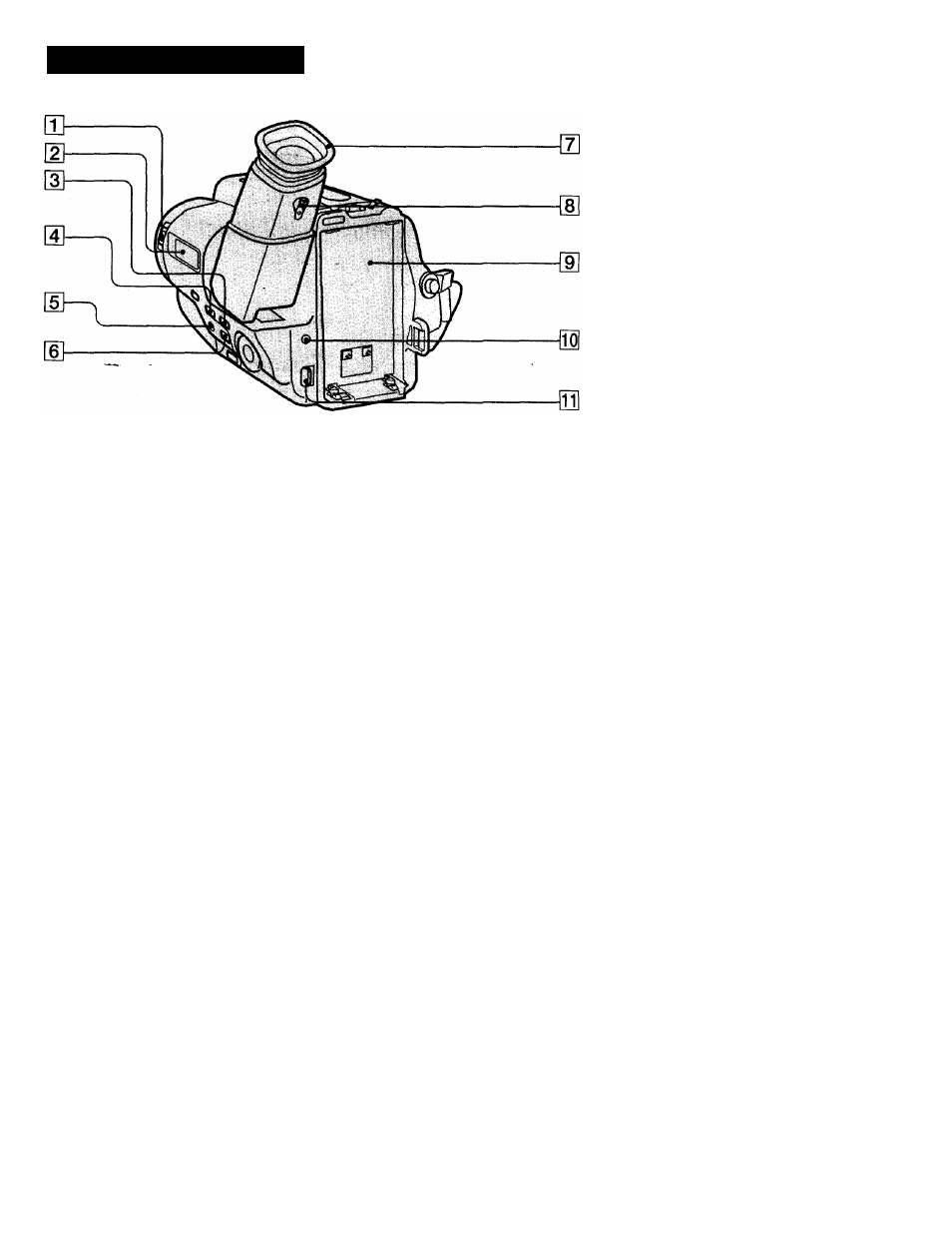

Identifying the Parts

Ш POWER switch (p. 10,17)

H] Display window (p. 49)

TIME (NEXT) button (p. 21, 30)

[4] DATE {+) button (p. 21, 30)

[5] COUNTER RESET button (p. 12)

[U TITLE button (p. 25)

Eyecup (p. 14)

[8] Viewfinder lens adjustment lever (p. 11)

[U Battery mounting surface (p. 8)

111

LANC

control jack

Connect the LANC

connecting cable to a wired remote control unit such as an editing

controller. In this case, set the COMMANDER mode to OFF (p. 26).

stands for Local

Application Control Bus sytem. The

control jack is used for controlling the tape transport

of video equipment and peripherals connected to it. This jack has the same function as the
connectors indicated as CONTROL L or REMOTE.

53! ВАТТ (battery) release knob (p. 8)
