Propane Forced Air User’s Manual
Wiring Diagrams
NOTE: If any original wiring as supplied with the
heater must be replaced, it must be with type AWG
105°C wire or its equivalent, except as indicated.

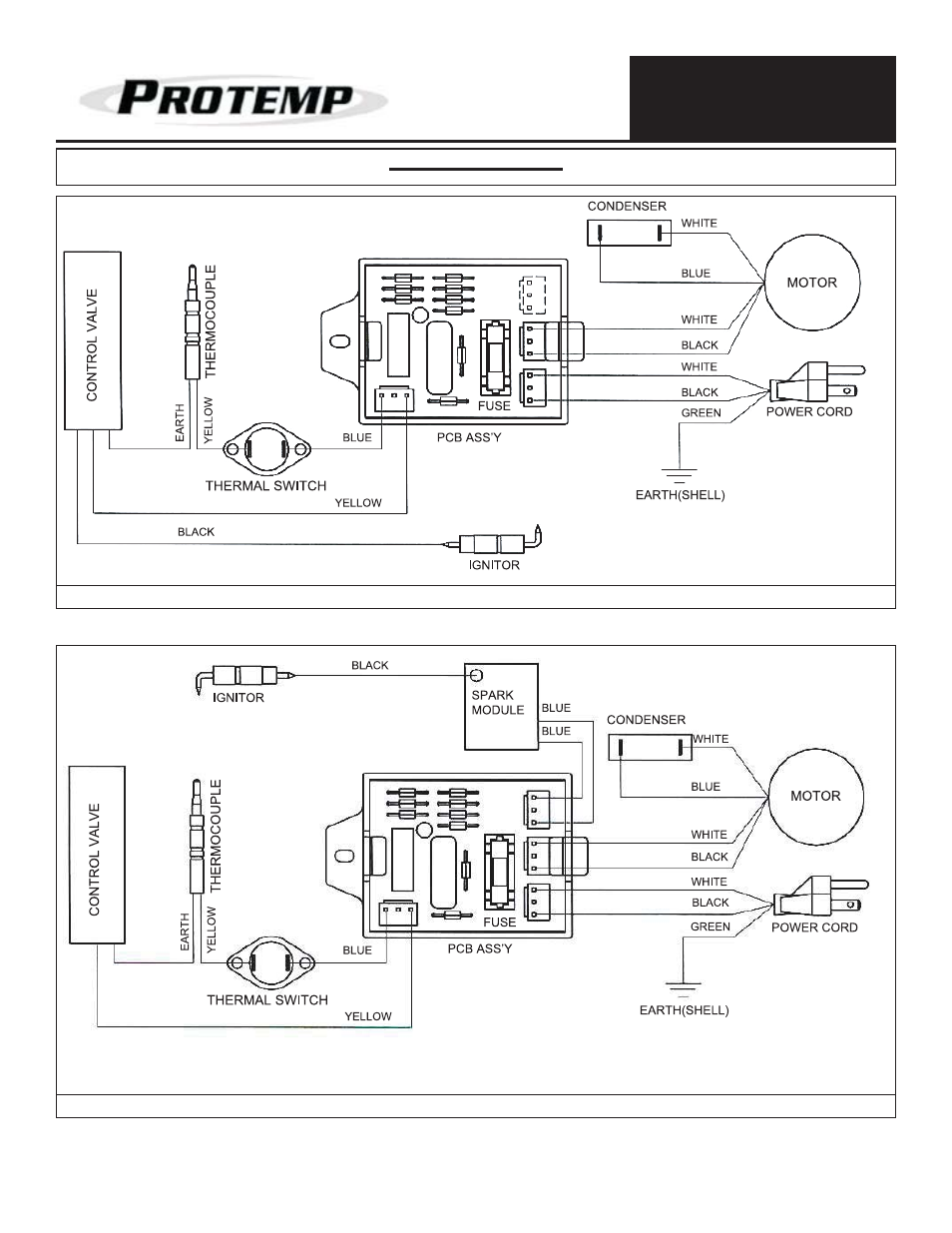

Figure 5: Wiring Diagram for Piezo/Manual Spark Models
Figure 6: Wiring Diagram for Continuous Spark Models
NOTE: If any original wiring as supplied with the
heater must be replaced, it must be with type AWG
105°C wire or its equivalent, except as indicated.
NEVER LEAVE HEATER UNATTENDED
WHILE BURNING, CONNECTED TO A
POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
