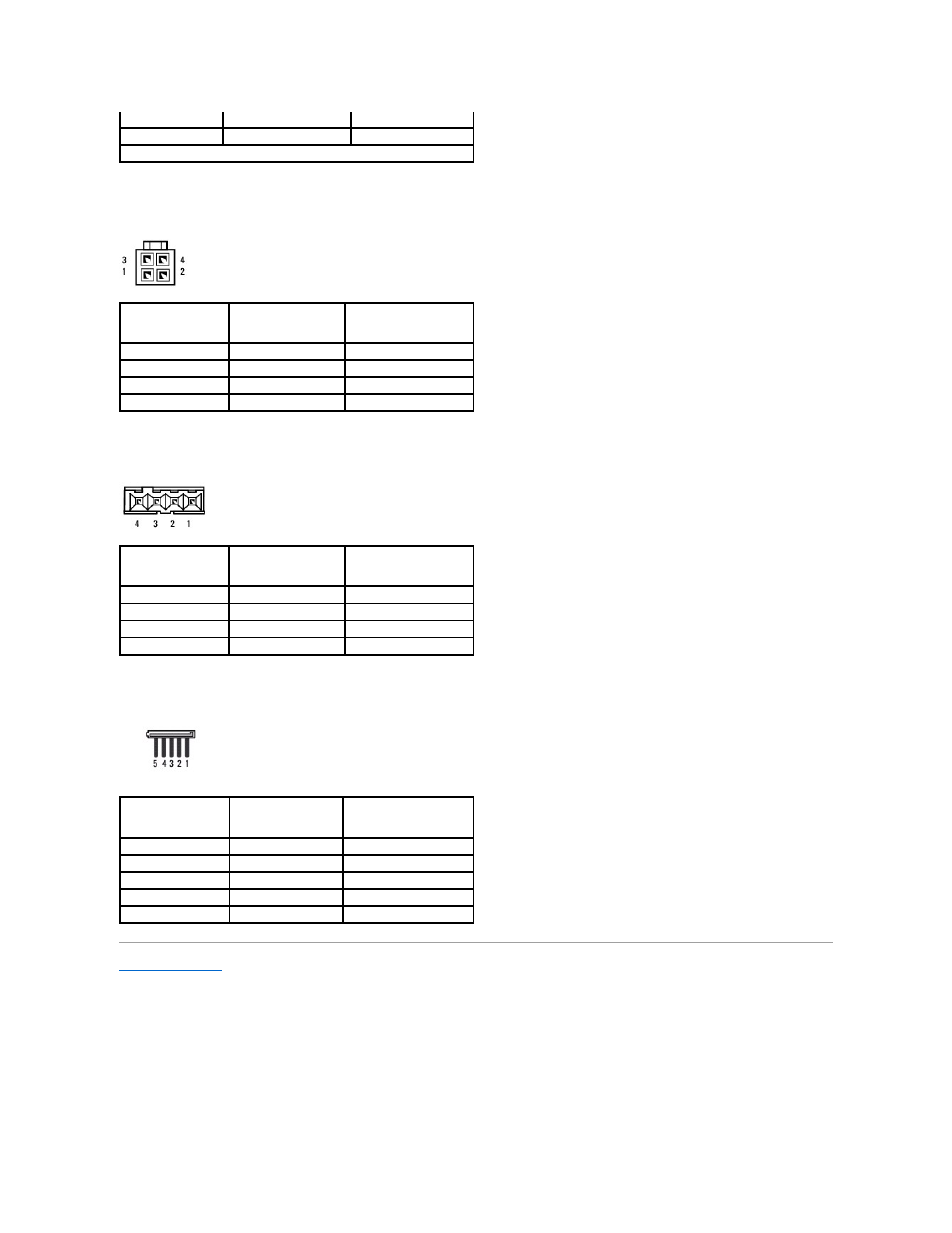

DC Power Connector P2



DC Power Connector P4



DC Power Connector P5 and P6

Back to Contents Page



23

+5 VDC

Red

24

GND

Black

*Use 22-AWG wire instead of 18-AWG wire.



Pin Number



Signal Name



18-AWG Wire

1

GND

Black

2

GND

Black

3

+12 VDC

Yellow

4

+12 VDC

Yellow



Pin Number



Signal Name



22-AWG Wire

1

+5 VDC

Red

2

GND

Black

3

GND

Black

4

+12 VDC

Yellow



Pin Number



Signal name



18-AWG Wire

1

+3.3 VDC

Orange

2

GND

Black

3

+5 VDC

Red

4

GND

Black

5

+12 VDC

Yellow
