Baseline C Cabinet
Wall Mount Enclosure
Installation Guide
1-866-294-5847
Rev 11.1.2012
www.baselinesystems.com
Materials and Tools
 Hardware (wall anchors, screws,
etc.) for mounting the enclosure
to the wall
 Tools as needed for wall
mounting hardware (drill,
screwdriver, pliers, marker, tape
measure, level, etc.)
 Tools as needed for working with
conduit (cement, cutter, etc.)
 Electrical power connection
hardware (½” conduit, wire, wire
nuts, etc.) and tools as needed.

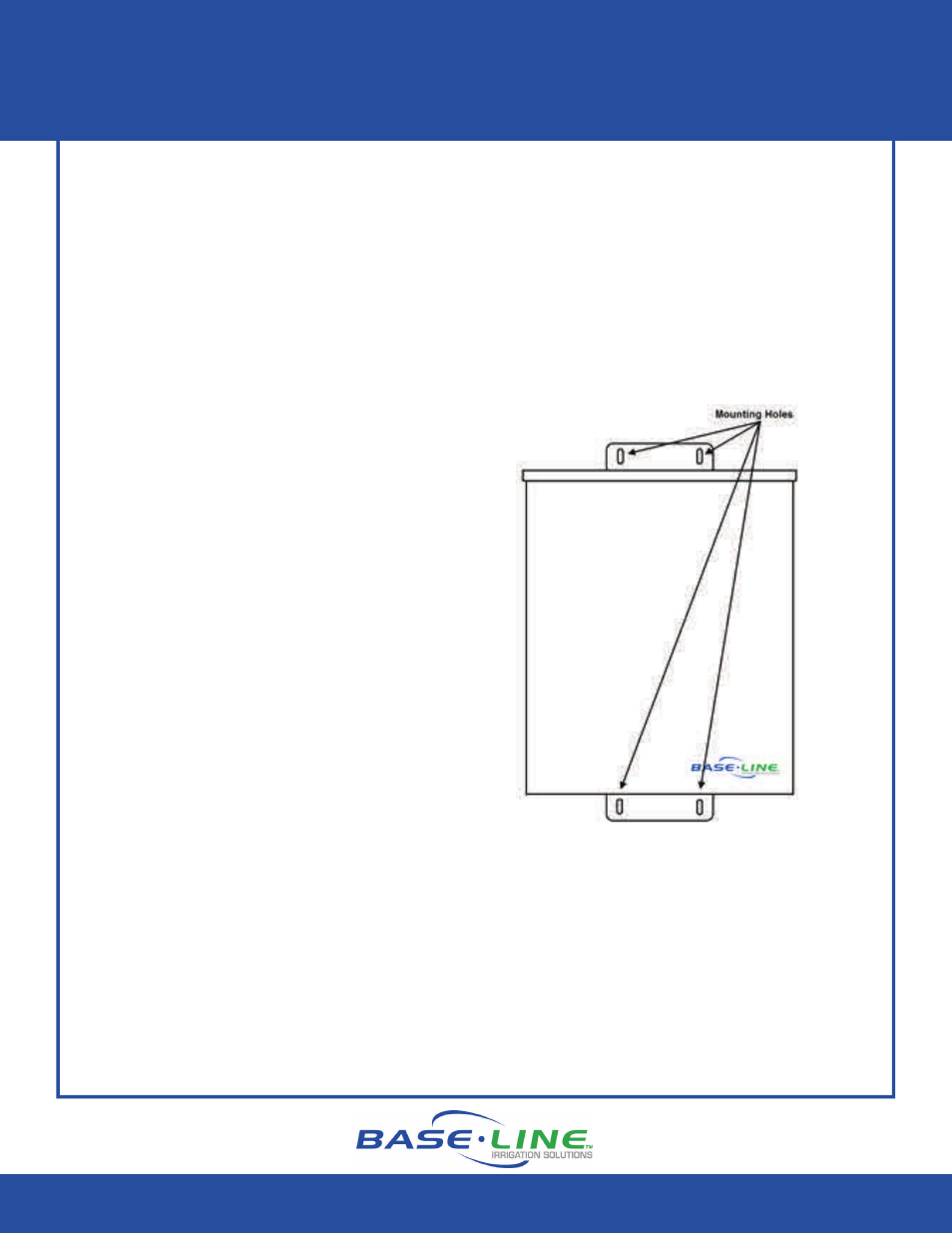

Enclosure Mounting Instructions
1. Mount the enclosure on a solid object/foundation taking into consideration wire and conduit
paths to electrical power, and the distance from your wire field.
IMPORTANT! Keep the enclosure out of direct sunlight.
2. Mount the enclosure with #10 or larger screws.
