Install sprayer harness – Great Plains Electro-Hydraulic Control Option Great Plains 3-Point Sprayers User Manual
Page 5
Great Plains Mfg., Inc.
Installation Instructions
5
06/09/2008
506-605M
Install Sprayer Harness
Refer to Figure 10
13. Select one:
833-218C FASSE HARNESS
It has five 2-pin connectors (control valve leads) at
one end, and a single 5-pin connector (tractor lead)
at the other.
14. Connect harness valve leads
to control valve
leads
. Examine colors on harness connectors and
match each harness connector with the correct port
connector. There is no distinction between Left and
Right ports at the leads - both base and rod sole-
noids operate simultaneously.
15. Secure harness to boom so it is not damaged during
boom operation.

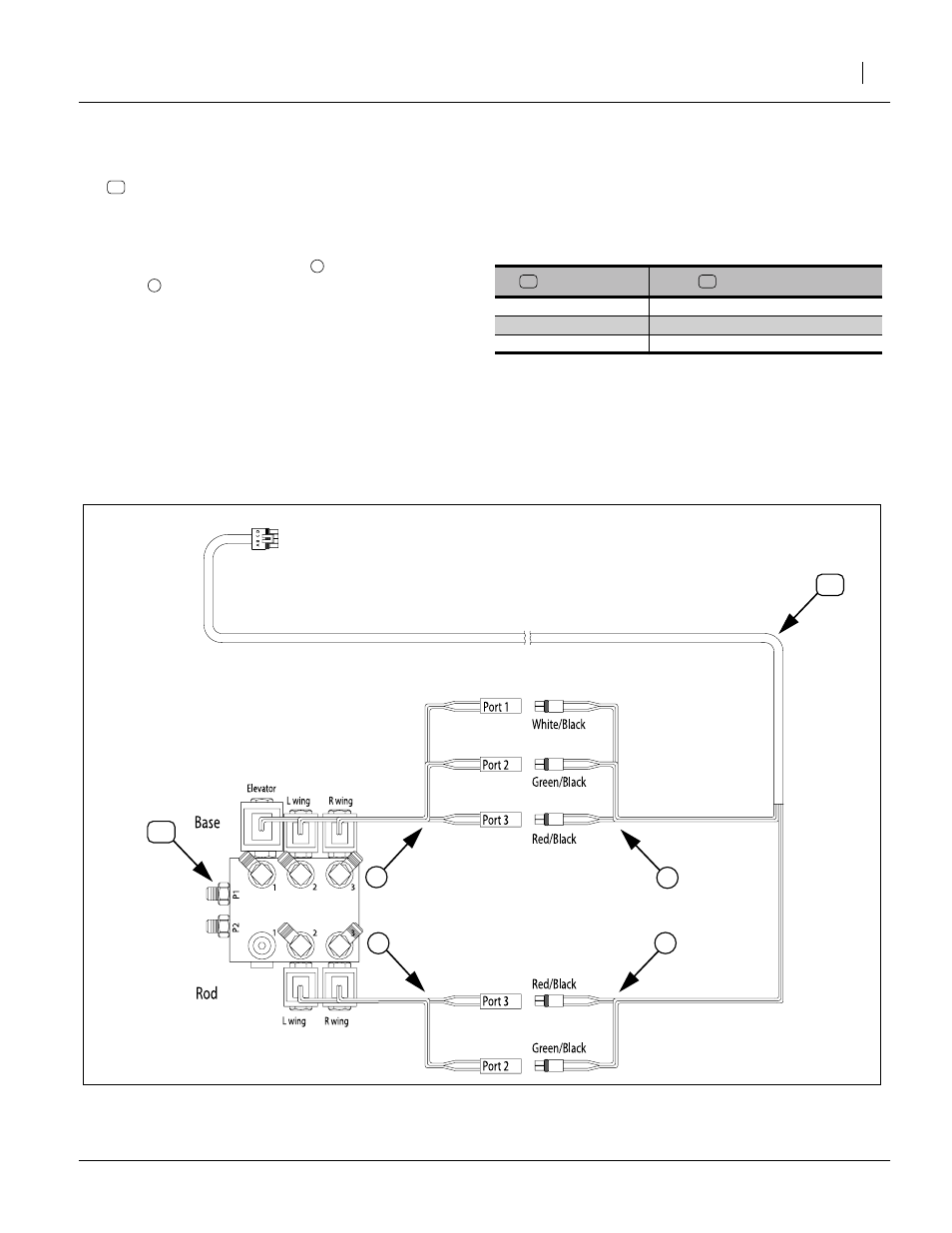

Figure 10
Harness Connections
17526
To Tractor
Valve Leads
6
7
Harness Leads
26
23
Valve Port
Harness Lead
1
White / Black
2
Green / Black
3
Red / Black
23
26
26
6
3
