Install it at the sense hole where the straight adaptor
was removed. Thread it in tightly, then turn it counter-
clockwise until the hose bar end is pointing forward
and slightly down.

16. Select one saved:

803-374C NUT HEX JAM 7/16-20 PLT

Use it to secure the elbow.

17. Reconnect the sense air line tube (not shown).

Assemble Air Release

You can pre-assemble the new air release cone, or
assemble it on the meter, whichever seems more reliable
and efficient. The following steps describe pre-assembly.

Refer to Figure 9
18. Select two new:

817-964C LG AIR MTR SCREEN CONE HALF

and one each new:

891-295C AIR METER SD TB SCRN CONIC

Insert the screen

in one of the two cone

halves

, so that the flanged ring of the cone sits in

the neck groove

of the cone half.

Join the two cone halves

Refer to Figure 10
19. Select one new:

817-826C CLAMP HOSE NYLON GF MATRIX 192

(this is the largest of the three sizes of new clamp
provided)

Secure the clamp

around the large end of the

cone halves

. Rotate the ratchet

so that it is

over the seams, on either side, of the cone halves.
Tighten with pliers.

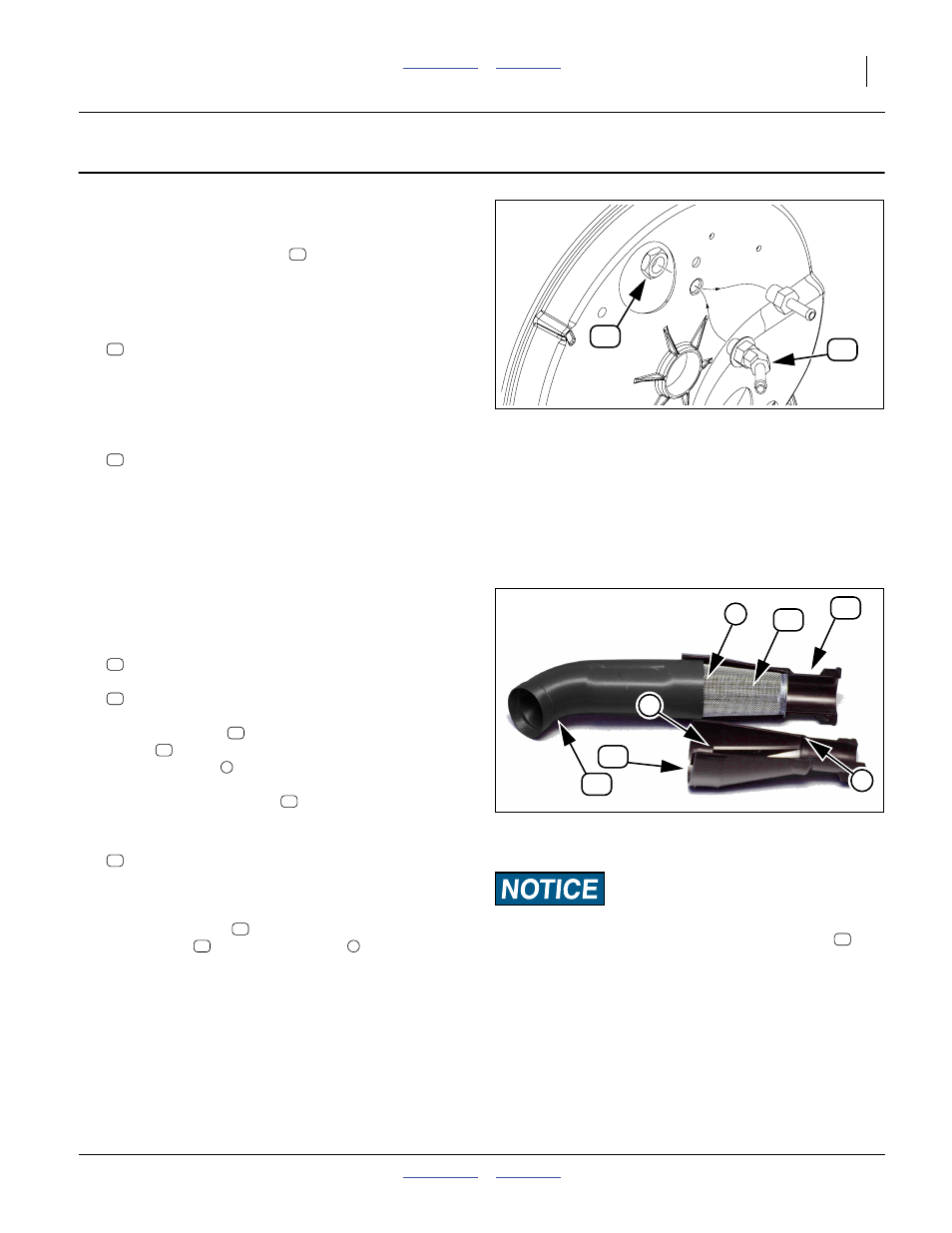

Figure 8

Install Sense Adaptor Elbow

34567

Equipment Damage Risk:
Take care to avoid damage to the exit lip of the screen

In particular, avoid bending the edge inward. Bends, tears and
fraying can result in bridging problems during use. Minimize
the number of attempts to assemble. Hold the assembly
carefully after assembly, as there is no positive connection
between the screen and cone halves - they are held in place by
clamps on the meter.

Figure 9

New Air Release Assembly

34439
