Great Plains 1005NG - Manual (Page 3)

Great Plains Mfg., Inc.
Installation Instructions 3
02/29/2008 202-612M
Disassemble Flangettes
Refer to Figure 5
9. At the (left) drive end of the seed box, at each
partition , and at the right end , remove two
each:
NUT HEX 5/16-18 PLT
WASHER LOCK SPRING 5/16 PLT
HHCS 5/16-18X3/4 GR5
from the halves of the
FLANGETTE 47 MST
The fasteners are not re-used. The screws are
replaced by different size screws in the kit. The
flangettes, washers and nuts are the same as in
the kit, but the kit includes new parts.
Loosen Bearing Set Screws
Refer to Figure 5
10. At the (left) drive end of the seed box, at each
partition , and at the right end , loosen or
remove two set screws from each:
BEARING 3/4BORE 47MM SPHERE OD
The set screws are not re-used.
Remove Old Shaft
11. From the drive side, slide the
7’ NATIVE GRASS SHAFT
or
NATIVE GRASS 114 BOX SHAFT
out from all loosened components. The shaft is not
re-used.
12. Remove shaft components as they clear the end of
the shaft. None are re-used.

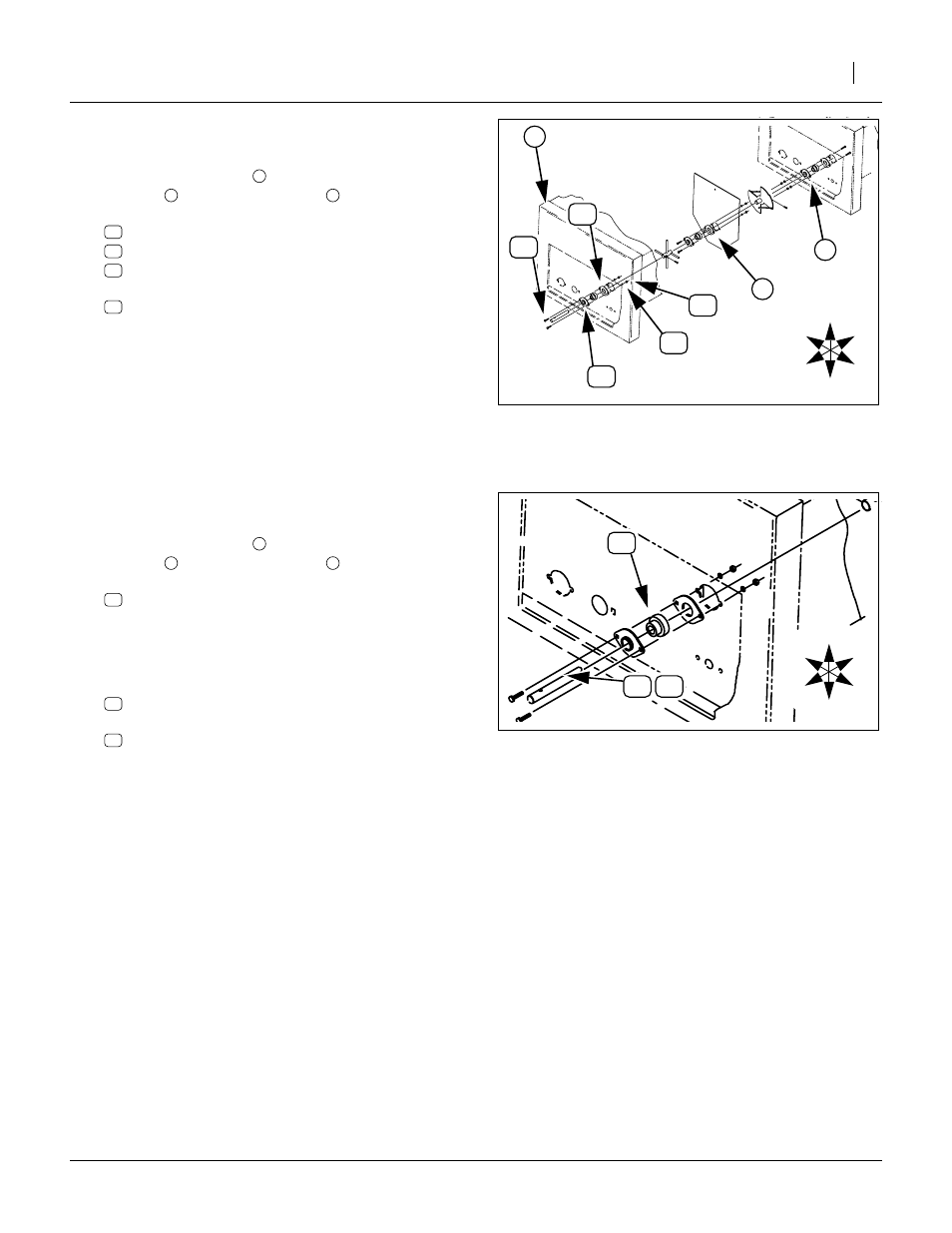

Figure 5
Disassemble Flangettes
26285
62
57
62
58
59
1
2
3
U
D
L
R
B
F
1
2 3
58
59
57
62
Figure 6
Loosen Old Bearings
26285
61
51 52
U
D
L
R
B
F
1
2 3
61
51
52
