5

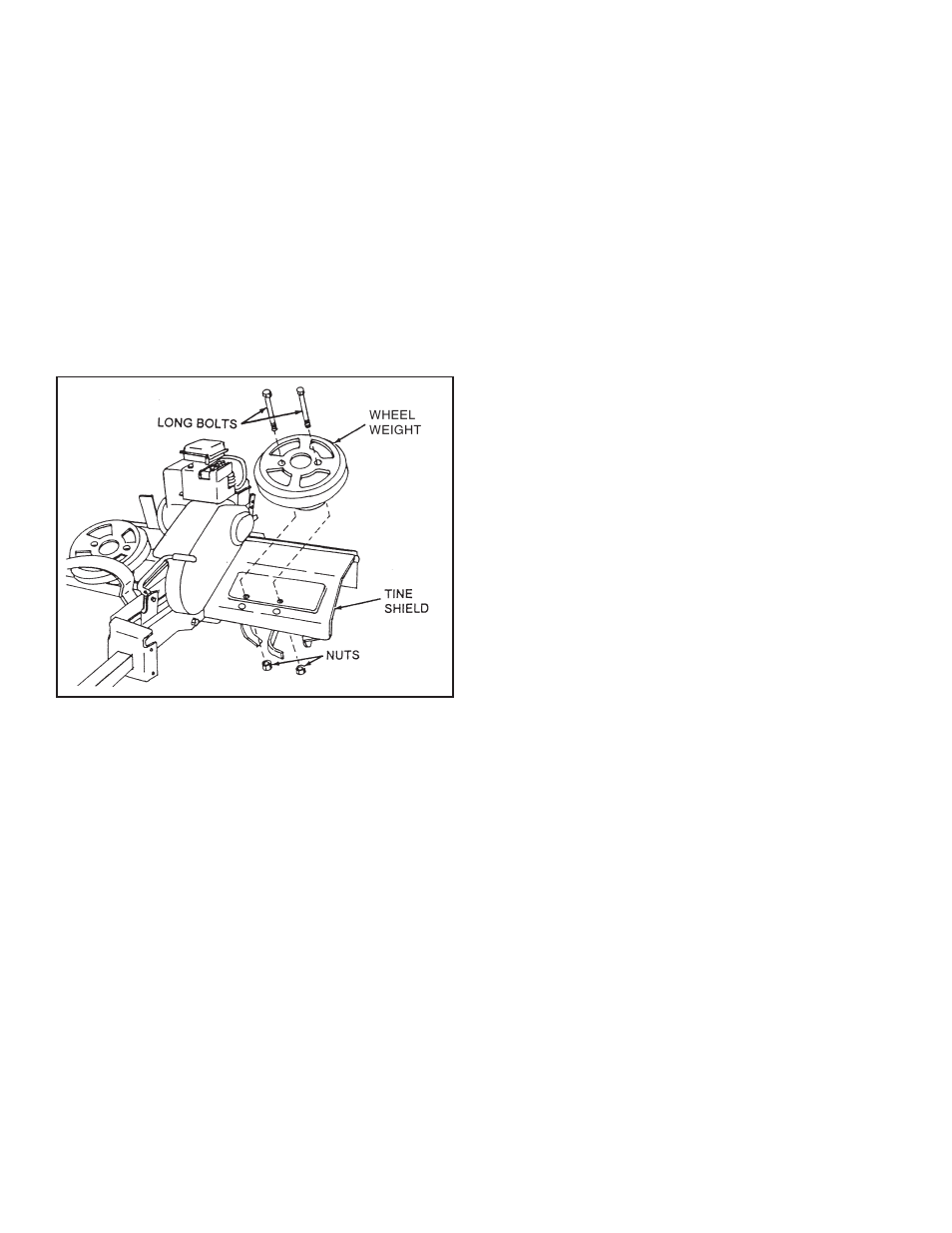

FIG. 4
TO INSTALL (WHEEL)
WEIGHTS TO TILLER
NOTE: Weights are not furnished with the Tiller. 30 lb.
tractor wheel weights may be purchased to mount to the
Tiller if extra weight is required. (Refer to the Operation
section of this manual.)
• Remove two Carriage Bolts and Nuts from each Tine
Shield, located approximately 3-1/2" from the front
edge. See fig. 4.
• Place (Wheel) Weights on Tine Shield and secure
with long Bolts and Nuts furnished with the Weights.
See fig. 4.
