(SECTION THREE: Anatomy of an Evolution e Series Amplifier continued)

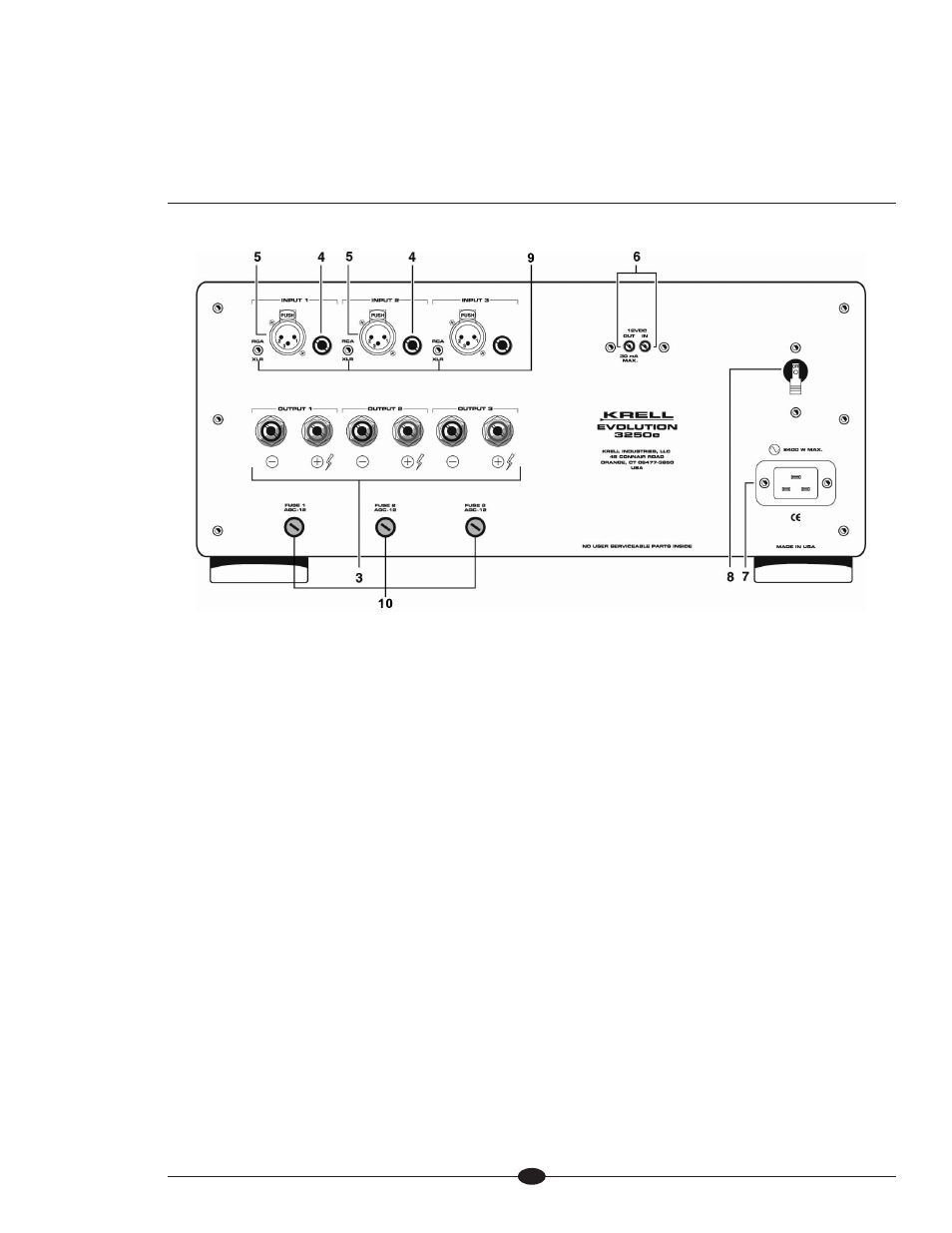

Figure 7 Evolution e Series Three Channel Amplifier Back Panel (Evolution 3250e shown)
3 Loudspeaker Binding Posts
4 Single-ended Input
5 Balanced Input
9 XLR/Sinlge-ended Selector Switch
6 12 VDC Out/In (12 V Trigger)
7 IEC Power Cord Receptacle
8 Power Breaker Switch
10 Speaker Fuses
Outputs
Inputs
Remote
Power
