Model 5600SE Downflow
20
3-3/4" Turbine Meter Assembly

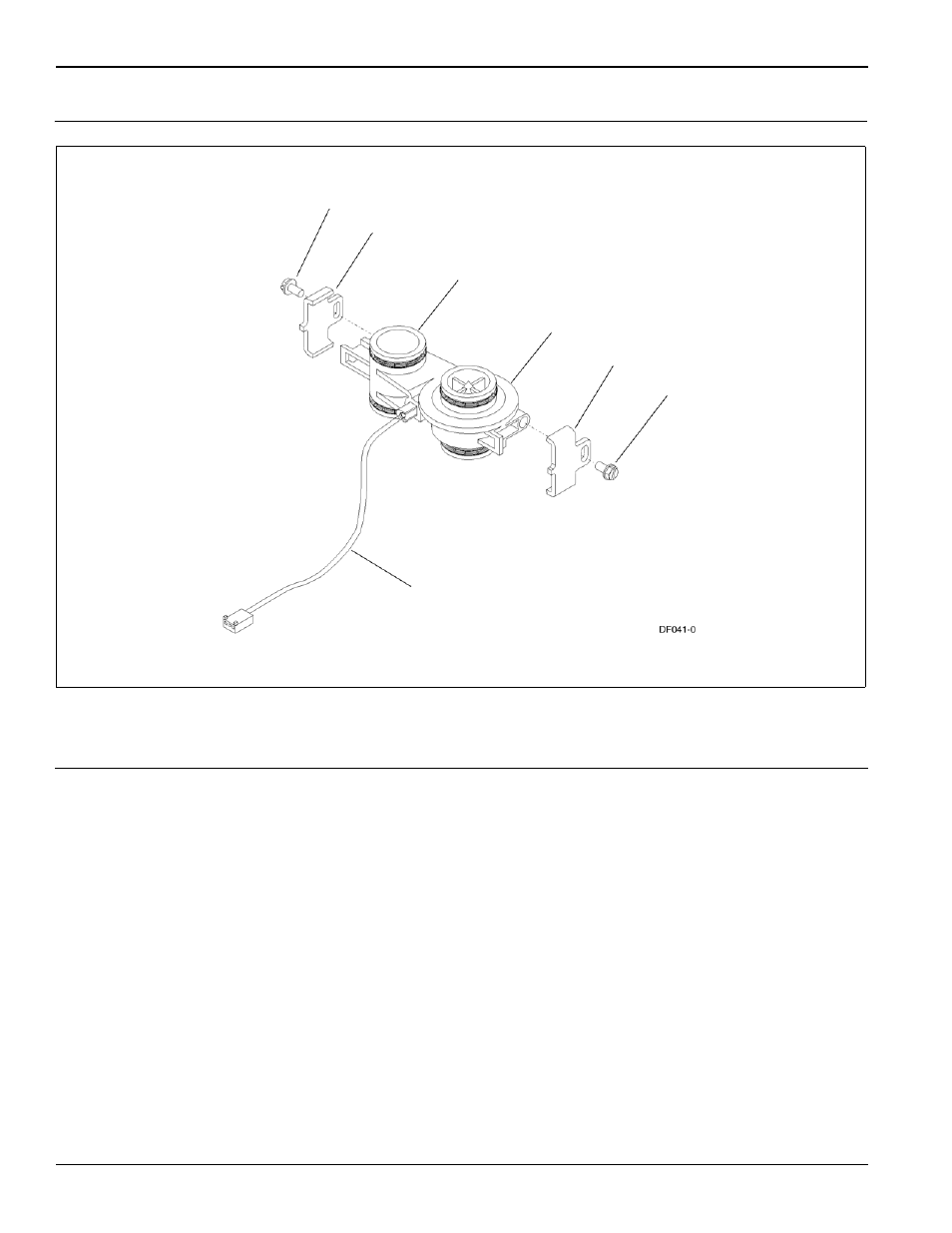

Figure 17: 3-3/4" Turbine Meter Assembly
Item Number No. Req’d Part Number Description
1 2 13314 screw, hex washer, 8-18 x 5/8
2 2 19569 clip, flow meter
3 1 19797 meter body assembly, 3/4" turbine
4 4 13305 o-ring, 119
5 1 19791-01 harness assembly, flow meter
6 1 14613 flow straightener (not shown)
1
2
4
5
3
2
1
