INSTRUCTION MANUAL
• Please read these instructions carefully before using your Dirt Devil ® .
• Let us help you put your cleaner together, warranty registration or answer
any questions, call:
1-800-321-1134 (USA & Canada) • website: www.dirtdevil.com
• Use the product only for its intended use.
• Do not use or store outdoors.
• Store the product indoors in a cool, dry place.
• Never direct liquid or steam towards people, animals or plants.
• Never direct liquid or steam towards equipment containing electrical components.
• Do not leave the product unattended when plugged in. Always unplug the power cord
from the electrical outlet when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near
children, pets and plants.
• Do not use any extension cord with this product.
• Do not handle the plug, or the product with wet hands. Do not operate the product with-
out footwear.
• Do not put any objects into openings.
• Do not place hands or feet under the product while it is in operation as the unit gets
very hot and may create a burn hazard.
• To protect against a risk of electric shock, do not immerse the product into water or
any other liquids.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated sur-
faces.
• Do not use the product on leather, wax polished furniture or floors, synthetic fabrics,
velvet or other delicate, steam sensitive materials.
• Do not fill water tank under running water, use only manufacturer’s supplied fill cup.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
MANUAL DE INSTRUCCIONES
• Por favor lea estas instrucciones con cuidado antes de usar su Dirt Devil ® .
• Para ayudarle a ensamblar su aspiradora, para el registro de la garantía o
para responder cualquier pregunta, llámenos al:
1-800-321-1134 (EE.UU. y Canadá) • Sitio Web: www.dirtdevil.com
MODE D’EMPLOI
• Veuillez lire attentivement ces instructions avant d’utiliser votre Dirt Devil ® .
• Nous sommes heureux de vous aider à assembler votre défroisseur. Si vous avez des ques
tions au sujet de l’enregistrement de votre garantie ou toute autre question, composer le :
1-800-321-1134 (Canada et États-Unis) • site Web : www.dirtdevil.com
TROUBLESHOOTING GUIDE
LIMITED WARRANTY
To the consumer, Royal Appliance Mfg. Co. warrants this steam mop to be free of defects in material or workmanship com-
mencing upon the date of the original purchase. Refer to your steam mop carton for the length of warranty and save your
original sales receipt to validate start of warranty period.
If the steam mop should become defective within the warranty period, we will repair or replace any defective parts free
of charge. The complete machine must be delivered prepaid to any ROYAL Authorized Sales & Warranty Service Station.
Please include complete description of the problem, day of purchase, copy of original sales receipt and your name, address
and telephone number. If you are not near a Warranty Station, call the factory for assistance at USA:
1-800-321-1134 / CANADA: 1-800-321-1134. Use only genuine Royal
® replacement parts.
The warranty does not include unusual wear, damage resulting from accident or unreasonable use of the steam mop. This
warranty does not include pads, carpet glide attachment, funnel or water cup. This warranty does not cover unauthorized
repairs. This warranty gives you specific legal rights and you may also have other rights. (Other rights may vary from
state to state in the USA).
For quick reference, please record your
product information below.
Model #:
Mfg. Code:
(Mfg. code located on the lower backside of cleaner)
ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE
CUSTOMER SERVICE (1-800-321-1134)
In the event that further assistance is required, see your Yellow Pages for an authorized Royal ® Dealer. Costs of any
transportation to and from any place of repair are to be paid by the owner. The service parts used in this unit are easily
replaced and readily available from an authorized Royal ® Dealer or retailer. Always identify your cleaner by the model
number and manufacturing code when requesting information or ordering replacement parts. (The model number appears
on the bottom of the cleaner.)
Part # 961099003 R0 • 6/10
N° de référence 961099003 R0 • 6/10
No. de Parte 961099003 R0 • 6/10
AVERTISSEMENT :
L’appareil peut comprendre de petites
pièces d’assemblage. Ces dernières
présentent un danger d’étouffement.
ADVERTENCIA:
El ensamble de la aspiradora puede incluir
partes pequeñas. Las partes pequeñas
pueden presentar riesgo de ahogamiento.
Para una referencia rápida, registre la infor-
mación de su fregadora a vapor a continuación.
No. de modelo:
Código de fabricante:
(El código del fabricante aparece en la parte posterior e inferior
de la aspiradora).
WARNING:
Product assembly may include
small parts. Small parts can
present a choking hazard.
INSTALLATION OF ACCESSORIES
GENERAL MAINTENANCE
REFILL WATER DURING OPERATION
CARE & CLEANING
STORAGE
HOW TO ASSEMBLE
SAVE THESE INSTRUCTIONS
VEUILLEZ CONSERVER CES INSTRUCTIONS
FEATURES
Find GENUINE Replacement Parts at www.dirtdevil.com
Find GENUINE Replacement Parts at www.dirtdevil.com
Find GENUINE Replacement Parts at www.dirtdevil.com
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
Reduced steam or
no steam
1. Water tank is empty 1. Follow instructions to refill
2. Take to service center or call 1-800-321-1134
2. Not plugged in outlet 2. Plug in outlet
Product worked
intermittently and
then stopped
1. Not enough water in the tank 1. Follow instructions to refill
The indicator light
is on
1. Water tank is empty 1. Follow instructions to refill
2. Take to service center or call 1-800-321-1134
1. Hand Steam Unit
2. Nozzle
3. Safety Cap
4. Steam Button
5. Handle
6. Power Cord
7. Power Indicator Light
8. Hose 9. Measuring Cup
10. Funnel
11. Window Squeegee
12. Angle Adaptor
13. Grout Brush
14. Soft Cloth
15. Steam Diffuser
16. Concentrator nozzle
1. Unpack the product, check the accessories and documents supplied with the product and make sure that the product
and accessories are not damaged.
2. Before use, please read the User Manual carefully. The product is only for use in households.
3. First, place the product on a level platform, unscrew the safety cap counterclockwise (A), and then install the funnel.
4. Fill measuring cup to maximum fill line with clean water and add the water into the tank. (Max. capacity of the tank
is 250ml. Do not overfill the tank and some space must be left in the tank). Re-install the safety cap and tighten it in
position.
5. Check the power supply and socket, and confirm they comply with the requirements given in the User Manual. Then
turn on the power supply.
6. About 4 minutes after power supply is turned on light will turn green and steam is ready. At this time lightly press the
steam button and check whether steam is sprayed out of the nozzle. (Do not aim the spray nozzle at other persons or
objects).
7. If there is steam sprayed out, please install suitable accessories according to your needs after you release the button.
8. Press down the steam button again in order to carry out the operations required by you.
1. Déballer l’appareil, vérifier les accessoires et les documents fournis avec l’appareil et s’assurer que l’appareil et les
accessoires ne sont pas endommagés.
2. Avant l’utilisation, lire attentivement le guide d’utilisation. L’appareil est destiné à un usage domestique seulement.
3. Déposer d’abord l’appareil sur une surface de niveau, dévisser le capuchon de sécurité dans le sens antihoraire (A) et
installer l’entonnoir.
4. Remplir la tasse à mesurer d’eau propre jusqu’à la plus haute ligne de mesure et verser l’eau dans le réservoir. (La
capacité maximale du réservoir est de 250 ml. Ne pas trop remplir le réservoir – il ne doit pas être entièrement plein.)
Réinstaller le capuchon de sécurité et le revisser.
5. Vérifier la source d’alimentation et la prise de courant et s’assurer qu’elles sont conformes aux exigences indiquées
dans le guide d’utilisation. Mettre ensuite l’appareil en marche.
6. Le témoin de fonctionnement devient vert environ 4 minutes après la mise en marche; le défroisseur est alors prêt à
fonctionner. Appuyer légèrement sur le bouton de vaporisation et vérifier si la vapeur sort de la buse de pulvérisation.
(Ne pas diriger la buse vers des personnes ou des objets.)
7. Si la buse émet de la vapeur, installer les accessoires convenant à vos besoins après avoir relâché le bouton.
8. Appuyer de nouveau sur le bouton de vaporisation pour exécuter les tâches voulues.
1. Unplug the power cord and disconnect the power supply.
2. To purge tank press down the steam button to release the pressure until all steam is injected out.
3. Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until all steam
comes out. Then place the machine in a cool place to cool it down for about five minutes. Finally, completely remove
the safety cap.
4. Use the funnel and measuring cup to refill a suitable quantity of cold or hot water into the tank.
5. Re-install the safety cap onto the machine body and tighten it in position.
1. After the product is used, unplug the power cord and disconnect the power supply.
2. Press down the steam button to release the pressure until no steam is injected out.
3. Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until no steam
comes out. Then place the product in a cool place to cool it down for about five minutes. Finally, completely remove
the safety cap.
4. Empty the residual water in the tank and clean the external surface with a piece of clean, dry cloth.
5. Re-install the safety cap onto the product body and tighten it in position.
Notes: Re-install the safety cap onto the machine body and tighten it in position.
1. INSTALLATION OF CONCENTRATOR NOzzLE OR hOSE.
Align tab of accessory to opening on the Body of the hand Steam Unit. Rotate till the
tab of accessory is aligned with the locked position on the hand steam unit. To remove
rotate the opposite way. Then gently pull the accessory away from the hand steam
unit.
2. INSTALLATION OF ThE STEAM DIFFUSER, ANgLE ADAPTOR OR gROUT BRUSh.
These accessories can be firmly pushed onto the concentrator nozzle or hose.
16.
15.
14.
13. 12.
10.
8.
7.
5.
4.
3.
2.
1.
11.
9.
6.
1. Unplug the power cord and disconnect the power supply.
2. To purge tank press down the steam button to release the pressure until all steam is injected out.
3. Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until all steam
comes out. Then place the machine in a cool place to cool it down for about five minutes. Finally, completely remove
the safety cap.
4. Empty water from the water tank before storing.
5. Store upright in a protected, dry area. Keep water funnel and measuring cup for future use.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED
COMMERICALLY WARRANTY IS VOID.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
• READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
• ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS.
• ANY SERVICE OTHER THAN ROUTINE CLEANING AND MAINTENANCE
SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE.
• WARNING: FULLY ASSEMBLE STEAM MOP BEFORE OPERATING.
• WARNING: THE CORDS, WIRES AND/OR CABLES SUPPLIED WITH THIS
PRODUCT CONTAINS CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS,
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY: FRANÇAIS
A
1.
1.
2.
3. INStALLAtION Of the WINdOW SqUeegee.
Line-up tabs (A) on window squeegee with slots in steam diffuser. Slide together so
steam outlets can be see through opening on squeegee. Press diffusser firmly onto
hose or concentrator nozzle.
This product requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any
servicing that requires disassembly other than cleaning must be performed by a qualified appliance repair technician.
ANY OTHER SERVICING SHOULD BE DONE BY AN AUTHORIZED SERVICE REPRESENTATIVE.
CUSTOMER SERVICE: (1-800-321-1134)
USe CAUtION WheN INStALLINg ACCeSSORIeS. CAUtION: hOt SteAM
CAUtION: dO NOt PULL OR tWISt hOSe WhILe IN USe.
UNPLUg BEFORE SERVICINg OR FILLINg TANK.
IMPORtANt: USe CAUtION WheN INStALLINg, USINg OR ReMOVINg ACCeSSORIeS. ALWAYS hAVe the NOZZLeS
POINted AWAY fROM YOU ANd OtheRS WheN INStALLINg OR ReMOVINg ACCeSSORIeS.
DÉBRANChER L’APPAREIL AVANT L’ENTRETIEN OU LE REMPLISSAgE DU RÉSERVOIR.
IMPORTANT : FAIRE PREUVE DE PRUDENCE LORS DE L’INSTALLATION, DE L’UTILISATION OU DU RETRAIT
D’ACCESSOIRES. NE JAMAIS DIRIgER LES BUSES VERS LES PERSONNES PRÉSENTES AU MOMENT D’INSTALLER OU DE
RETIRER DES ACCESSOIRES.
ESTA FREGADORA A VAPOR ESTÁ DISEÑADA SÓLO PARA USO DOMÉSTICO.
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
Durante la utilización del trapeador de vapor, deben tomarse algunas precau-
ciones básicas, entre ellas:
• LEA TODAS LAS INSTRUCCIONES ANTES DE USAR EL APARATO.
• SIEMPRE SIGA ESTAS INSTRUCCIONES DE SEGURIDAD.
• CUALQUIER OTRO SERVICIO QUE NO SEA EL DE MANTENIMIENTO Y
LIMPIEZA DE RUTINA DEBE SER EFECTUADO POR UN REPRESENTANTE
DE SERVICIO AUTORIZADO.
• ADVERTENCIA: ENSAMBLE COMPLETAMENTE LA FREGADORA A VAPOR
ANTES DE HACERLA FUNCIONAR.
• ADVERTENCIA: LOS CORDONES, ALAMBRES Y/O CABLES SUMINISTRADOS
CON ESTE PRODUCTO CONTIENEN PRODUCTOS QUÍMICOS QUE INCLUYEN
PLOMO O COMPUESTOS DE PLOMO ACERCA DE LOS CUALES SE HA SABIDO EN
EL ESTADO DE CALIFORNIA, PRODUCEN CÁNCER, DEFECTOS DE NACIMIENTO U
OTROS DA—OS REPRODUCTIVOS. LÁVESE LAS MANOS DESPUÉS DE SU USO.
ADVERTENCIA: PARA REDUCIR EL RIESGO DE
INCENDIO, CHOQUE ELÉCTRICO O LESIONES:
• No utilizar nunca el trapeador de vapor sin que la almohadilla de microfibras esté bien
ajustada.
• Nunca deje la fregadora a vapor en un mismo lugar ni en una superficie durante un tiempo
cuando la bomba esté encendida y el vapor, activado.
WARNING:
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
AVERTISSEMENT :
Afin de réduire les risques de décharge électrique, cet appareil est muni d’une fiche polarisée
(une tige est plus large que l’autre). Cette fiche ne peut être insérée dans une prise de courant
polarisée que dans un sens. Si la fiche ne s’insère pas complètement dans la prise, inversez-la.
Si elle ne s’insère toujours pas, demandez à un électricien qualifié d’installer la prise appropriée.
Ne modifiez jamais la fiche.
CARACTÉRISTIQUES
ASSEMBLAGE
dropped, damaged, left outdoors, or dropped into water, return it to a service center for
inspection. Call 1-800-321-1134 or visit our website at www.dirtdevil.com to locate the
nearest service center.
• Do not add rust remover, aromatic, alcoholic or detergent products, cleaning solutions,
scented perfumes, oils or any other chemicals to the water used in this appliance as this
may damage the unit or make it unsafe for use. While the product is designed for tap
water, to increase the effectiveness of the steam, and to avoid build up of minerals, you
may use distilled water to fill the product.
• Do not use the product in an enclosed space filled with vapor given off by oil-base paint,
paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic
vapors.
• When in use, never turn the product over or use while on its side.
• Before cleaning the product, unplug the power cord from the electrical outlet and clean
with a dry or damp cloth. Do not pour water or use alcohol, benzene or paint thinner on the
unit.
• Extreme caution should be exercised when using this appliance to clean stairs.
• Keep the work area well lit.
• Do not completely remove safety cap when tank is hot.
• Fill tank only when cool.
• Do not turn on until tank if filled with water.
• Safety cap must always be tightened before use.
• While in use do not incline product more than 45 degrees.

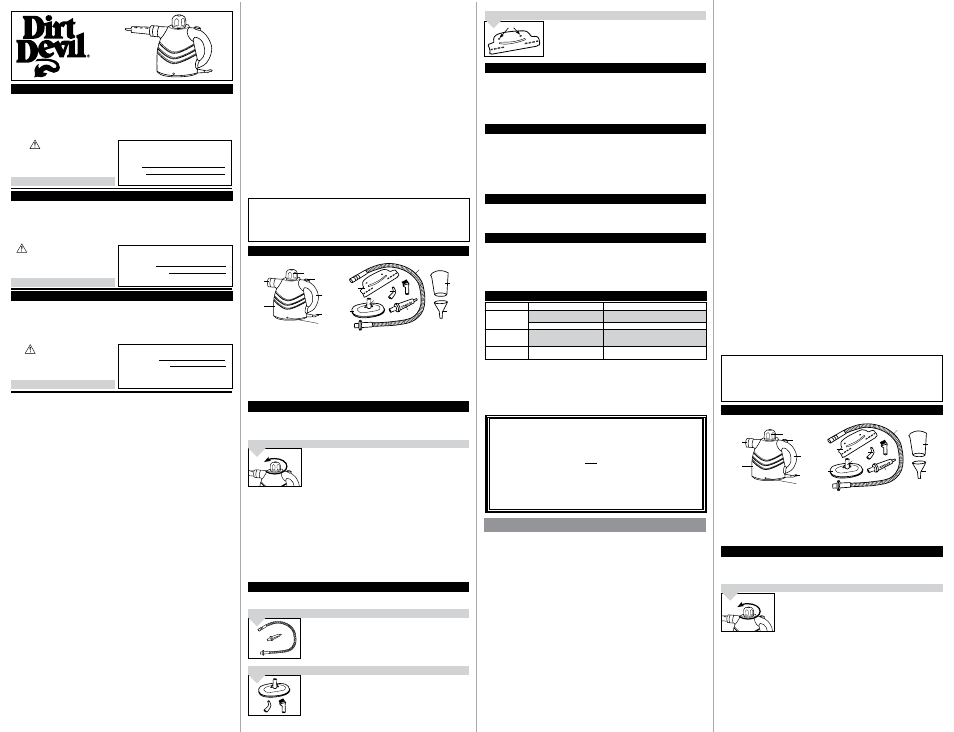

3.
A
1. Défroisseur à vapeur
2. Buse
3. Capuchon de sécurité
4. Bouton de vaporisation
5. Manche
6. Cordon
7. Témoin de fonctionnement
8. Tuyau 9. Tasse à mesurer
10. Entonnoir
11. Racloir à fenêtre
12. Adaptateur d’angle
13. Brosse à coulis
14. Linge doux
15. Diffuseur à vapeur
16. Embout concentrateur
16.
15.
14.
13. 12.
10.
8.
7.
5.
4.
3.
2.
1.
11.
9.
6.
• Utilizar el trapeador de vapor únicamente en las aplicaciones para las cuales ha sido
concebido.
• No use ni almacene el aparato en lugares al aire libre.
• Utilizar en una habitación bien iluminada.
• No arrojar nunca líquido o vapor sobre personas, animales o plantas.
• No arrojar nunca líquido o vapor sobre sistemas que contengan componentes eléctricos.
• No dejar el aparato sin vigilancia cuando esté conectado. Desenchufar siempre el cable de
la toma eléctrica cuando no se utilice y antes de limpiarlo.
• No permita que el aparato se use como un juguete. Se debe prestar especial atención
cuando el aparato es usado por niños o cerca de niños, mascotas y plantas.
• No utilizar cables de extensión con este aparato.
• No manipule el enchufe ni la fregadora a vapor con las manos húmedas. No haga funcionar
la fregadora a vapor sin usar calzado.
• No colocar objetos en los orificios del trapeador.
• No tocar la parte inferior del trapeador de vapor mientras funcione. El aparato se calienta y
puede causar quemaduras.
• Utilizar el aparato sólo sobre superficies planas y horizontales. No utilizarlo sobre paredes,
mesas o ventanas.
• Para prevenir cualquier riesgo de descarga eléctrica, no sumergir el cable, el enchufe o el
aparaato en agua o en cualquier otro líquido.
• No desplazar o transportar el trapeador de vapor tirando del cable, ni utilizar éste como asa
para su transporte; no pinzar el cable con una puerta; no tirar del cordón por las esquinas o
los ángulos. Mantener el cable lejos de las fuentes de calor.
• No utilizar el trapeador de vapor sobre cuero, muebles o pisos encerados, tejidos sintéticos,
terciopelo u otros materiales sensibles al calor.
• No llene el tanque de agua desde el grifo; use sólo el depósito de llenado suministrado por
el fabricante.
• No use este aparato con un cordón o enchufe dañado. Si el aparato no está funcionando
adecuadamente, se dejó caer, se dañó, se dejó a la intemperie o se dejó caer dentro del
agua, llévelo a un centro de servicio para su inspección. Llame al 1 800 321-1134 o visite
nuestro sitio web en www.dirtdevil.com para encontrar el centro de servicio más cercano.
•No agregar al agua productos desincrustantes, aromatizantes, alcoholizados o detergentes,
soluciones limpiadoras, esencias perfumadas, aceites u otros productos químicos. Esto
podría deteriorar el aparato o hacerlo peligroso durante su utilización. Aunque este trape-
ador de vapor haya sido concebido para el agua del grifo, se puede utilizar también con
agua destilada para mejorar su eficacia y evitar los depósitos minerales.
• No utilizar el trapeador de vapor en un lugar cerrado, del que emanen vapores de pintura
de aceite, solventes para pintura, substancias antipolilla, polvo inflamable u otros vapores
explosivos o tóxicos.
• Durante su utilización, no dar la vuelta al aparato o utilizarlo cuando esté de lado.
• Retirar cuidadosamente la almohadilla de microfibras después de haber utilizado el trape-
ador de vapor.
• Antes de limpiar el trapeador de vapor, desenchufar el cable de la toma eléctrica y limpiarlo
con un paño seco o húmedo. No echar agua o utilizar alcohol, benceno u otro solvente para
pintura sobre el aparato.
• Ser siempre prudente al utilizar el aparato para limpiar escaleras.
• Utilizar en una habitación bien iluminada.
• Pendant l’utilisation, ne pas incliner l’appareil à plus de 45 degrés.
A
1.
