24
Installation

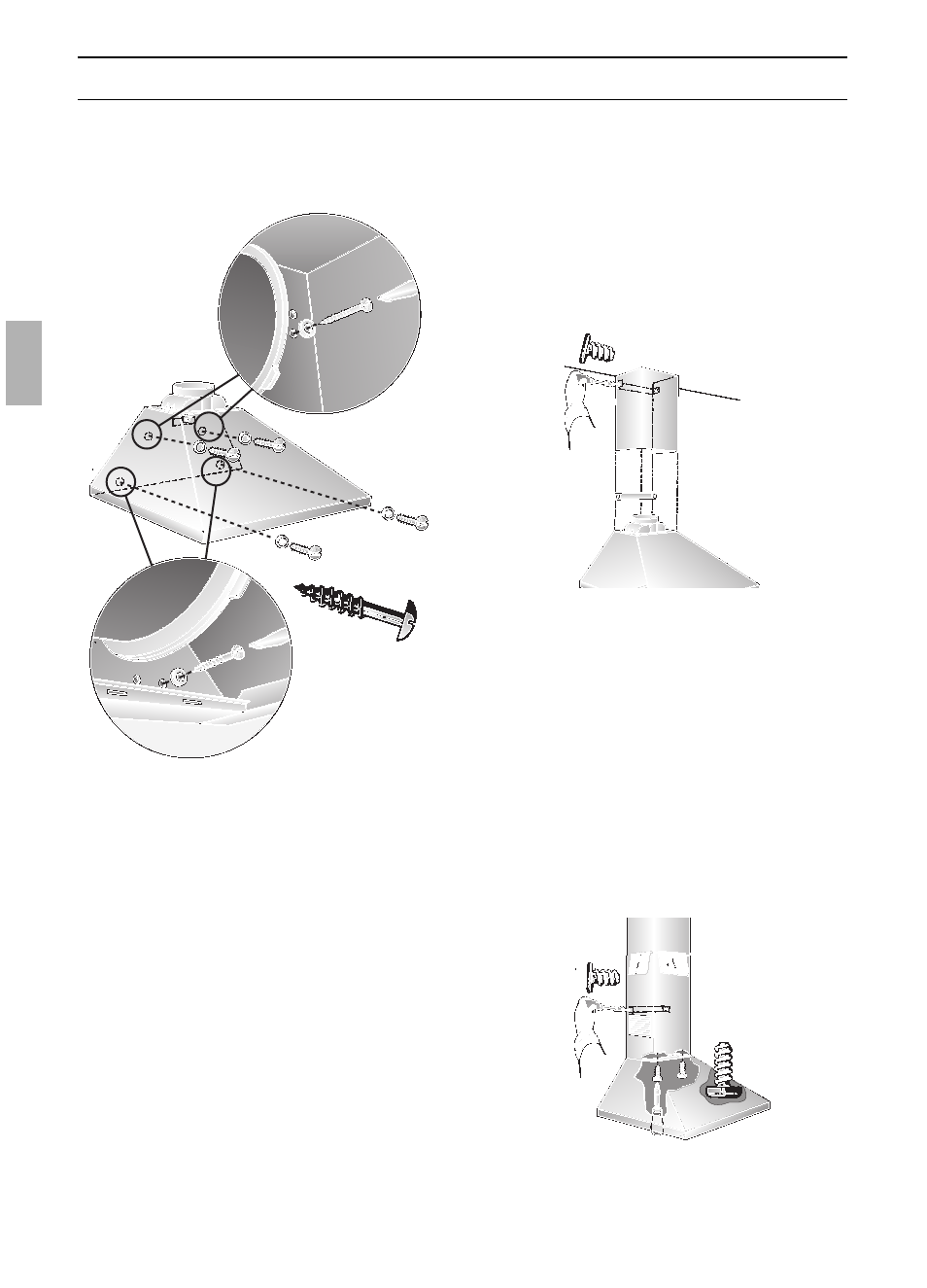

0 8. Insert the other 4 screws with washers.
ṇ
Before the 4 screws are tightened
down, align the extractor hood properly.
0 9. Connect up the air outlet pipe.
10. Connect the hood to the electricity
supply.
13. Position the lower flue duct on the
extractor hood and screw the extractor
hood to the flue duct from below with
2 long screws.
ṇ
To prevent scratching the upper
duct when pushing on the lower duct,
cover the edge of the lower duct with
the installation template or other
protective material.
Then screw the flue duct to the sides of
the fixing bracket with 2 short screws.
ṇ
Before tightening the 2 screws,
align the flue duct.
14. Re-insert the grease filter
(see operating instructions).
1.
2.
11. Stainless steel model:
❑ Remove the protective film from the
two flue ducts.
ṇ
Avoid damage to the sensitive
surface.
12. Screw the upper flue duct to the sides
of the fixing bracket with 2 short
screws.
