Operating features – Wood’s Powr-Grip PT4FS10TAIR User Manual

Page 5

Rev 2.0/12-12

PT4HV11FAIR: #35141

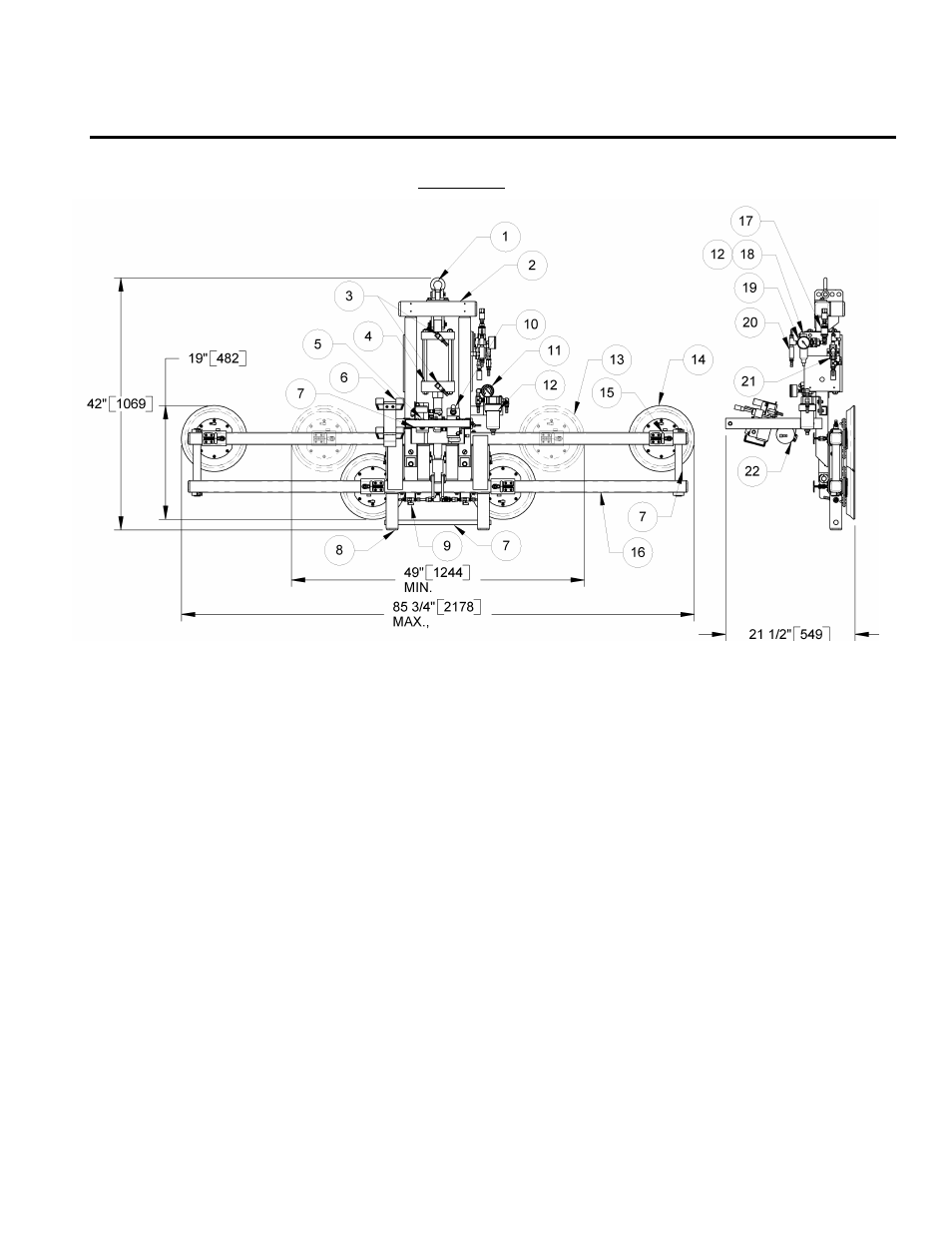

OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the vacuum lifter are underlined on their first appearance in each section.

Standard PT4HV11FAIR shown.

1 LIFT SHACKLE

8 PARKING FOOT

16 PAD FRAME

2 LIFT BAR

9 PAD SHUTOFF

17 AIR SUPPLY VALVE

3 TILT SPEED VALVES

10 TILT CONTROL VALVE

18 AIR PRESSURE REGULATOR

4 TILT ACTUATOR

11 VACUUM GAUGE

19 PRESSURE GAUGE

5 VACUUM CONTROL VALVE

12 AIR FILTERS

20 TILT MASTER VALVE

6 HOIST PENDANT BASKET

13 ALTERNATIVE PAD LOCATION

21 VACUUM PUMP (VENTURI)

7 CONTROL HANDLE

14 VACUUM PAD

22 VACUUM RESERVE TANK

15 SLIDING ADJUSTABLE PAD MOUNT
