Wood’s Powr-Grip MRTA8-AIR - Manual (Page 5)

Rev 6.0/12-12 3 MRTA8-AC: #35074
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard MRTA811LAC shown.

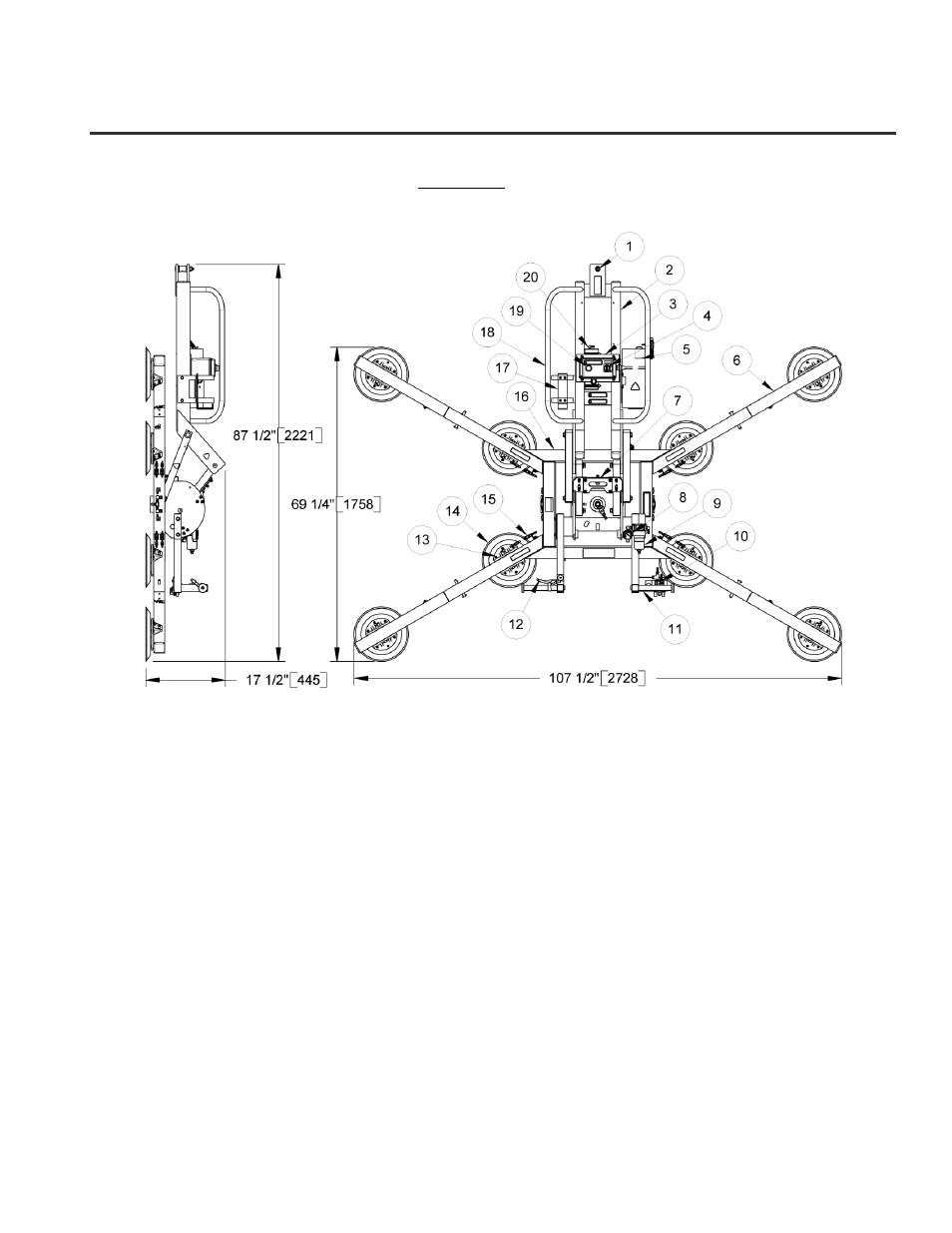

1 LIFT SPOOL 7 TILT LOCK (OPTION) 14 VACUUM PAD
2 LIFT BAR 8 VACUUM GAUGE 15 QUICK CONNECTOR
3 Enclosure with ... 9 AIR FILTER 16 PAD FRAME
VACUUM SWITCH 10 VACUUM CONTROL VALVE 17 HOIST PENDANT BASKET
4 POWER SWITCH 11 CONTROL HANDLE 18 CONTROL HANDLE
5 VACUUM PUMP 12 ROTATION RELEASE LEVER 19 VACUUM LIFT LIGHT
6 EXTENSION ARM 13 MOVABLE PAD MOUNT 20 VACUUM RESERVE TANK
