Operating features – Wood’s Powr-Grip PFHL89DC User Manual
Page 7
Rev 26.0/12-13
5
PF-DC: #35131

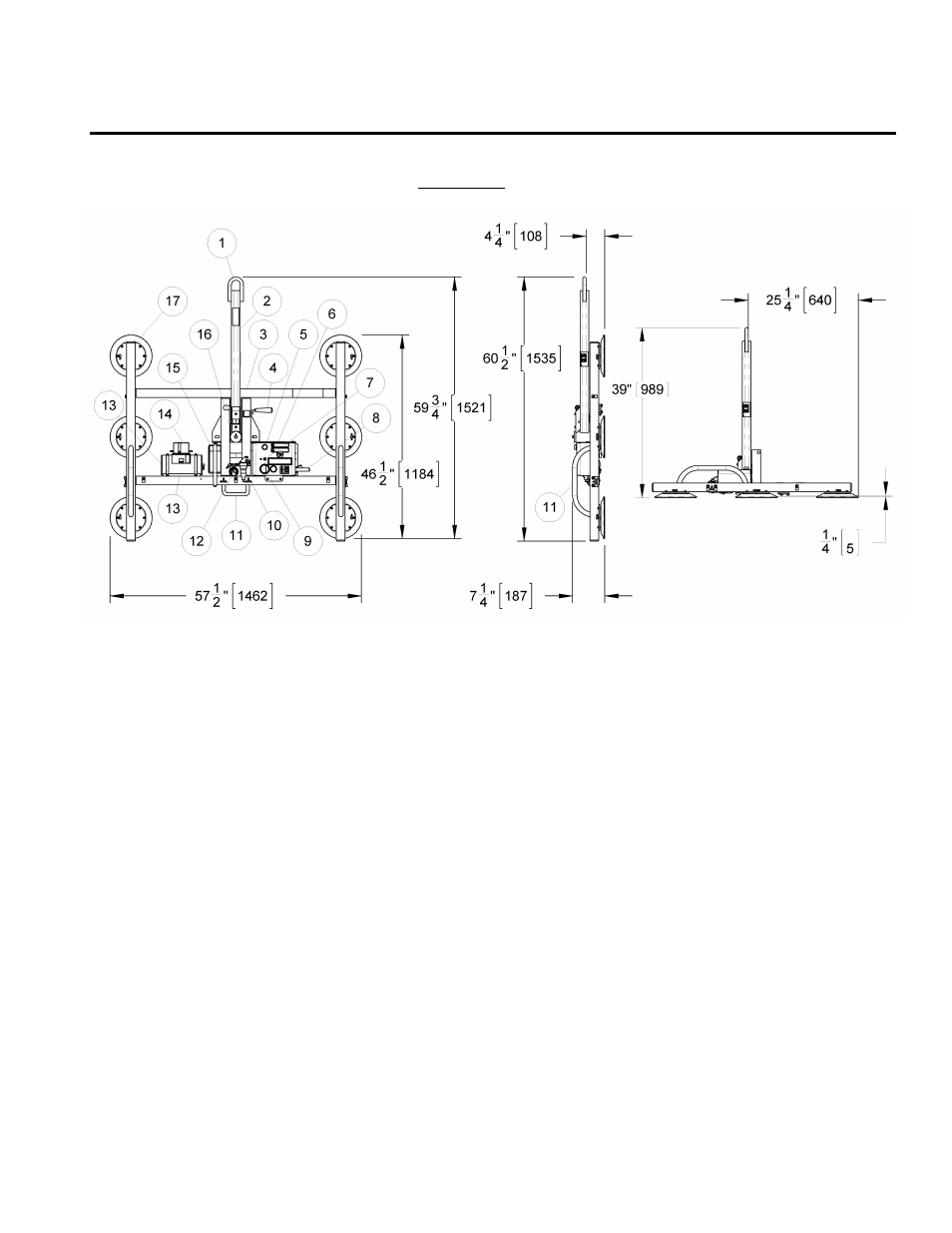

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard PFHL69DC shown.
1 LIFT BAIL
7 BATTERY TEST BUTTON
12 VACUUM GAUGE
2 LIFT BAR
8 VALVE HANDLE
13 VACUUM RESERVE TANK
3 PAD FRAME
9 BATTERY GAUGE
14 BATTERY CHARGER
4 TILT RELEASE LEVER
10 AIR FILTER
15 BATTERY
5 LOW VACUUM WARNING LIGHT
11 CONTROL HANDLES
16 ROTATION RELEASE LEVER
6 Enclosure with VACUUM PUMP, VACUUM SWITCH, and LOW VACUUM WARNING
BUZZER (if applicable)
17 VACUUM PAD
