Operating features – Wood’s Powr-Grip MRT49DCO User Manual

Page 7

Rev 12.0/5-13

MRT4-DCO-DVS: #35071

OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the vacuum lifter are underlined on their first appearance in each section.

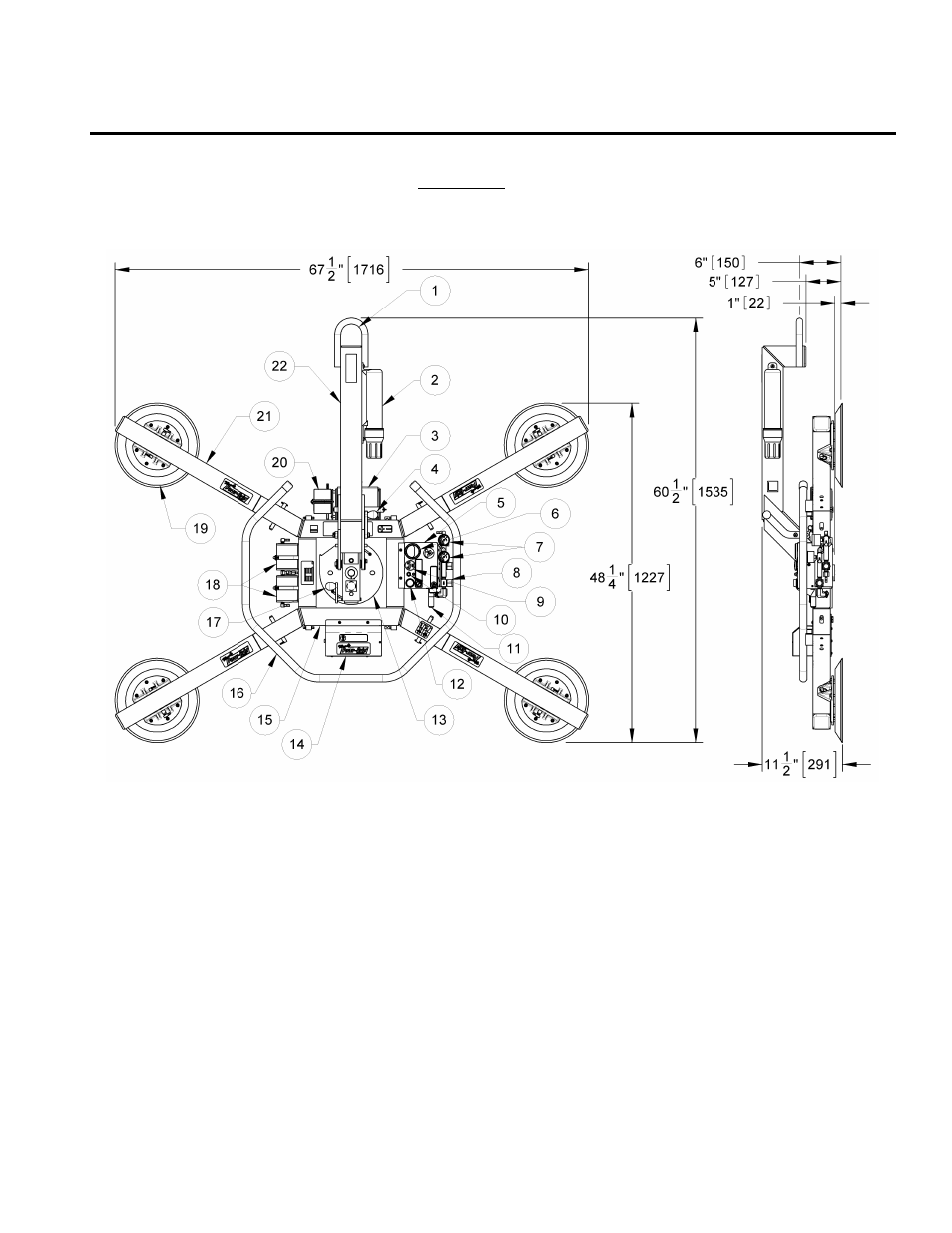

Standard MRT411LDC shown with Dual Vacuum System option.

1 LIFT BAIL

8 AIR FILTER

16 CONTROL HANDLE

2 INSTRUCTIONS CANISTER

9 LOW VACUUM WARNING BUZZER

17 ROTATION RELEASE LEVER

3 BATTERY

10 BATTERY TEST BUTTON

18 VACUUM RESERVE TANKS

4 TILT RELEASE LEVER

11 VALVE HANDLE

19 VACUUM PAD

5 Enclosure with VACUUM SWITCHES

12 LOW VACUUM WARNING LIGHT

20 BATTERY CHARGER

6 BATTERY GAUGE

13 ROTATION WEAR PLATE

21 EXTENSION ARM

7 VACUUM GAUGES

14 Cover for VACUUM PUMP

22 LIFT BAR

15 PAD FRAME
