LTC 5104, LTC 5108 Series | Instruction Manual | Illustrations
EN
|
14
Bosch Security Systems | 7 April 2004
6
ILLUSTRATIONS
6.1
LTC 5104 Series
1
6 11
2
7 12
3
8 13
4
9 14
5 10 15
Pin
Function
1
Ground
2
Alarm 3
3
NC
4
Reserved
5
Reserved
6
Alarm 1
7
Alarm 4
8
NC
9
Alarm Relay (NO)
10
Reserved
11
Alarm 2
12
NC
13
NC
14
Alarm Relay (NO)
15
Reserved
NC
No Connection
NO
Normally Open

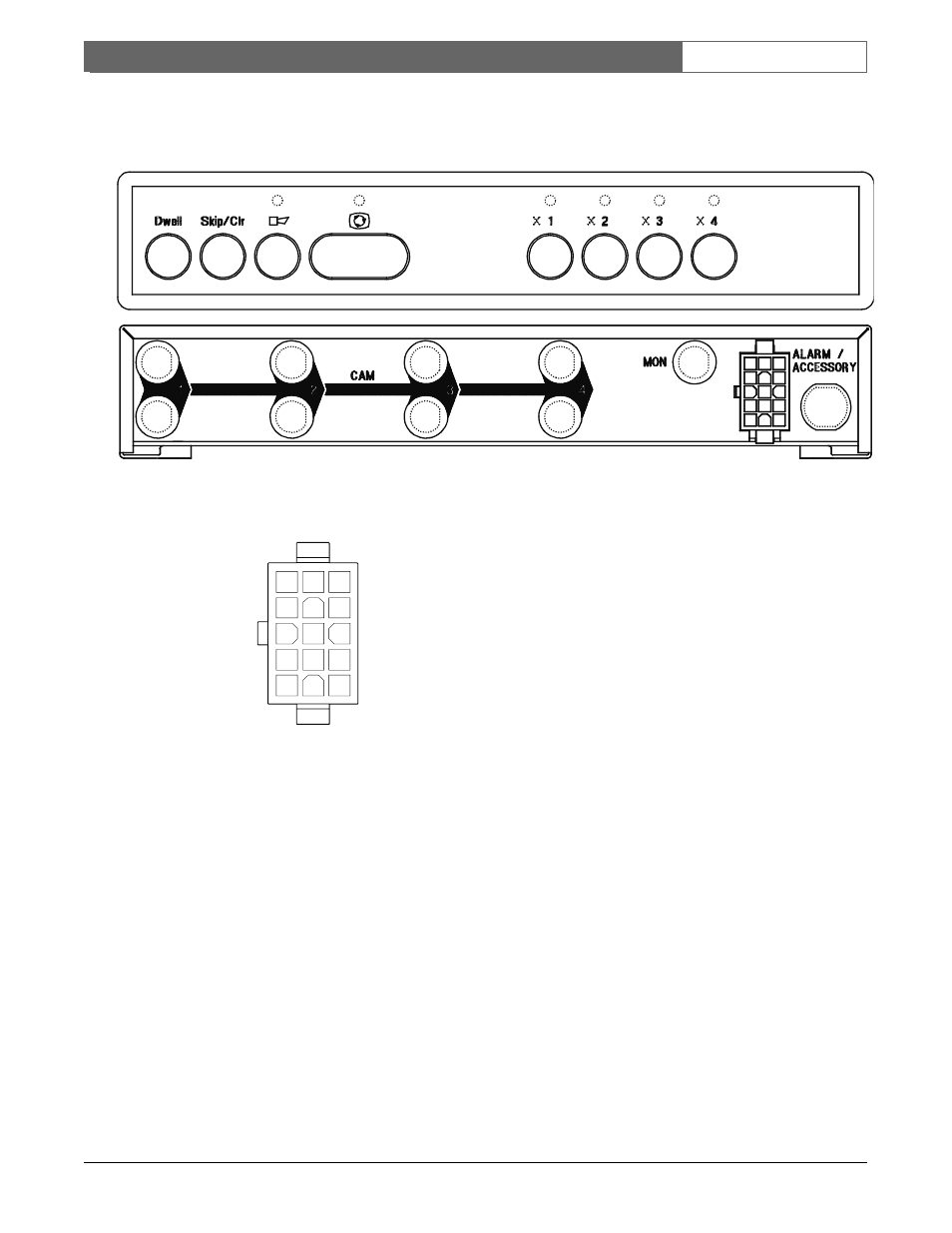

Screen 13 Front Panel and Back Panel
Screen 14 Connector Diagram
