3.3 Programmable SM-OBDII
Your DM-100 Touch includes two products in one. It combines a DM-100 and 4
programmable SM-OBDII modules into one product.
3.3.1
Termination

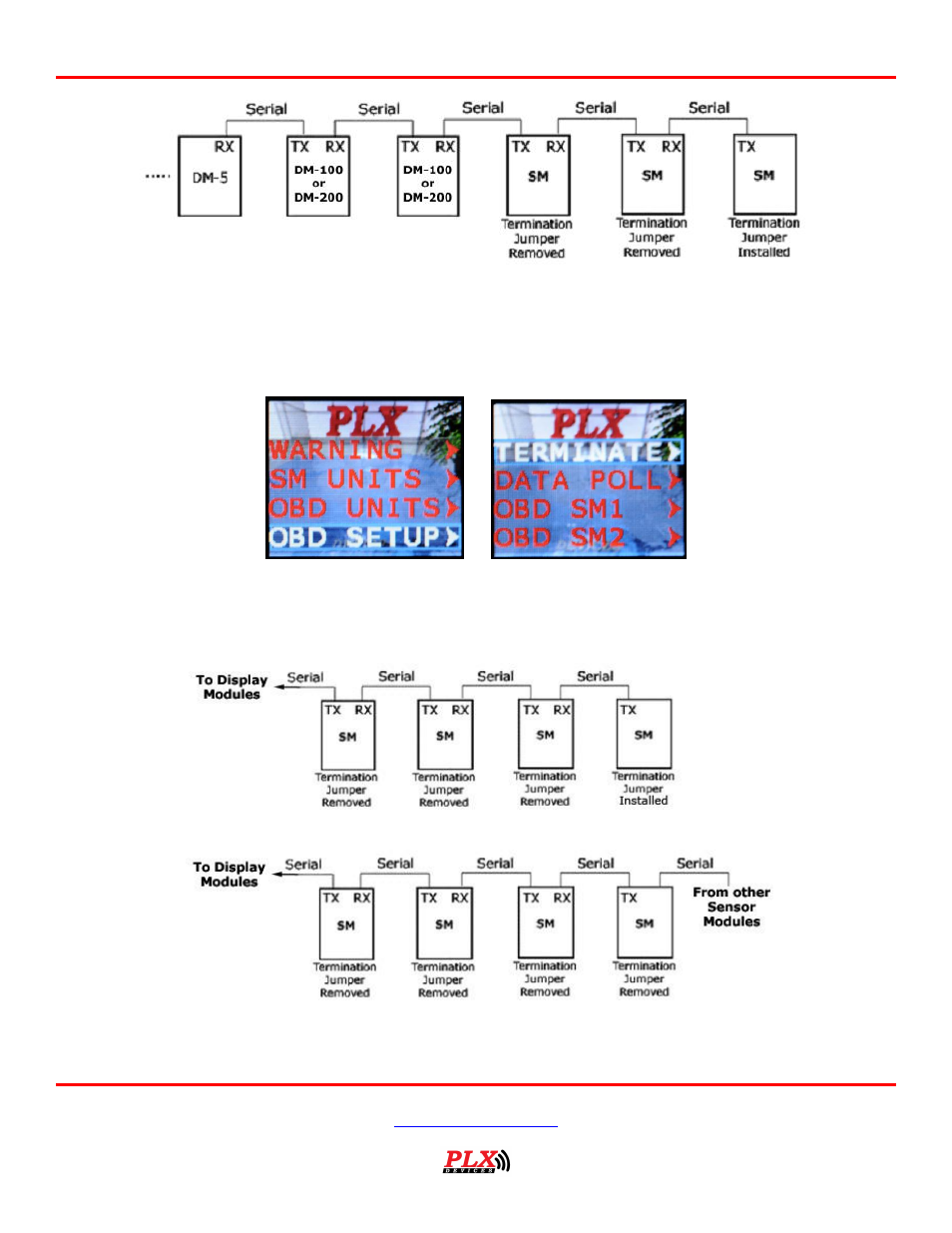

There are 2 options, Terminated and NOT Terminated. When the SM-OBD is terminated, it resembles the
following diagram
When the SM-OBD is NOT Terminated it resembles the following diagram.
