HOW TO CONNECT - ANALOG CONNECTION (when USB is not available):
"IN 1" Far-end Input: Connect system's loudspeaker output into this jack. Input level is defaulted as line
level.
"IN 2" Microphone Input: Connect your microphone into this jack. Input level is defaulted as line
level.
"OUT 1" Audio Output: Connect your amplified speakers (or amplifier) into this jack.
"OUT 2" Far-End Output: Connect to your system's audio input.

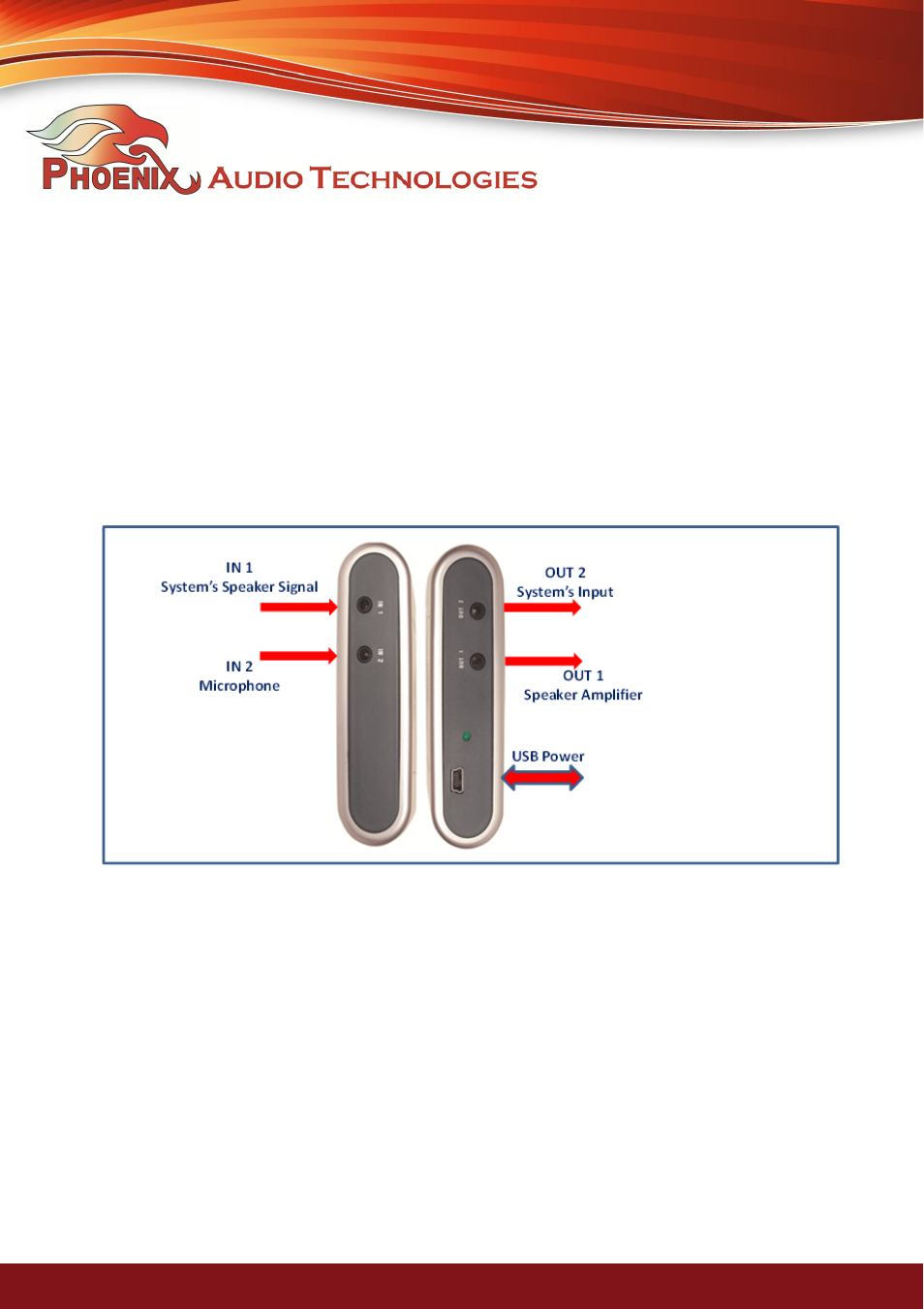

Analog Connection Diagram
