Pavement Ends 43921 Front Bumpers - Manual (Page 2)

43921 pg 2 0311 Rev. C

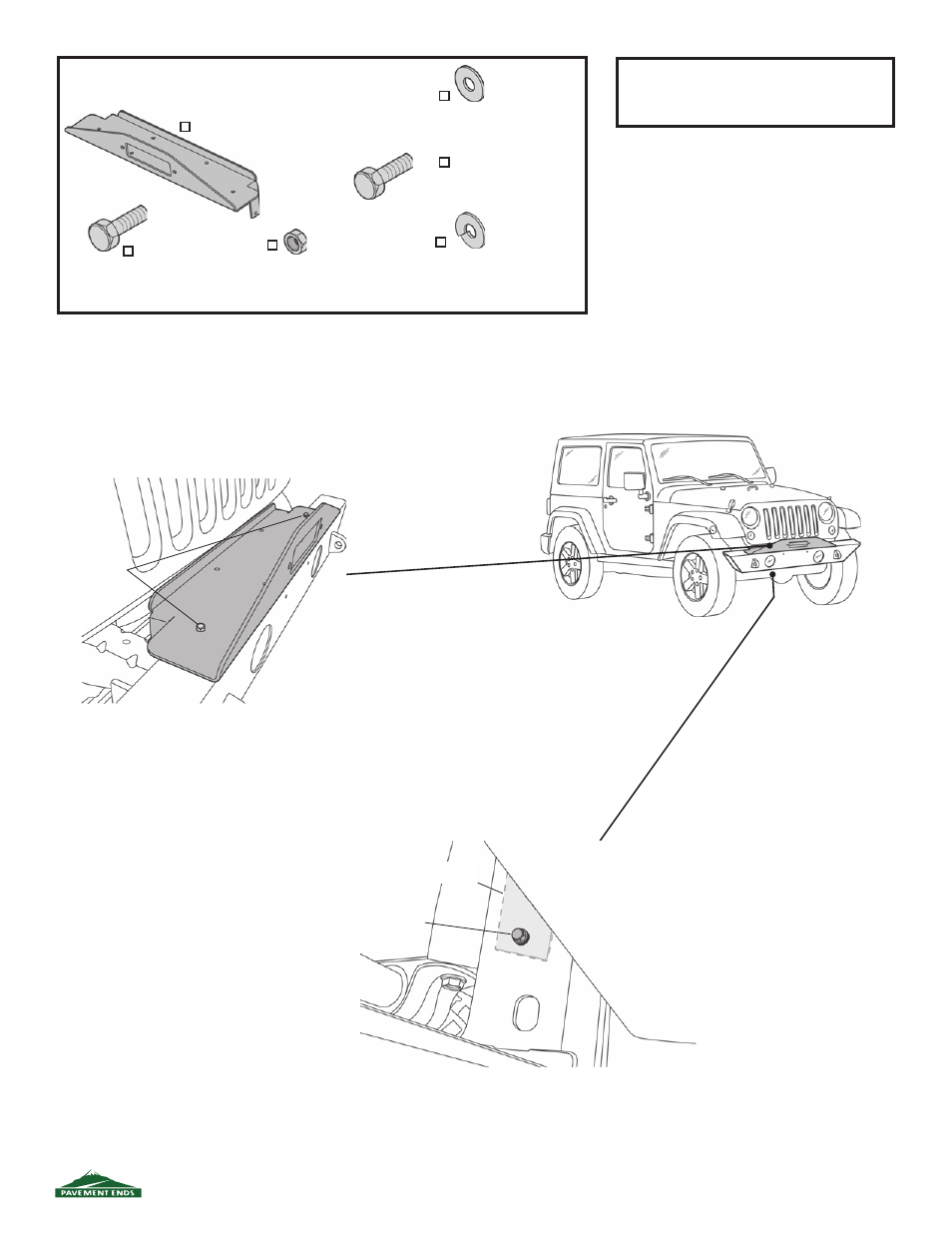

Parts List
Step One
S
ECURE
W
INCH
P
LATE TO
B
UMPER
Place the Winch Plate on top of the bumper. Line up the
outside holes in the plate with the holes in the bumper.
Install an M10 Screw and washer through top of bumper
then install a M10 Nut and Lock washer on bottom of bumper.
Tools Needed
Ratchet
17mm Socket
Winch Plate, Part
Number 481.42, Qty - 1
M10 Washer, Part
Number 481.58, Qty - 4
Step Two
S
ECURE
W
INCH
P
LATE TO
F
RAME
Use an M10 Screw, M10 Lock Washer
and M10 Washer to secure each leg of the
Winch Plate to the frame of the vehicle.
17mm Wrench
Safety Glasses
M10 Lock Washer, Part
Number 481.59, Qty - 4
M10 Nut, Part Number
482.16, Qty - 2
M10 Screws, Washers,
and M10 Nuts
Underside of
Bumper
Winch Plate -
Inside of Frame
M10 Screw, M10
Washer and M10
Lock Washer
Frame
3/8", Part Number
481.43, Qty - 4
Used for Winch Installation
M10 Screw, Part
Number 485.46, Qty - 4
