Parts List
Step One
R
EMOVE
THE
O
RIGINAL
B
UMPER

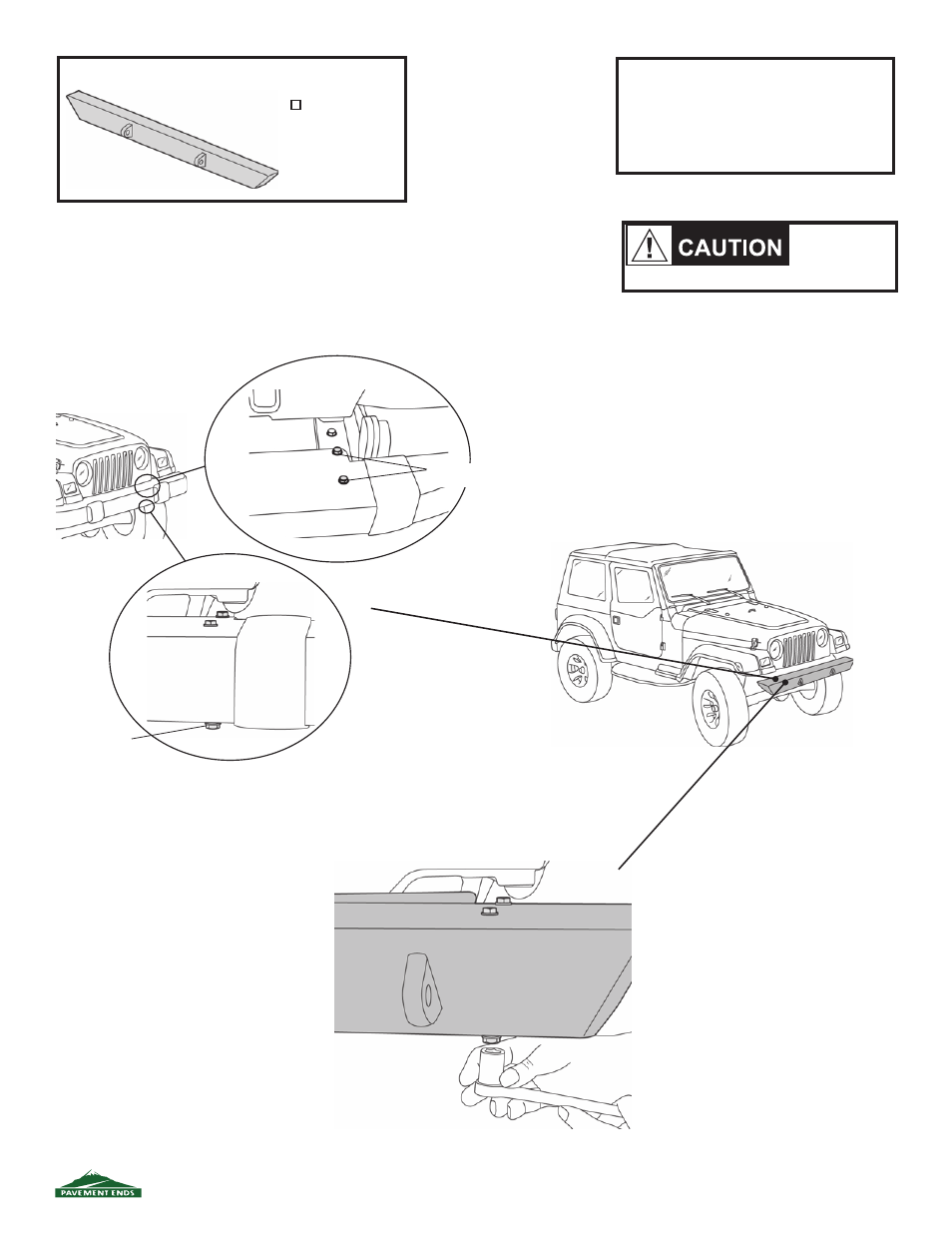

Use a socket wrench with an T55 Torx Socket to remove the
two (2) bolts on the top of the bumper on each side, four (4)
bolts altogether. When these are removed, use a 19mm sock-
et to remove the bolt underneath the bumper on each side.
Set these bolts aside to be used to install the Front Bumper.
Step Two
I
NSTALL
B
UMPER
Lift the Front Bumper Assembly onto the
front frame rails on the vehicle. Reinstall
the hardware that was removed in Step 1.
Tools Needed
Ratchet
19mm Sockets
T55 Torx Socket
3/16" Allen Wrenches
Safety Glasses
Front Bumper, Part
Number 479.14, Qty - 1
Two or more
people may be
required to lift the bumper safely.
Bumper
Remove 19mm
Bolt
Remove Torx
Bolts
Bumper
