MTS Acumen User Manual
Page 147

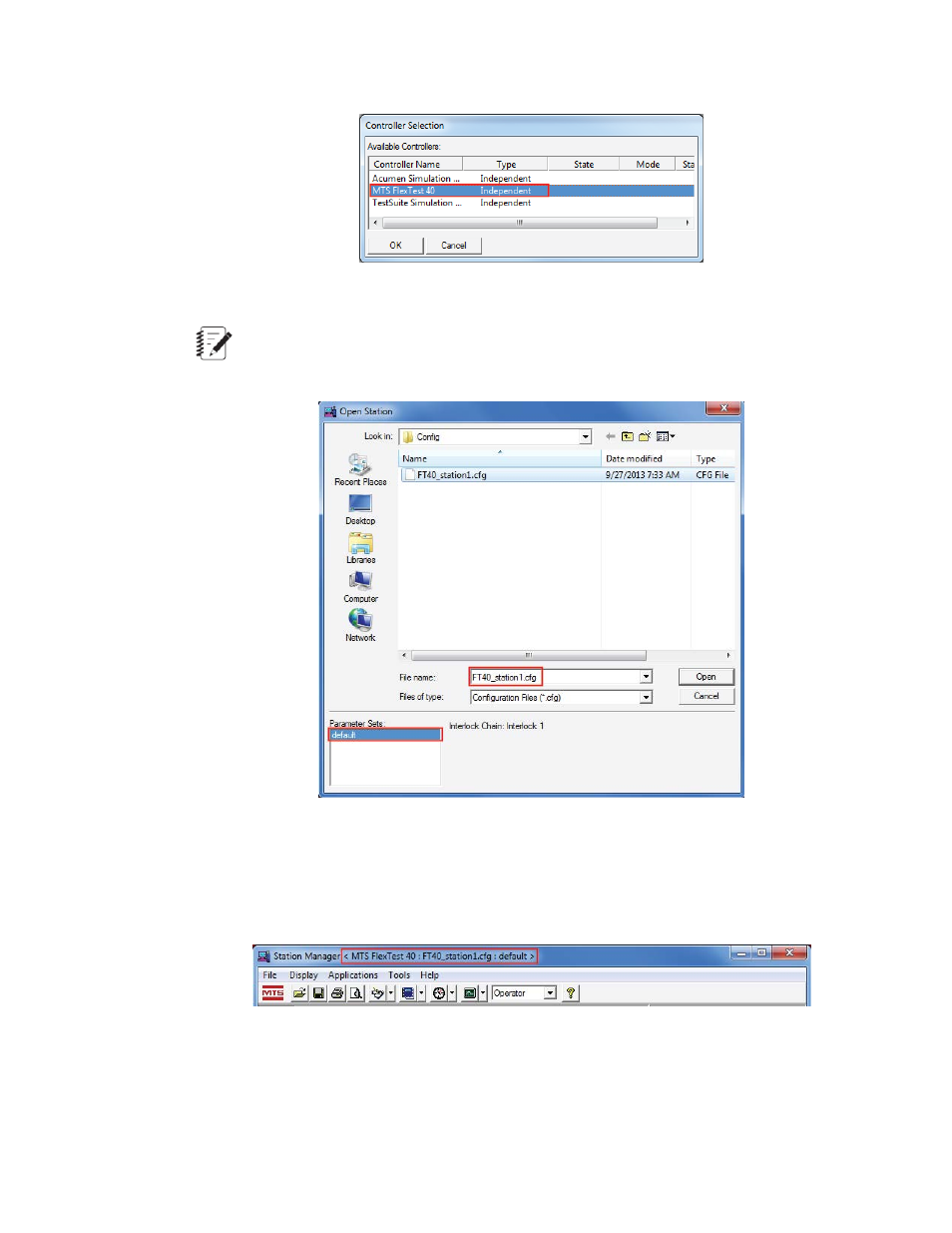

At the controller selection window, select the controller for the station that you are using (for example,
MTS FlexTest 40).
Note: This window may not appear in all cases.
d) Select a parameter set and configuration.
1. Select a configuration. Select the configuration file recommended by your lab experts (e.g.
FT40_station1.cfg) but do not click Open yet.
2. Select a parameter set. Parameter sets are found in the lower left corner of the Open Station
window. Select a parameter set recommended by your lab experts (for example, default) and
then click Open.
e) Identify the current configuration and parameter set.
The configuration and parameter sets currently in use are shown in the title bar of the Station Manager
application (for example,
2. Ensure that all Station Manager detectors are properly set.
MTS Acumen
™
| 147
