MK-1280 ELECTRIC SAW MAINTENANCE
Like most cutting instruments, a diamond blade performs best when it is dressed. Over time and
use, diamonds on the outer edge will become smoothed or “glazed” over. This will reduce grinding
efficiency and may cause the blade to “wander” or bend giving the illusion of an alignment problem.
When this occurs, the blade will need to be dressed. The diamond blade can be dressed using the
MK Dressing Stick (part number 152792) and by following the steps below.
BLADE DRESSING
All four (4) Movable Cutting Table, Roller Wheels should be replaced at the same time
(MK Diamond Part No. – 133090)

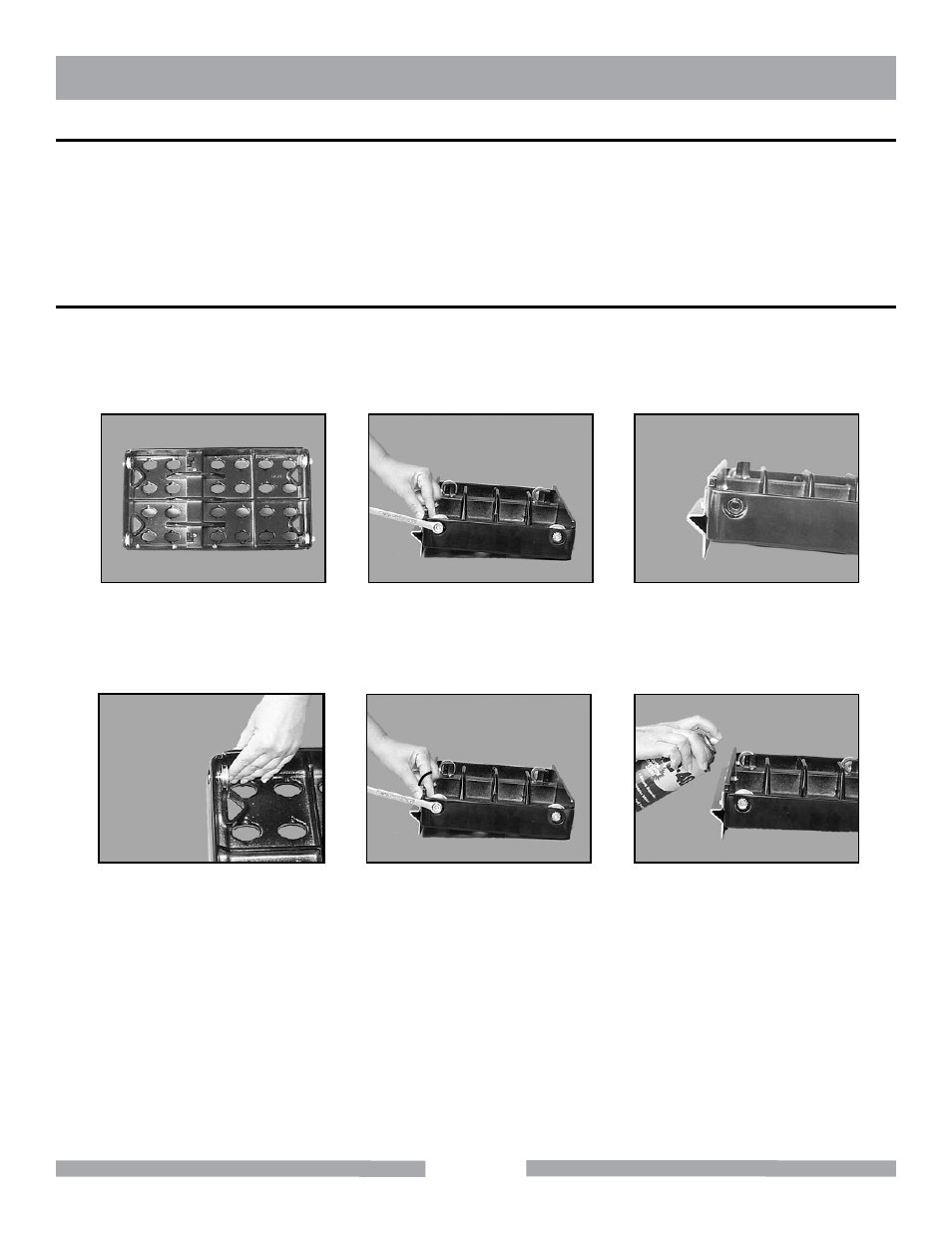

MOVABLE CUTTING TABLE WHEEL CHANGE OUT
NOTE:
Fig. A
Place Movable Cutting Table
on work bench with Roller
Wheels up
Fig. B
Remove Roller Wheels
Fig. C
Clean holes for Installation of
new Roller Wheels
Fig. D
Install Wheel/Washer Assem-
bly into Movable Cutting Table
Fig. E
Remove Roller Wheels Re-
taining Nut - tighten
Fig. F
Lubricate roller Wheels
