TC Hub connected to MXL and EVO
User manual
Release 1.01
1
Chapter 2 – Configuration on MXL – EVO
At the very first installation, TC Hub is to be configured as MXL and/or EVO expansion
using Race Studio 2 software. After this it will be automatically recognised at each
network start. In this example TC Hub is connected to MXL Pro05.

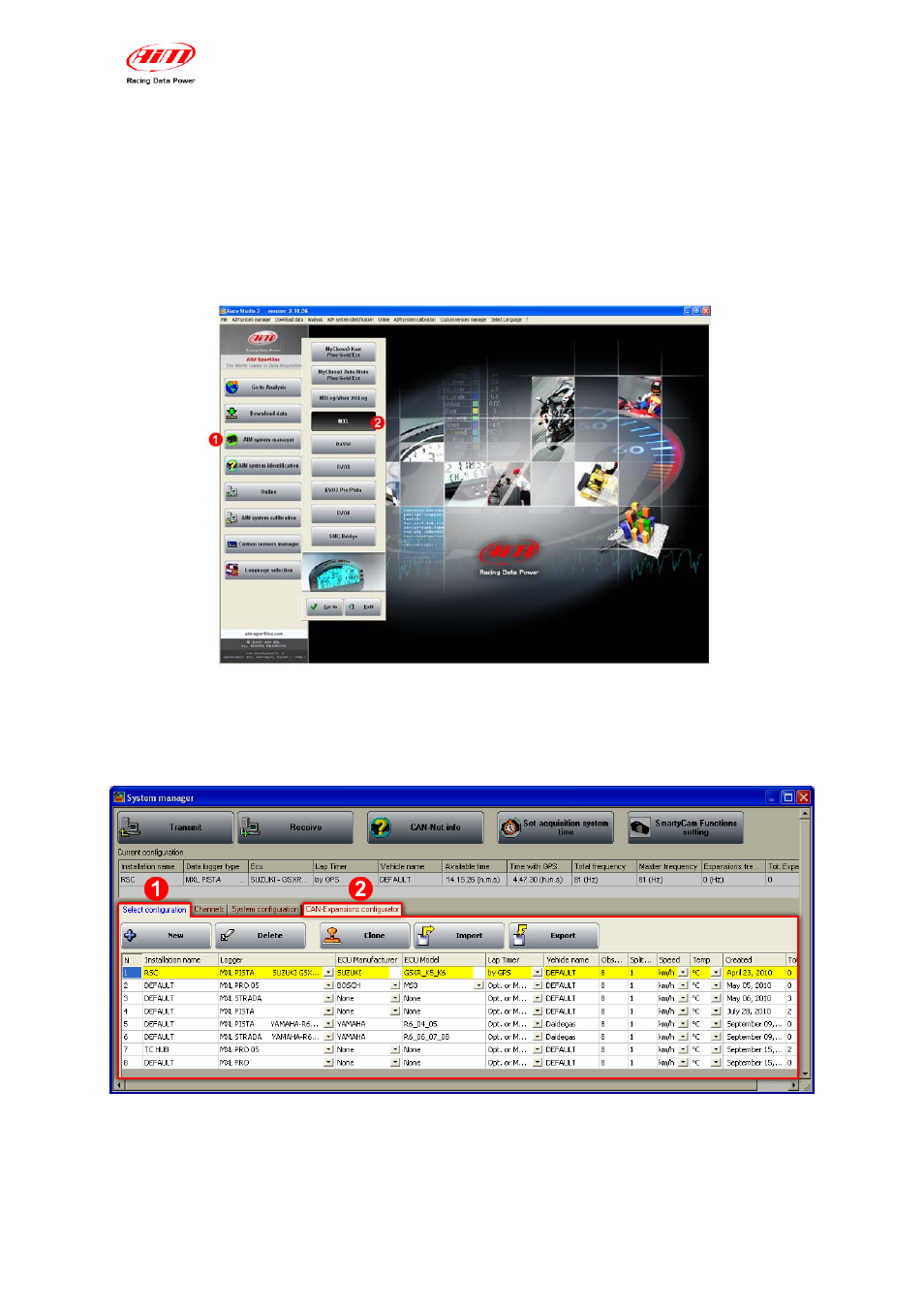

To configure TC Hub run Race Studio2 software, press “AIM System Manager” (1) and
select the proper logger (2) as shown here below.
“System Manager” window appears showing “Select configuration” layer (1). Select the
configuration TC Hub is to be added to (it will be highlighted in yellow as here below) or
create a new one and then select “CAN Expansions configurator” (2) layer.
www.aim-sportline.com 3
