141
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
SVENSKA
ESPAÑOL
PORTUGUÊS
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
1 4 7 10 13 16 19
3 6 9 12 15 18
2 5 8 11 14 17 20
C-1 C-2 C-3
RC 08

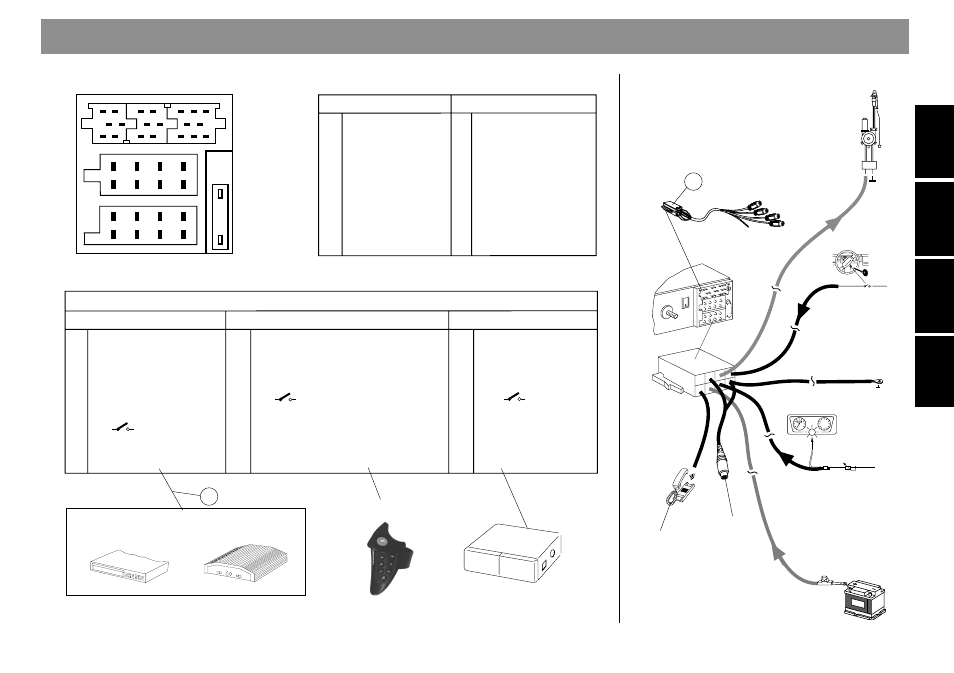

Fig.10
A B
1 — 1 Speaker out RR+
2 Telefon Mute 2 Speaker out RR-
3 Sub Out 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF-
5 Aut. antenna 5 Speaker out LF+
6 Illumination 6 Speaker out LF-
7 Kl.15/Ignition 7 Speaker out LR+
8 Ground 8 Speaker out LR-
C
C1 C2 C3
1 Line Out LR 7 - 13 Bus - In
2 Line Out RR 8 - 14 Bus - Out
3 Line Out Masse / Ground 9 - 15 -
4 Line Out LF 10 FB + 12V / RC +12V 16 12V
5 Line Out RF 11 Fernbedienung / Remote Control 17 Bus - Masse / GND
6 +12V Amplifier 12 FB - Masse / RC - GND 18 AF - Masse / GND
19 Line In - L
20 Line In - R
CD-Changer
Installation and connection instructions • Notice de montage et de branchement • Instrucciones para la instalación y conexión •
Instrução de montagem e de conexão
Amplifier Equalizer
H
Sub - Out
Telefon Mute
activ-(low)
Relais
10A
12V
Kl.15 +12V
12V
H
