MIC Series 500 Camera Mounting | en 15
Bosch Security Systems, Inc. User’s Manual F.01U.173.601 | 2.0 | 2010.11

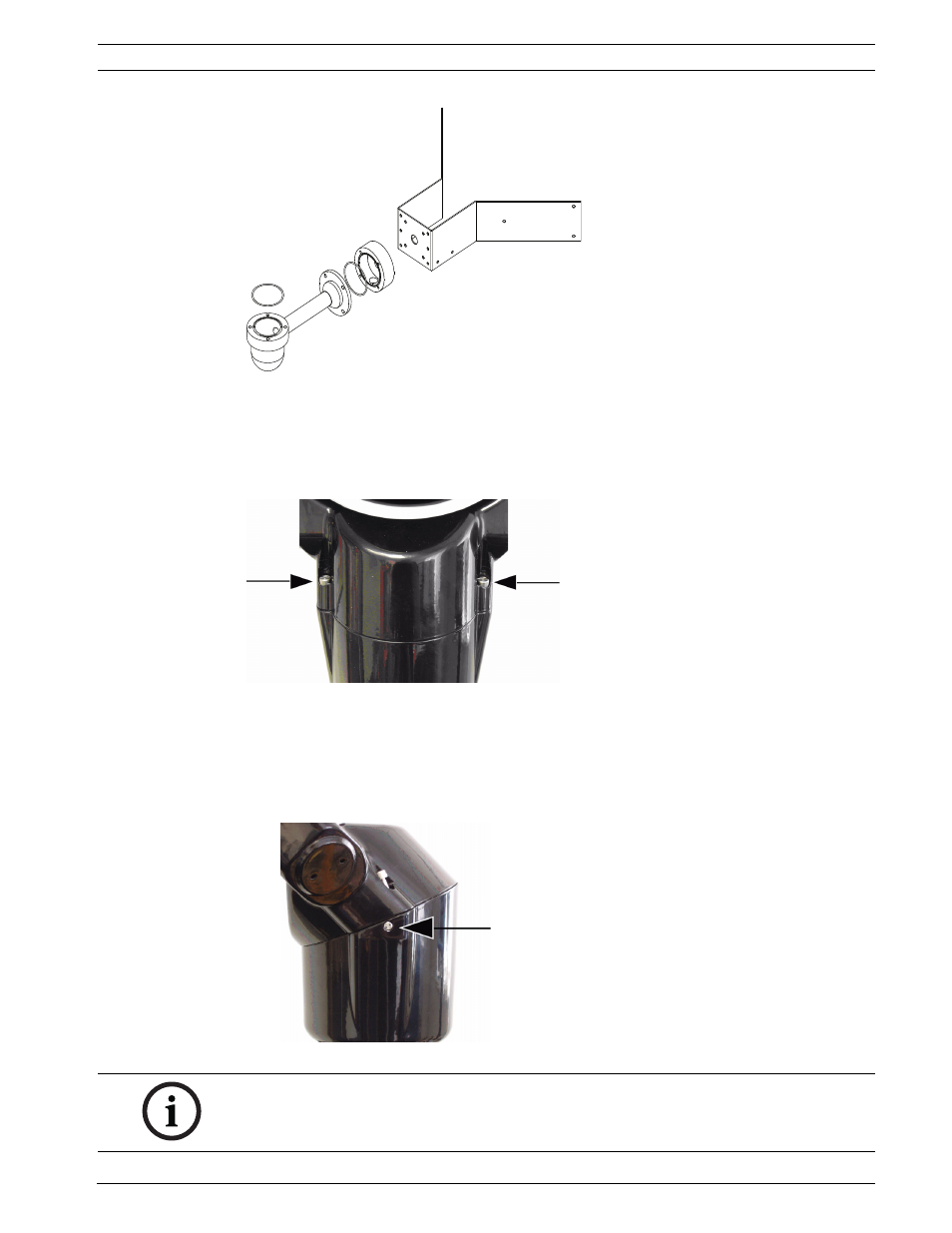

Figure 4.3 Typical wall corner mounting arrangement (MIC-CMB, MIC-SCA and MIC-WMB)
4.1 Adjusting the MIC 500 Series Camera
The MIC 500 Series Camera is suitable for adjustment from the upright position (90°) to a
canted (45°) position.
Figure 4.4 Pan body fixing screws
To adjust the MIC 500 Series Camera, follow these steps:
1. Firmly secure the camera base by the 4 inch PCD foot bolts.
2. Locate and remove the two (2) pan body fixing screws. Once the screws have been
loosened, lift them up and continue turning to lock the screws open. Ensure not to
damage the paint work on the camera.
Figure 4.5 Security screws
NOTICE!
The small security screws are not designed to be removed. Any attempt to remove these
screws will void the warranty and potentially cause serious damage to the camera.
