11
PureFlow AirDog
Raptor
™ 100 & 150
2003
– 2004 Dodge Cummins
Section 5 Fuel Lines
Connecting the Raptor™ to the Filter Canister/Filter Head,
cont’d.
5A-4 Any excess fuel hose can be addressed by routing the hose in a fashion to take up the
extra length, or a section of the hose can be removed. Push lock splices have been
included if you choose to remove the excess hose.
Section 5B: Fuel Suction Line for Raptor.
NOTE: If you purchased kit R2SBD356 (W/ In-tank pump), follow the instructions in the fuel
module upgrade kit. Otherwise proceed to 5B-1

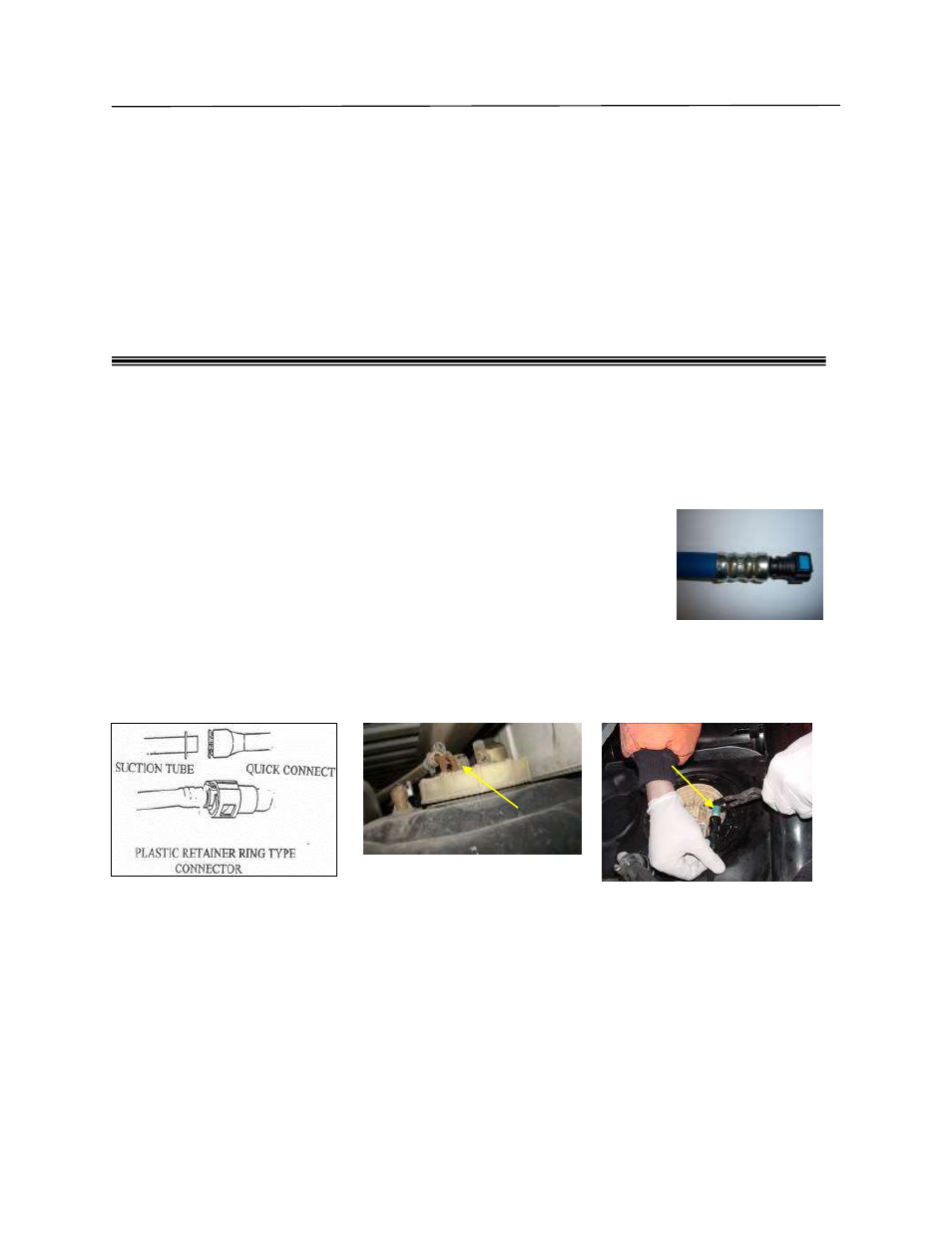

5B-1. Insert the female quick connect end (see figure 11) of the
“Suction Hose Assembly” to the male fitting install in the fuel
“IN” port during step 4-1 of this manual. A “click” will be heard
when the fitting is properly connected.
Figure 11
5B-2. Remove the original fuel suction line Quick Connect fitting from fuel tank by squeezing
the tabs on the end of the connector together. Consult factory manual if unsure.
Suction Tube
Quick Connect Fitting
View From Beneath Bed
Figure 12 Figure 13 Figure 14
In More Detail
To release the quick-connect fitting from the fuel tank suction tube, push the fitting toward the
suction tube while firmly holding the plastic retainer ring into the fitting. With the plastic ring
firmly depressed, pull the fitting assembly from the suction tube. Use care to hold the retainer
ring square to the Quick Connect Fitting body. It may be difficult to disconnect the fitting if the
retainer is cocked or becomes cocked during removal.
Fuel Return Tube
