*Specific hydraulic fluid specifications are shown below.
**Capacities are approximate - check level to be sure.
Hydraulic Fluid Specifications:
Grade, ASTM 215
Grade, AGMA 1
Gravity, ° API 31.0
Color, ASTM 2.0
Flash Point COC, ° F 440
Fire Point, COC. ° F 490
Pour Point, ° F -30
Replacement Filter Elements
Hydraulic Oil Filter ..............................
Transmission Filter..............................
Engine Oil Filter..................................
Engine Fuel Filter................................
Engine Air Cleaner..............................
Tire Specifications
Tire Specifications:
Standard: 13:00 x 24-8 ply rating-55 psi
Optional for front only: 15:50 x 25-8 ply rating-55 psi
Model 534B-8 (8000 pound rating) must have tires filled to 90% of capacity with calcium chloride mixture (49 gallons of
water and 245 pounds of calcium chloride per tire).

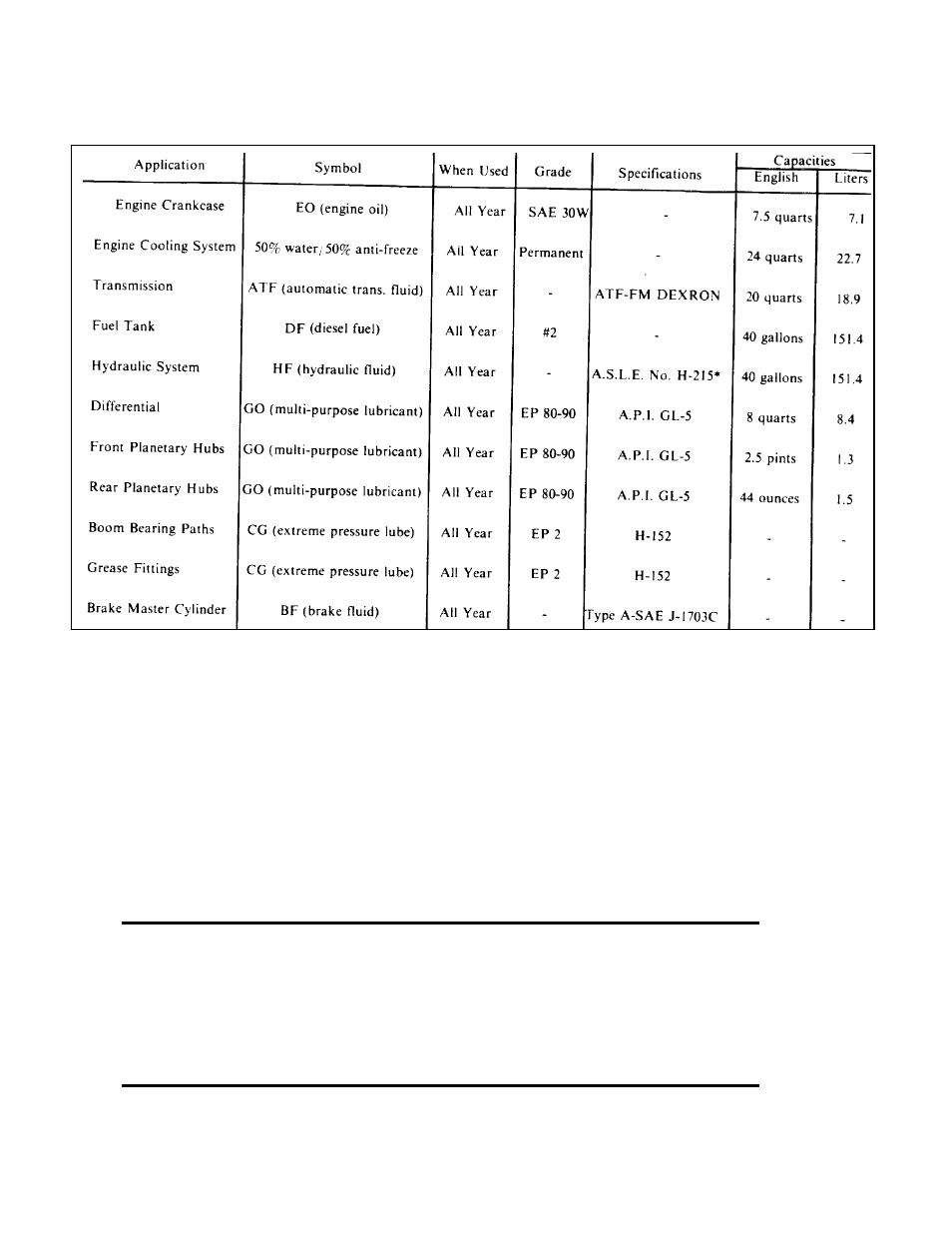

Recommended Lubricants & Capacities
Viscosity:
SUS at 100°F
SUS at 210°F
Viscosity Index
Aniline Point, °F
Foam Test, ASTM
Neutralization Number
215
48.0
105
222
Pass
1.4
Carbon Residue, Rams. wt
Zinc, wt%
Rust Test, ASTM D 665 A&B
Oxidation Test, ASTM D 943,
hours to Neut. No. of 2.0
Emulstion Test, ASTM D 1401
minutes to pass at 130°F
Copper Corrosion 3 hr. at 212°F 1B
0.4
0.08
Pass
2500
10
1B
9020-7906
9020-4732
9020-6263
9020-6260
9020-6222
2 0
