CJ, YJ, TJ, JK Rock Door 3 Kit 88000, 88001, 88002

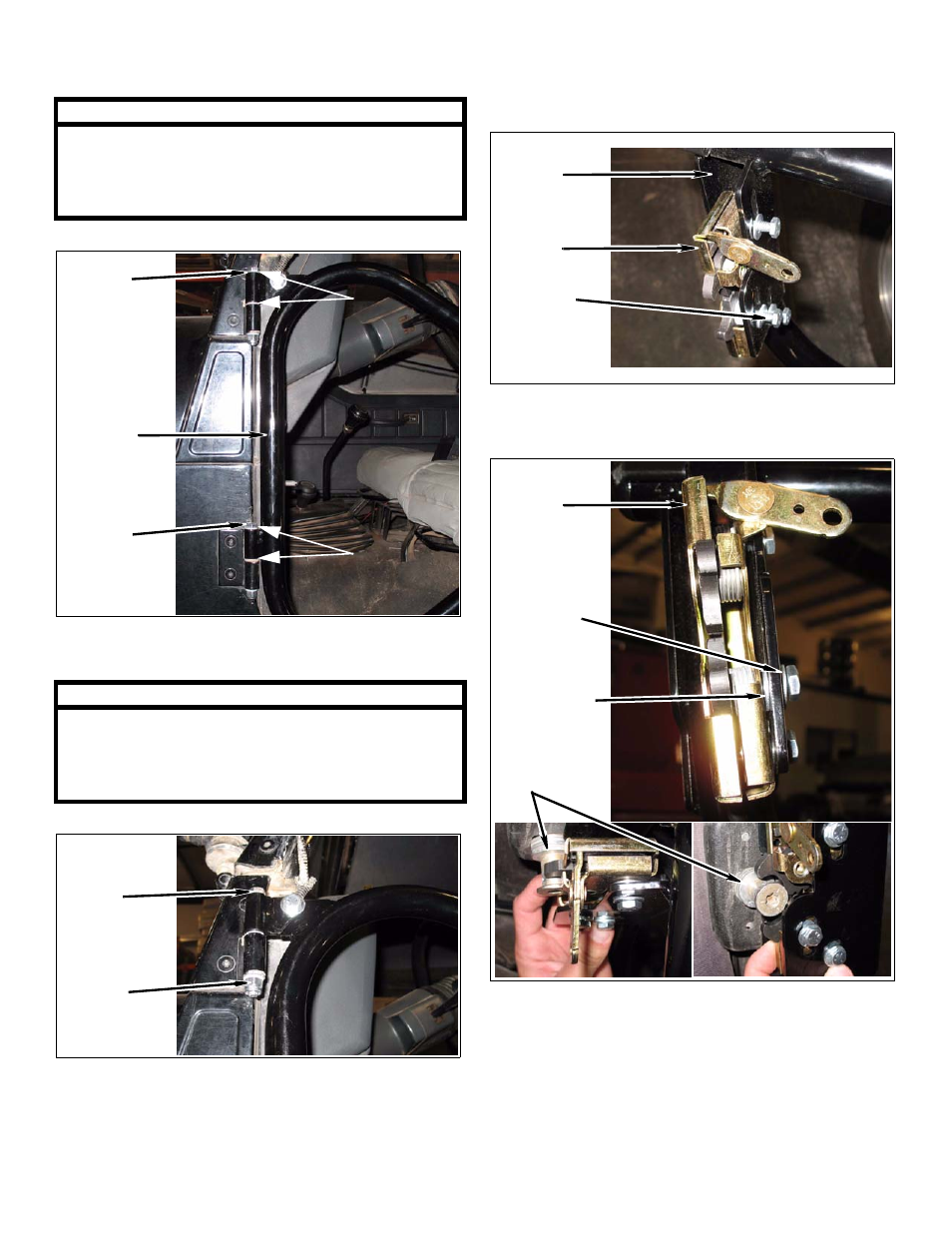

e. Install kit door (driver) onto two O.E. hinges with
two kit bolts and four kit washers (nylon)
.
f. Install two kit washers and two kit nuts onto two
kit bolts. DO NOT OVERTIGHTEN.
g. Adjust kit door (driver) and TIGHTEN kit bolts.
NOTE
CJ, YJ, TJ models: kit bolts (3/8”-16 x 3-3/4”) and kit
washers (3/8” nylon)
JK Models: kit bolts (7/16”-14 x 3-3/4”) and kit wash-
ers (7/16” nylon)
NOTE
CJ, YJ, TJ models: kit washers (3/8” nylon) and kit
nuts (3/8”-16 Nylock) onto kit bolts (3/8”-16 x 3-3/4”).
JK Models: kit washers (7/16” nylon) and kit nuts (7/
16”-14 Nylock) onto kit bolts (7/16”-14 x 3-3/4”).
Kit Bolt
(3/8”-16 x
3-3/4”)
Kit Washers
(3/8” Nylon)
Kit Door
(Driver)
Kit Washers
(3/8” Nylon)
Kit Bolt
(3/8”-16 x
3-3/4”)
Kit Bolt
(3/8”-16 x
3-3/4”)
Kit Washer
(3/8” Nylon),
Kit Nut
(3/8”-16
Nylock)
CJ, YJ Models:
h. Temporarily install kit latch (driver) onto kit door
(driver) with three kit bolts (1/4”-20 x 1”). DO
NOT TIGHTEN.
i. Position center of kit latch (driver) with door
catch on body. Space kit latch accordingly with
kit washers (1/4” SAE).
Kit Door
(Driver)
Kit Latch
(Driver)
Kit Bolts
(1/4”-20 x 1”),
Kit Washers
(1/4” SAE)
Kit Latch
(Driver)
Kit Bolts
(1/4”-20 x 1”),
Kit Washers
(1/4”SAE)
YJ Models:
Kit Washers
(1/4” SAE)
Catch
