Sequence input connection with NPN/PNP
transistor

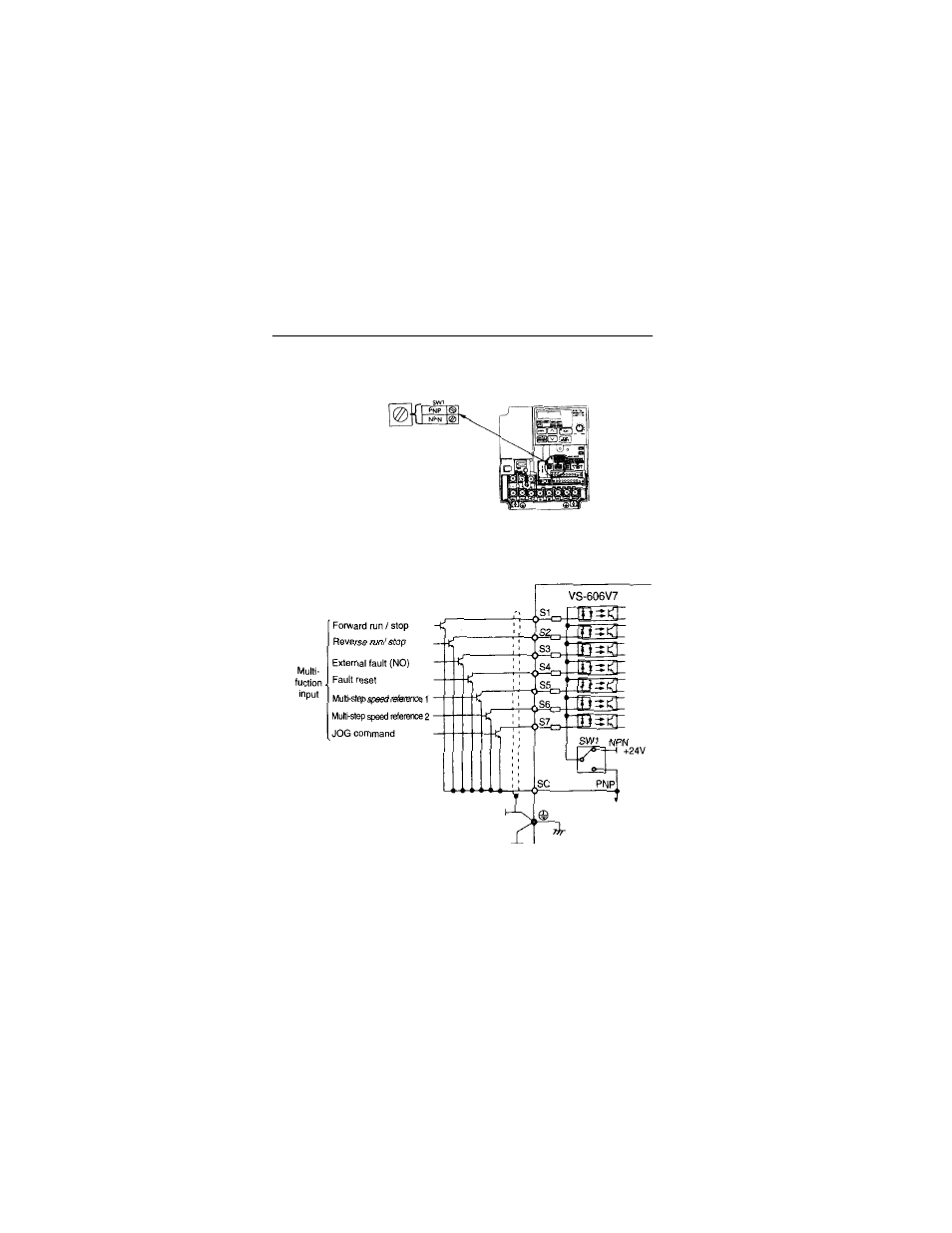

Sequence connection with NPN transistor (0V common)
When connecting sequence inputs (S1 to S7)
with transistor, turn the rotary switch SW1
depending on the polarity (0V common: NPN
side, +24V common: PNP side).
Factory setting: NPN side
