Checking for Gas Leaks
Check for gas leaks every time you connect your Broil-
master ® propane gas grill to a Propane gas cylinder, when
a connected cylinder has not been used recently, or when
either a natural or propane grill is being used for the first
time.
Caution: Do not use an open flame when checking for
leaks. Checking for leaks with an open flame may lead
to a fire or explosion, resulting in property damage or
personal injury.
To check for gas leaks:
1. Use dish washing liquid and a little water to make a
soapy solution.
2. Turn OFF the knob on the control panel.
3. Turn ON the gas at the supply or cylinder. A hissing
sound indicates a leak. Turn OFF the gas and repair
the leak.
4. Apply the soapy water solution to all gas connec-
tions.
5. Look for bubbles. Bubbles indicate a leak.
6. If there are bubbles turn OFF the gas and repair the
leak.
7. Turn the gas back ON and repeat the above procedures
until all leaks are repaired.
Operating Instructions
Using the Igniter
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. With the grill lid open, push and turn the burner control
knob COUNTERCLOCKWISE to Hi.
4. Push and hold the igniter button until the burner lights
(approximately 5 seconds).
5. If a burner does not light, turn OFF all gas and refer
to the Troubleshooting section of this manual.
Air Shutter Adjustment
The venturi air shutter(s) are preset at the factory so that
after five minutes the burner flames are blue with well
defined cones. If, after five minutes the flame is yellow,
or there is a gap between the burner and the flame, adjust
the venturi air shutter as follows:
1. Turn gas OFF and let the burner cool.
2. Loosen shutter set screw
3. Close the air shutter to the minimum opening. Refer
to Figure 5.
4. Light the burner, wait five minutes and then carefully
open the air shutter until the flame is blue and well
defined.
5. Retighten the set screw.
O
peration -
P
ropane &
N
atural
G
rills
Operating Instructions
Using Matches
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. Open the grill lid.
4. Insert a burning long wooden match through the lighter
hole on either side of the grill.
5. Turn the burner control knob COUNTERCLOCK-
WISE to HI.
6. If a burner does not light, turn OFF all gas and refer

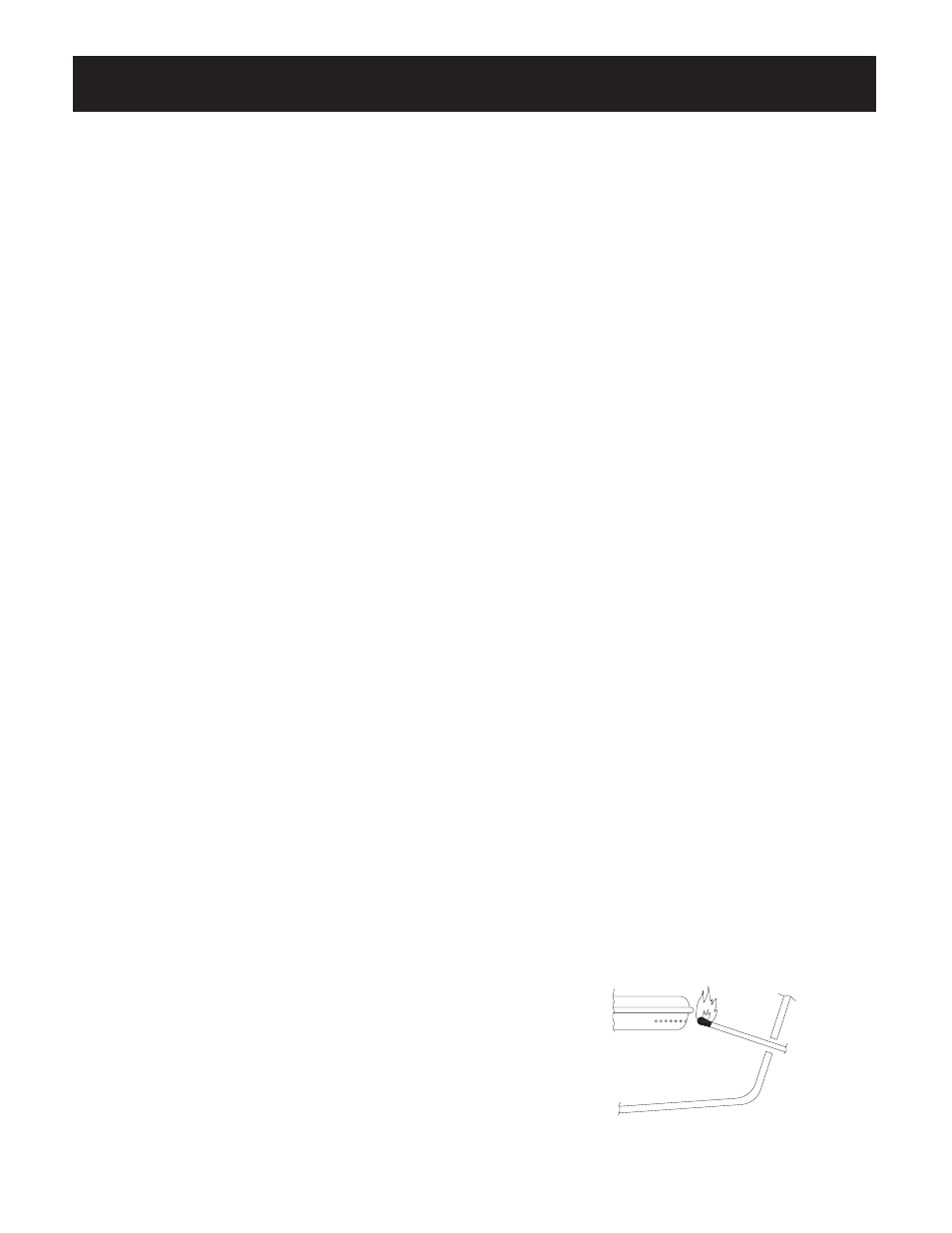

to the Troubleshooting section of this manual. Figure
15.
Figure 15
