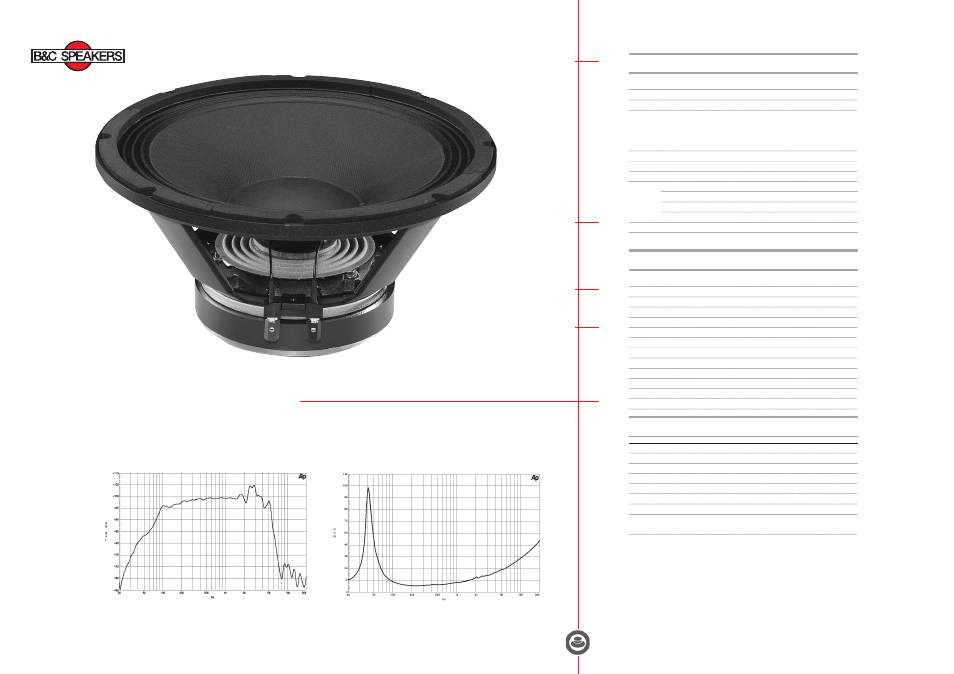

High efficiency 12" woofer using a 2.5" aluminium voice coil.
Smooth, extended frequency response and very good LF
performance in compact bass-reflex enclosures makes it an
optimal choice for a two-way system.
Specifications
Nominal Diameter 320 mm (12 in)
Nominal Impedance 8 Ω
Minumum Impedance 6.5 Ω
Power Handling
(60 –600 Hz)
Nominal
1 250 W
Continuous Program 2 500 W
Sensitivity (1W/1m) 3 99.5 dB
Frequency Range 45-4000 Hz
Voice Coil Diameter 65 mm (2.5 in)
Winding Material Aluminium
Former Material Glass Fibre
Winding Depth 12.5 mm (1/2 in)
Magnetic Gap Depth 9 mm (11/32 in)
Flux Density 1.2 T
Also available in 4 Ω, data upon request
Thiele & Small Parameters 4
Fs 42 Hz
Re 5.8 Ω
Qes 0.3
Qms 4.3
Qts 0.28
Vas 155 dm 3 (5.47 ft 3 )
Sd 522 cm 2 (80.9 in 2 )
η
0 3.8%
X max ± 3 mm
X var ± 4.5 mm
Mms 35 g
Bl 13.3 T·m
Le 1.3 mH
Mounting and Shipping Information
Overall Diameter 316 mm (12.4 in)
Bolt Circle Diameter 296 mm (11.6 in)
Baffle Cutout Diameter 282 mm (11.1 in)
Depth 142 mm (5.6 in)
Flange and Gasket Thickness 16 mm (5/8 in)
Net Weight 5 kg (11 lb)
Shipping Weight 5.9 kg (13 lb)
Shipping Box 380x380x170 mm
(15x15x6.7 in)
1 2 hours test made with continuous pink noise signal (6 dB crest factor) within the
specified range. Power calculated on rated minimum impedance. Loudspeaker in
free air.
2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
3 Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. Average
SPL from 200 to 4000 Hz.
4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon-
ditioning test.
