WIRING DIAGRAMS
A06566

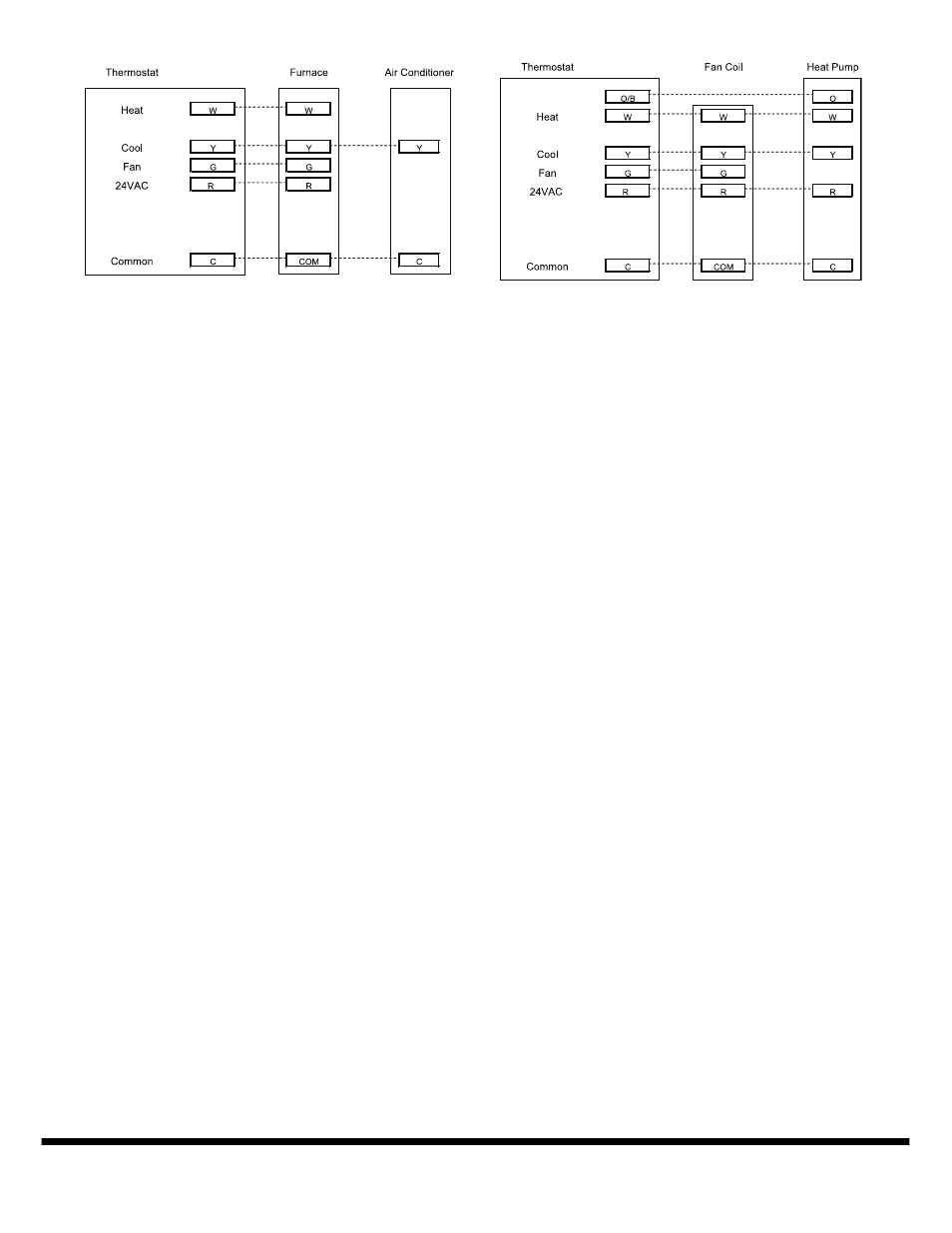

Fig. 1 -- A/C Thermostat Typical Installation
A06567
Fig. 2 -- HP Thermostat Typical Installation
