Bakers Pride ALF-F User Manual
Page 40
Automatic Lift Fryer
Replacement Parts
38

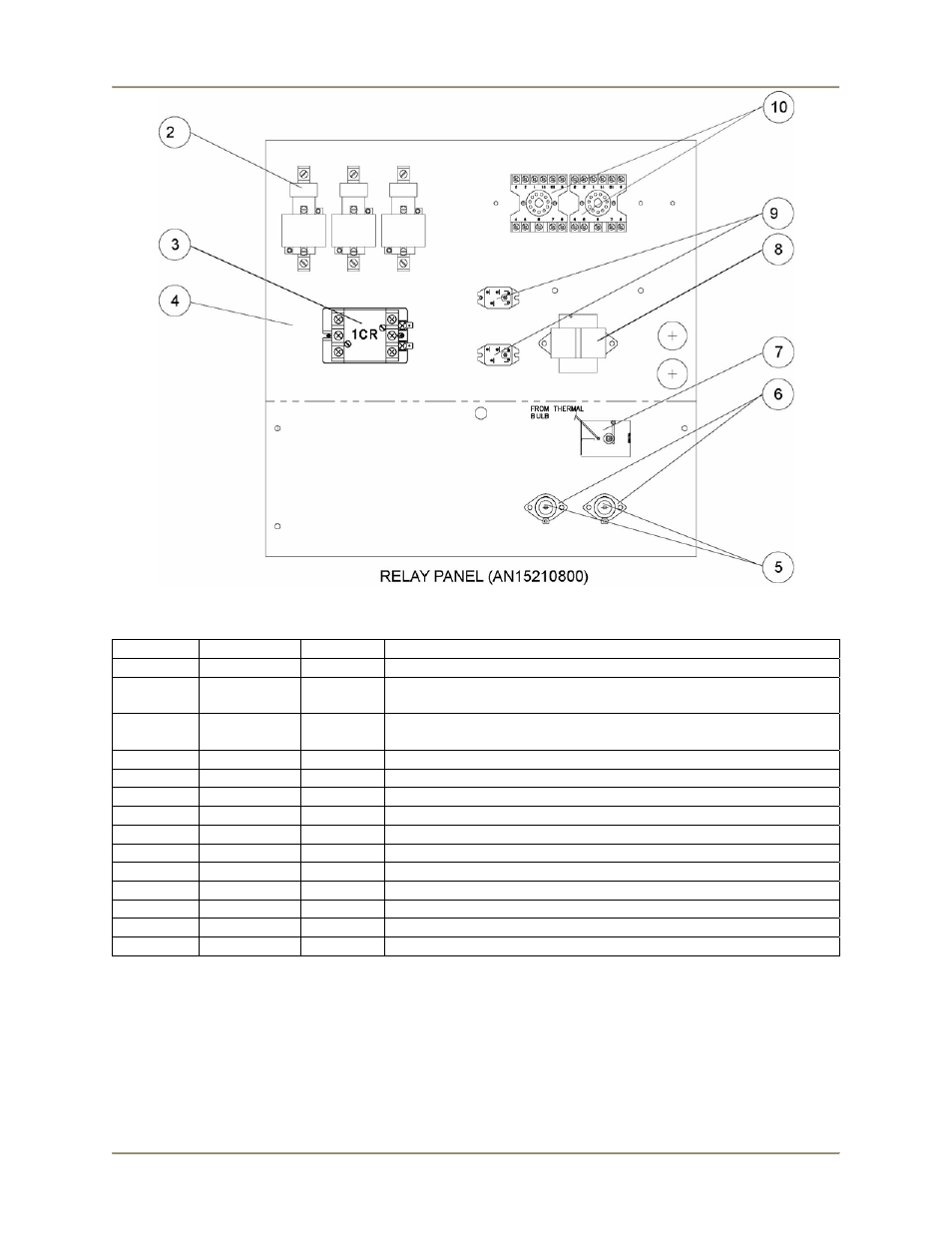

Table 7. Control Panel ALF-FC Parts
ITEM #
PART #
QTY
DESCRIPTION
1
CP0039
1
CONTROLLER, VFD LESS HARNESS
2 R0134
R0134
4
3
RELAY, MERCURY MDI 60NO220A (AN15210900)
RELAY, MERCURY MDI 60NO220A (AN15210800)
3 R0150
R0148
1
1
RELAY, 4 POLE 208-240 60 HZ (AN15210900)
RELAY, 3 POLE 42CF35AG (AN15210800)
4
SB1277
1
CTL PNL WELD ALF-FC
5
F0097
2
FUSE, 15A 300V SC15 TIME DELAY
6
FH0001
2
FUSE HOLDER, 15A 300V HPF-EE
7
T0036
1
THERMOSTAT, HI LIMIT 540 DEG
8
W0054
1
TRANSFORMER ASSY 240V
9
R0044
2
RELAY, X-40, SGL FRYER
10
R0131
2
RELAY. PLUG IN 3PDT 240V COIL
11
S0104
1
SWITCH, RKR DPDT 15A 250V LAMP
12
S0127
1
SWITCH, ROCKER 2P, 3 POS
13
LPFA172
1
RELAY SUPPORT PANEL ALF LPF48
14
N0407
1
DECAL, CONTROL PANEL ALFFC LOG
