B. BARCO Control Manager

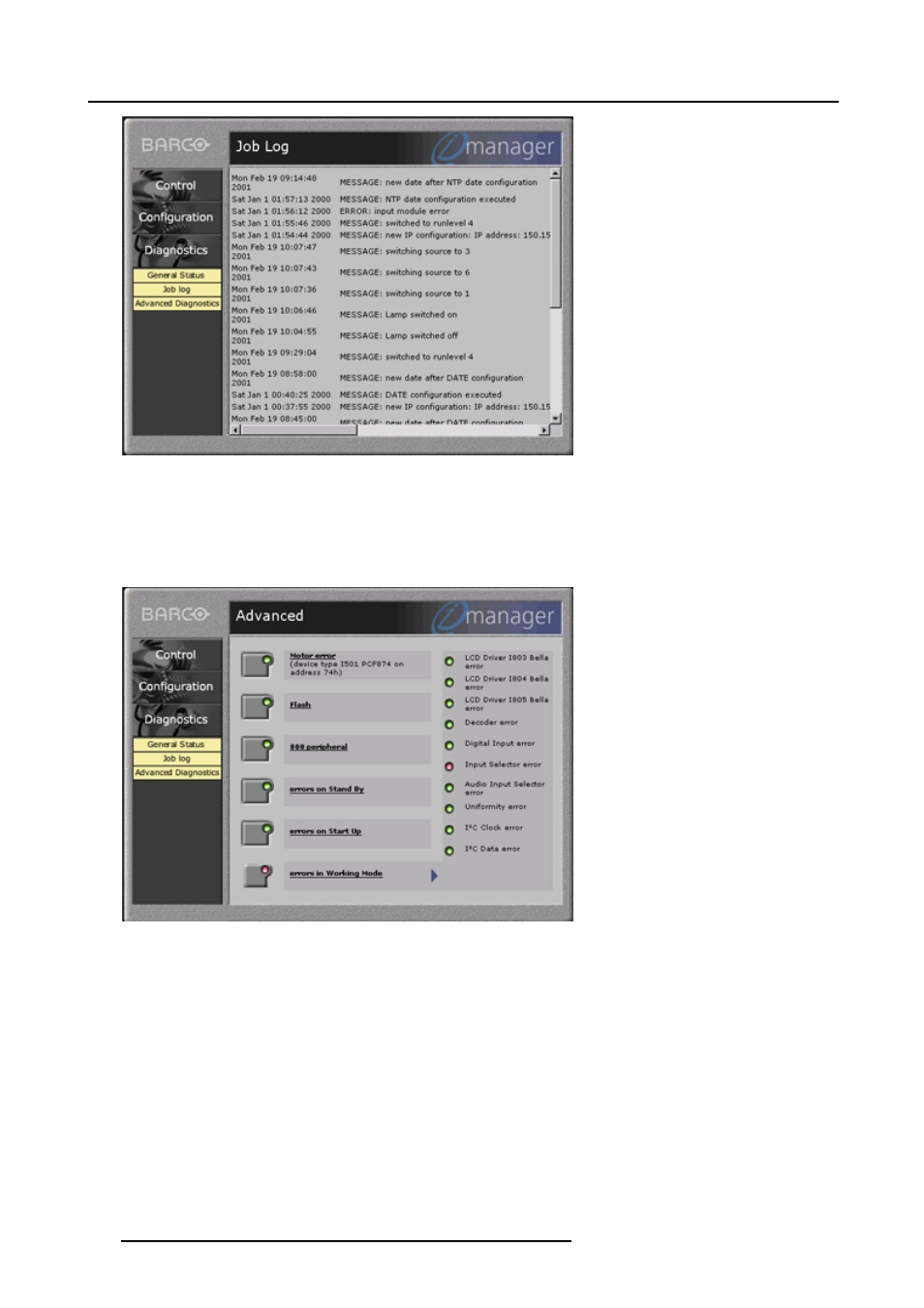

Image B-21
Job log screen
B.6.4 Advanced Diagnostics
Overview
The advanced diagnostics screen gives an overview of errors and warnings on motors, divices, I²C busses, drivers, etc.
Image B-22
Advanced diagnostics screen
When the lights in the buttons are green, no errors and no warnings for this projector at the moment. To see the possible errors or
warnings of an item, click on the button to expand an error list on the right side of the advanced diagnostic screen. The lights before
the items should be green.
When a warning or error occured, one of the lights in the buttons will be red and the error list for that button will be expand on the
right side of the advanced diagnostic screen. The occured error should be indicated by a red light.
