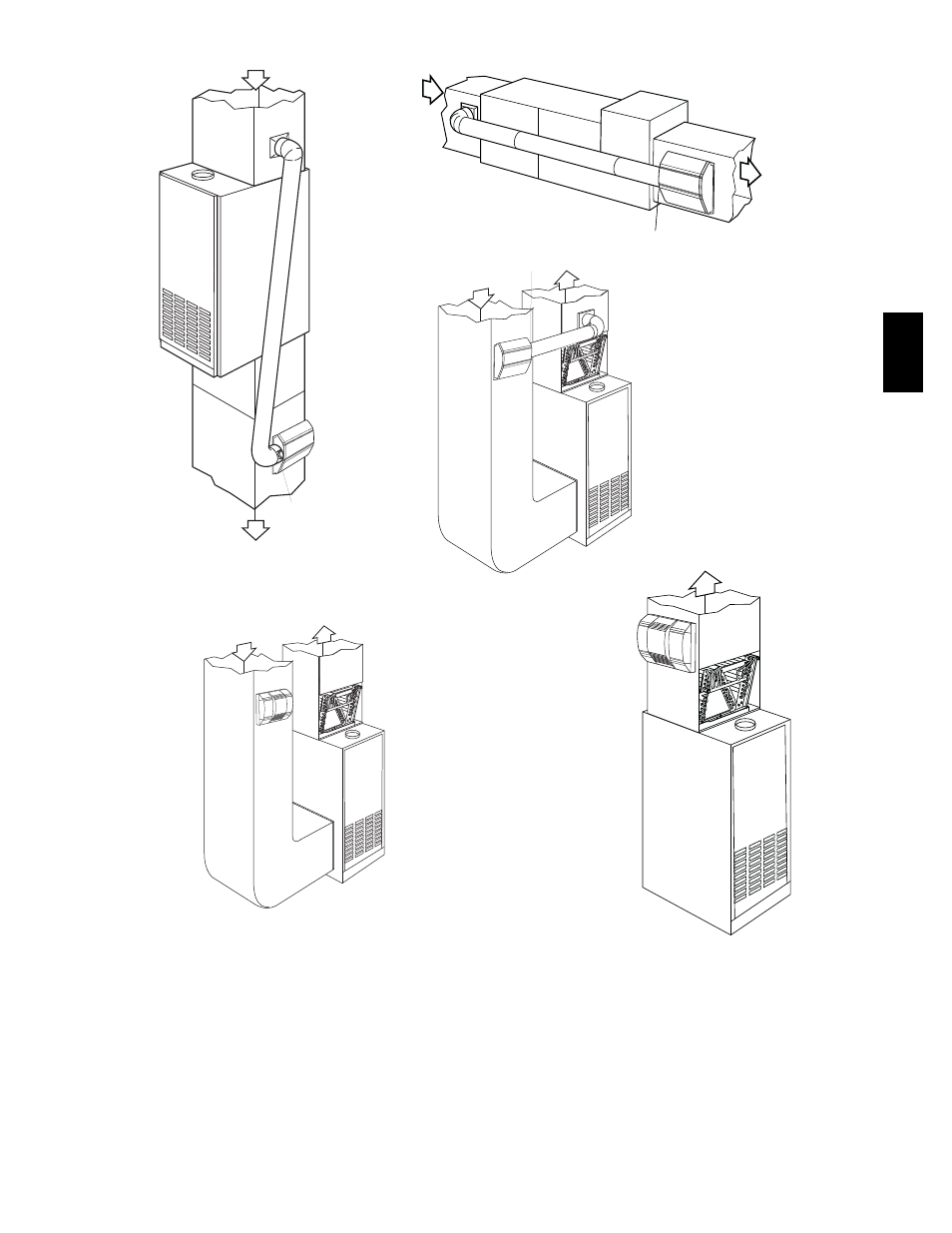

TYPICAL HUMIDIFIER INSTALLATIONS

DOWNFLOW

HORIZONTAL

Built-in Bypass Damper

Built-in Bypass Damper

UPFLOW

UPFLOW

*Note - It is recommended
that hot water be supplied
in this return air application.

*

UPFLOW

Built-in Bypass Damper

A06225
