The RC-53D is an auxiliary remote control panel for Master Room Controllers
1
for
control of A/V equipment in a room.
The RC-53D:
•
Features six front panel, single color, backlit buttons designed in two groups;
one group of two buttons, and another group of four buttons
•
Has a digital volume control adjustment knob
•
Is available as a 2 Gang wall plate for the USA or a 2 Gang wall plate for
Europe
2
•
Does not require a separate power supply
•
Includes an RS-232 serial port
•
Includes two K-NET ports and a USB port for firmware upgrade
•
Features two programmable LCD displays, one for each button group
4
Defining the RC-53D
define the RC-53D front panel.

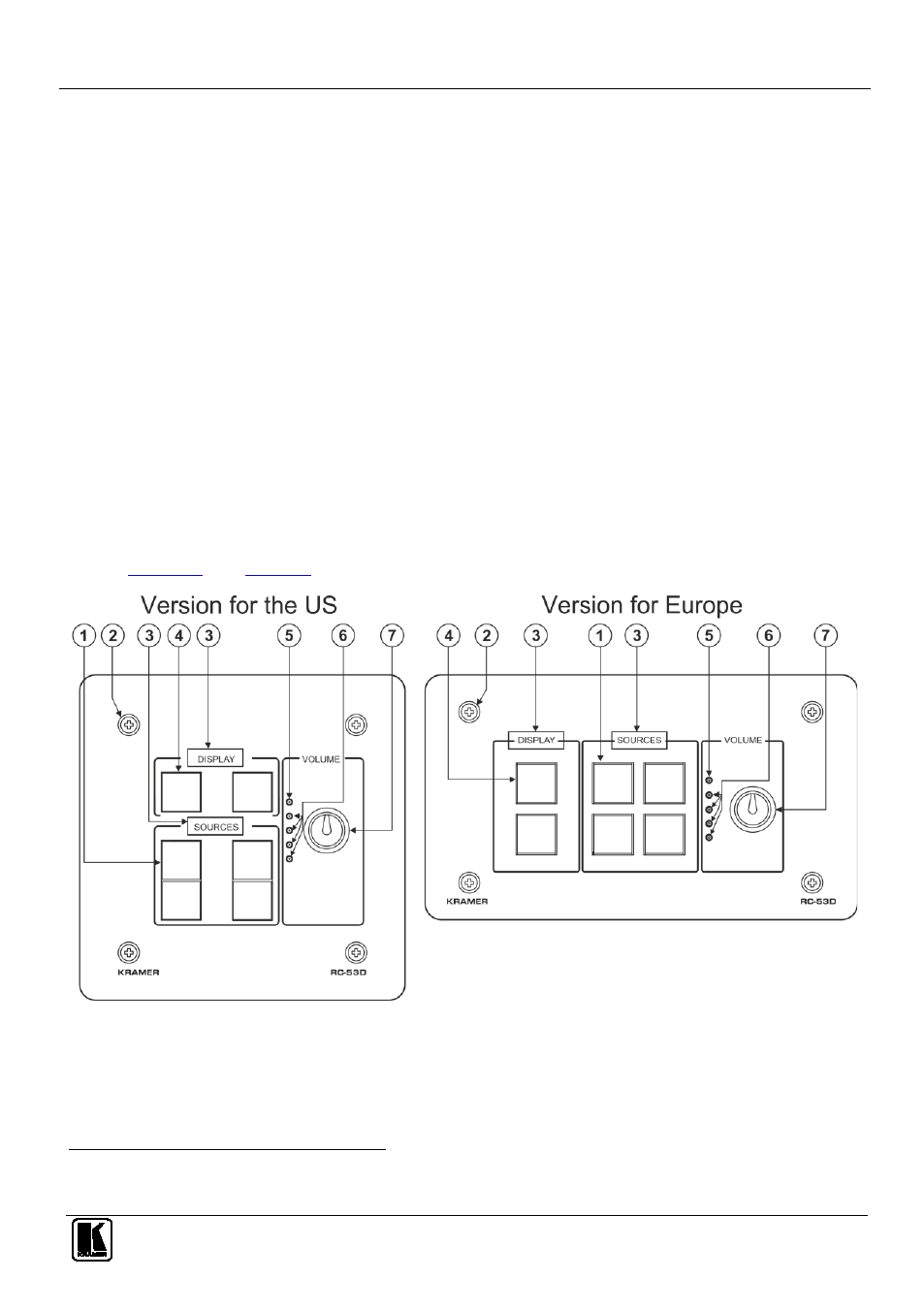

Figure 1: RC-53D K-NET™ Auxiliary Control Panel – Front Panel
1 Such as the Kramer SummitView System or the SL-1 Master Room Controller
2 Available in two height sizes: 8.6cm and 8cm
