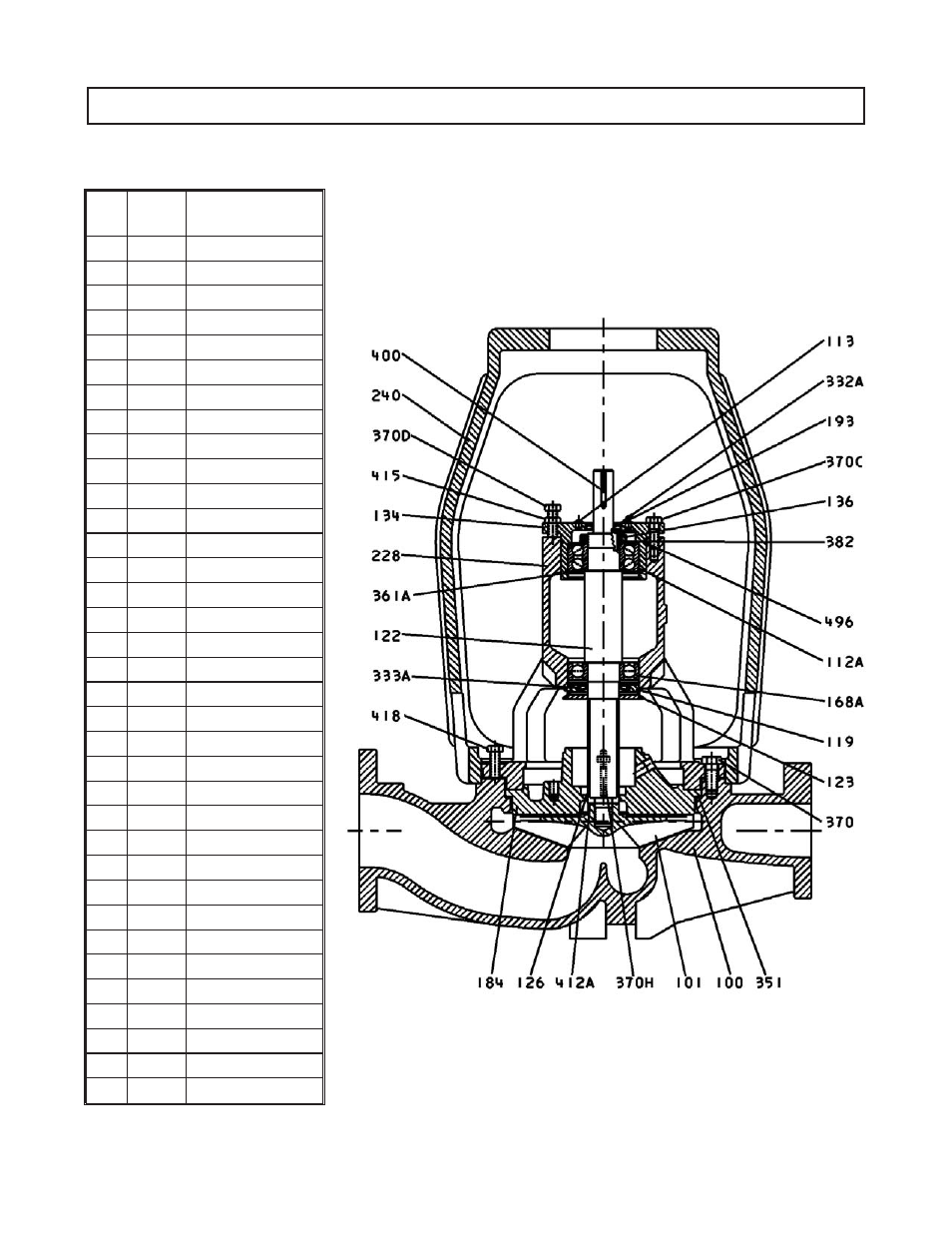

SECTIONAL VIEWS
SPARE AND REPAIR PARTS
ITEM
NO.
QTY./
PUMP
PART NAME
100 1 CASING
101 1 IMPLR W/O-RG
112 1* BALL BRG OB
113 2 GRS RLF FTG
119 1 BRG END COV
122 1* SHAFT ASSY
123 1 DEFLECTOR
126 1* SHAFT SLEEVE
134 1 BRG HOUSING
136 1* BRG LOCKNUT
168 1* BALL BRG 1B
184 1 SB COVER SA
193 2 GREASE FTG
228 1 FRAME
240 1 MOTOR SUPPORT
250 1* GLD MECH SEAL
332 1 OIL SEAL
333 1 OIL SEAL
351 1 GASKET CASE
353 4 GLAND STUD
355 4 HEX NUT
360Q 1 GASKET - MS
361A 1 RTNG RING
370 4-24 H CAP SCREW
370C 3 H CAP SCREW
370D 3 H TAP BOLT
370H 2 STUD
372J 4 H CAP SCREW
382 1* BRG LK WSHR
383 1* MECH SEAL
412A 1 O-RING IMPLR
415 3 HEX NUT (370D)
418 2 JACKING BOLT
469D 1 ROLL PIN
496 1 O-RING
* RECOMMENDED SPARES
Fig. 17
