Maintenance

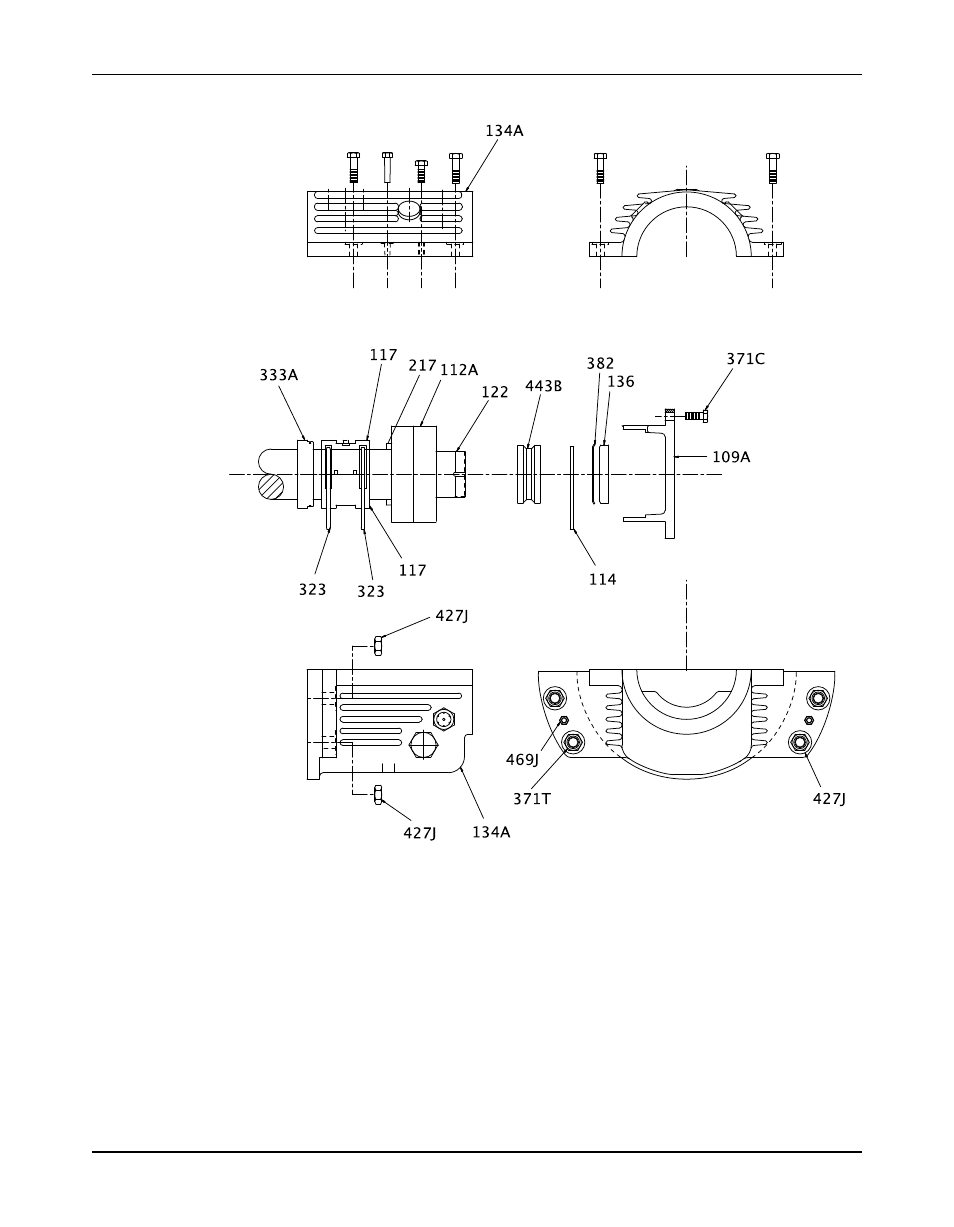

Disassemble the thrust end (sleeve/ball bearing pumps)

1. Remove the outboard end cover (109A) by removing the end cover bolts (371C).
2. Remove the upper half of the bearing housing (134A) from the lower half:

a) Remove the dowel pins between the upper and lower halves of the bearing housing

(134A).

b) Remove the hex head screws that connect the upper and lower halves of the bearing

housing (134A).

c) Tighten the jackscrews in order to separate the housing halves.
