AZEK Stair Rail - Manual (Page 4)

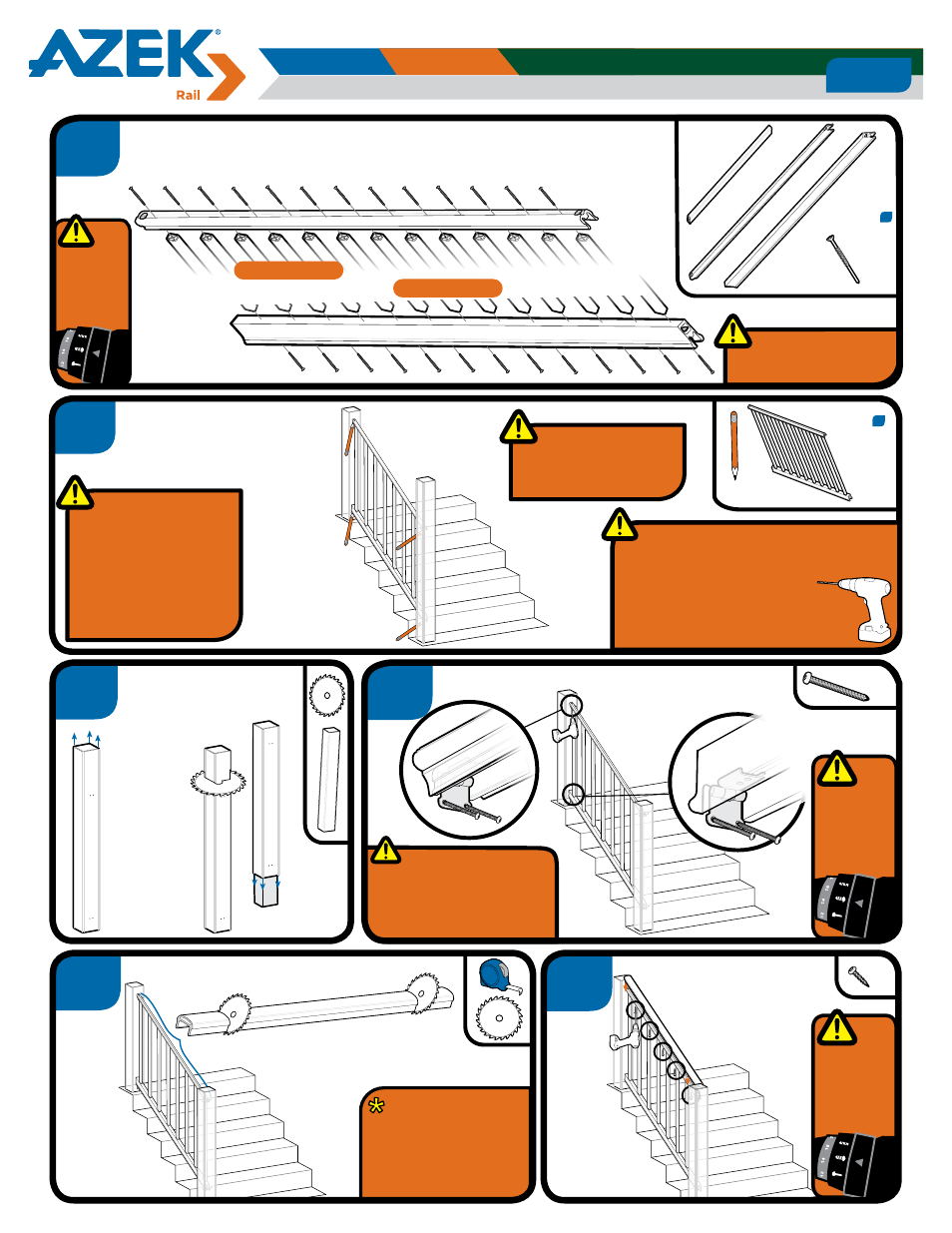

STAIR RAILING INSTALLATION GUIDELINES for
AZEK Premier AZEK Trademark AZEK Reserve
Page 4
IMPORTANT
Make sure that the
DRIVE TOOL/DRILL
is configured or set
to use the SCREW
setting when
driving and/or
tightening all
FASTENERS.
Cutting the handrail
slightly longer than
the Top Retainer will
provide a tighter fit
and more accurate
appearance.
Tip
Rail
assemblies
from step # 8
Assemble Rail Section: Fasten Balusters
To Top Retainer & Bottom Rail 12
Mark and Drill
for Brackets
Cut Post
Sleeves
Drill with 5 / 16 ”
Drill Bit
14
13 Rail assembly
from step #
10
Mark Top
Retainer
Brackets &
Bottom Rail
Brackets
3
16
WARNING:
Be sure to check local
code requirements for
proper bottom rail
location and top rail
height and be sure that
you have the proper
height balusters to meet
those requirements.
For best results, use
a center support block
on stair section 4ft in
length or longer.
Do not over-torque
screws when fastening
balusters.
Important:
Be sure to only drill through Post Sleeve.
Be careful not to mar Balusters with Drill
Chuck. Drill holes for brackets
at the same angle that
screws will be installed.
Cut
Post Sleeve
minimum
2” longer
than
desired
railing
height
X 8
Do not over torque screws
when fastening bracket to
posts as this may cause
post sleeves to crack
Important:
15
Attach Rail Section to Posts
16
Measure & Cut Handrail
X 5
Attach Handrail
to Top Retainer
17
Now Drill
with 3 / 16 ” Drill Bit
Top Retainer 1st
Bottom Rail 2nd
IMPORTANT
Make sure that the
DRIVE TOOL/DRILL
is configured or set
to use the SCREW
setting when driving
and/or tightening all
FASTENERS.
IMPORTANT
Make sure that the
DRIVE TOOL/DRILL
is configured or set
to use the SCREW
setting when driving
and/or tightening all
FASTENERS.
© 2013 AZEK Building Products. All rights reserved
