To Attach Tabletop to Base Frame
This base can be used with 42", 48", or 60" wide top.
Inspect tabletop carefully and choose which side you
want facing up for use. This side should be placed
face-down on a carpeted or otherwise protected floor to
avoid scratches.
Carefully turn base frame assembly upside down and
place on tabletop. This may require two people.

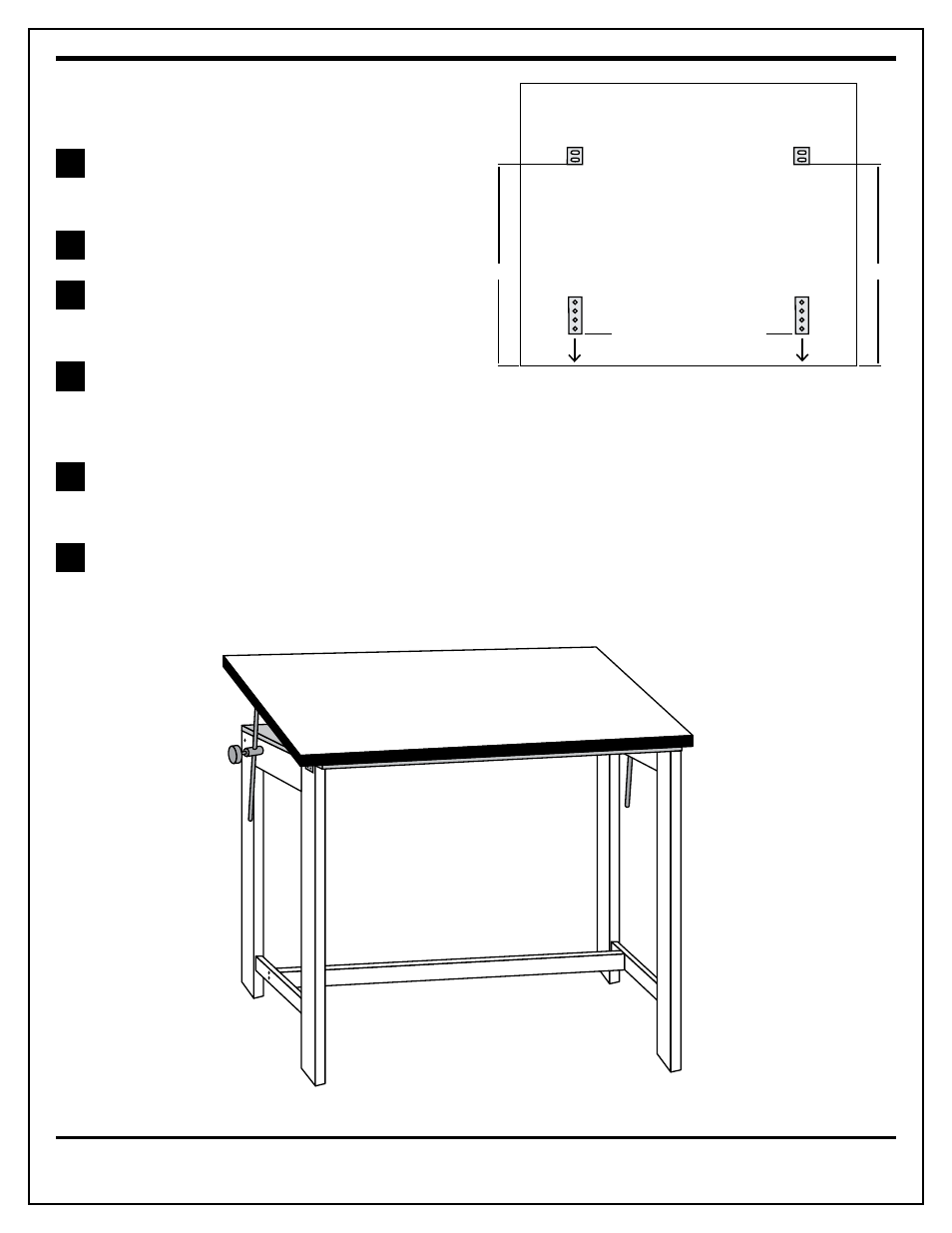

Position base assembly so that front hinges are 1½"
from the front edge of the tabletop, as shown in diagram.
Hinges should also be centered evenly between left and
right sides of tabletop.
Adjust and position rear mounting brackets so they are
19½" from the front edge of the table top and centered
evenly between left and right sides, as shown in diagram.
Brackets should sit flush on the tabletop surface with the
rods facing straight up and down.
Mark locations of all 12 holes with a dark pencil or
marker and then use an awl or drill with 1 ⁄
16
" bit to
make starter holes. Use care not to drill all the way
through the tabletop.
Attach front hinges and rear brackets to tabletop using
¾" Phillips screws ( I ). Tighten securely but use care not
to over tighten and strip.
10
11
12
13
14
15
19½" 19½"
1½" 1½"
Front Edge
