TH146-P-U

400-280-010-B 5/24/07 1/12

TH146-P-U

Installation Guide

Programmable H/C Controller

The TH146-P-U programmable controller can be used with any of
the following heating/cooling systems:

The following devices can be connected to the controller:

air recirculation fan

humidifier

dehumidifier or air exchanger

dual-register meter (dual energy)

remote control device (for the unoccupied mode)

• CT280-3H3C control module

• TH146-P console with two wall anchors and mounting screws

• AC144-03 outdoor temperature sensor (3 m or 10 ft) with mount-

ing clip (see section 2.7)

• RC845 relay (see section 2.4)

• AC146-410 plenum temperature sensor (see section 2.8)

• CT241 telephone controller (see section 2.10)

Configure the control module according to your type of heating/cool-
ing system using DIP switches on the back of the module.

Install the control module near the heating/cooling system, away
from any heat source.

Install the console in a central location. Avoid locations with air
drafts (e.g., top of staircase or air outlet) or stagnant air (behind a
door). Do not install the console on a wall hiding air ducts nor
expose it to direct sunlight.

NOTE: If this controller replaces an old thermostat, any two of the
wires that were connected to the thermostat can be used to connect
the user console to the control module. The maximum wiring length
is 30 m (100 ft).

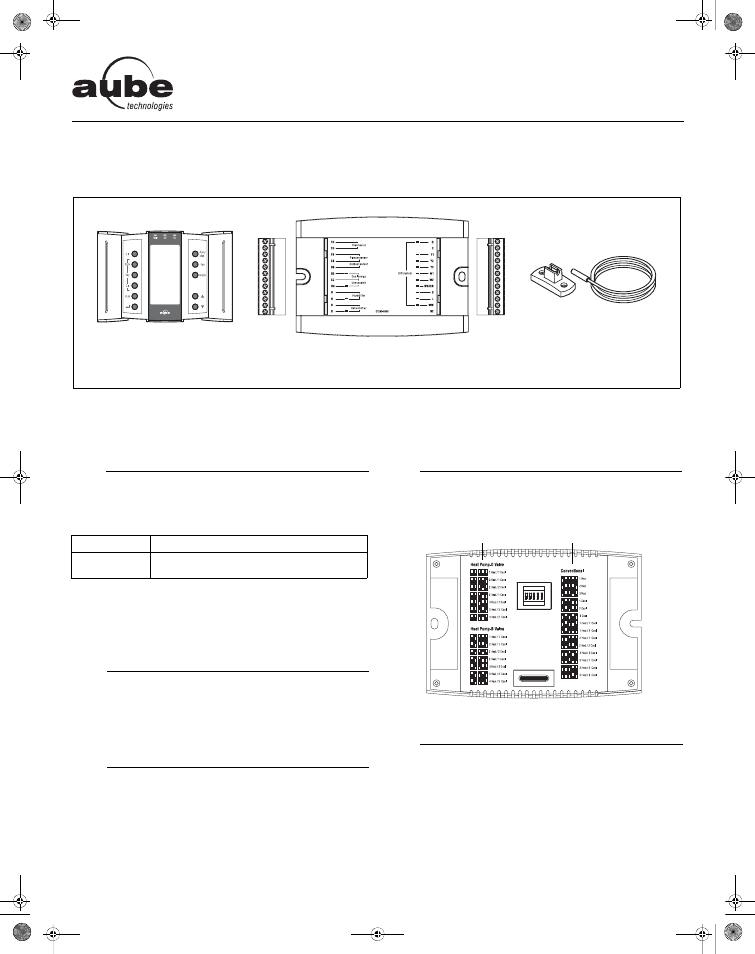

CT280-3H3C Control Module

TH146-P User Console

AC144-03 Outdoor
Temperature Sensor

Removable
Connector *

Removable
Connector *

* To remove a connector from the control module, pry with a screwdriver.

1. Introduction

1.1

Applications

Heat pump

1H1C, 2H1C, 2H2C, 3H1C, 3H2C, 3H3C, 4H2C

HVAC

1H, 2H, 3H, 1C, 2C, 3C, 1H1C, 1H2C, 2H1C, 2H2C,
2H3C, 3H1C, 3H2C, 3H3C

1.2

Supplied Parts

1.3

Accessories

2. Installation

2.1

Control Module (CT280-3H3C)

2.2

User Console (TH146-P)

Heat pump

HVAC
